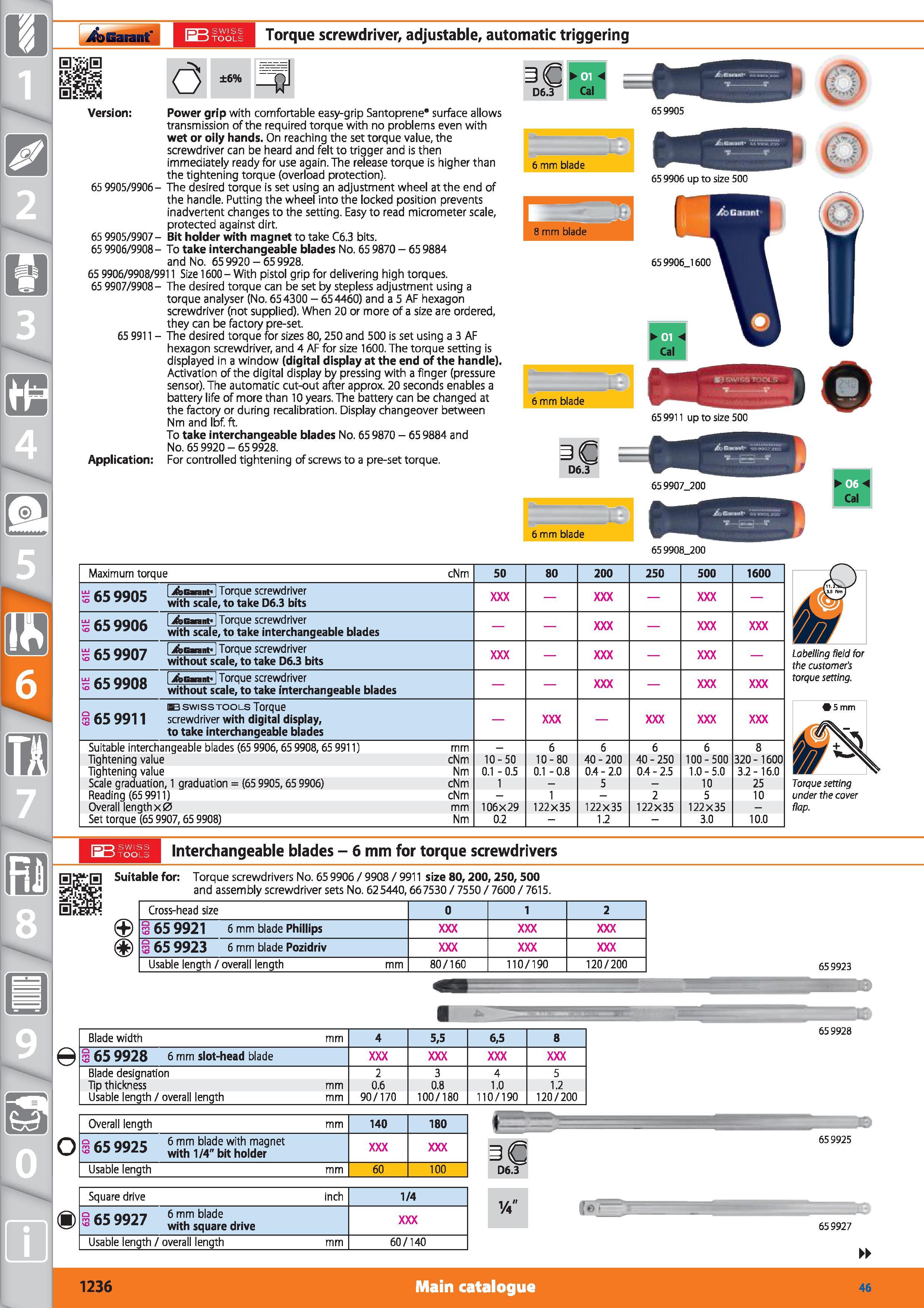

i&>Gaiant' 1 1 > SWISS IO TOOLS Torque screwdriver, adjustable, automatic triggering (3 ±6% B 1 D6.3 Cal Version Power grip with comfortable easy-grip Santoprene" surface allows transmission of the required torque with no problems even with wet or oily hands. On reaching the set torque value, the screwdriver can be heard and felt to trigger and is then immediately ready for use again. The release torque is higher than the tightening torque (overload protection). 65 9905/9906- The desired torque is set using an adjustment wheel at the end of the handle. Putting the wheel into the locked position prevents inadvertent changes to the setting. Easy to read micrometer scale, protected against dirt. 65 9905/9907 - Bit holder with magnet to take C6.3 bits. 65 9906/9908 - To take interchangeable blades No. 65 9870 - 65 9884 and No. 659920 - 659928. 65 9906/9908/9911 Size 1600-With pistol grip for delivering high torques. 65 9907/9908- The desired torque can be set by stepless adjustment using a torque analyser (No. 654300 - 654460) and a 5 AF hexagon screwdriver (not supplied). When 20 or more of a size are ordered, they can be factory pre-set. 65 9911 - The desired torque for sizes 80,250 and 500 is set using a 3 AF hexagon screwdriver, and 4 AF for size 1600. The torque setting is displayed in a window (digital display at the end of the handle). Activation of the digital display by pressing with a finger (pressure sensor). The automatic cut-out after approx. 20 seconds enables a battery life of more than 10 years. The battery can be changed at the factory or during recalibration. Display changeover between Nm and Ibf. ft. To take interchangeable blades No. 65 9870 - 65 9884 and No. 65 9920-65 9928. Application For controlled tightening of screws to a pre-set torque. 65 9908_200 Maximum torque cNm 50 80 200 250 500 1600 e. c nanr 1 Amnf 1 Torque screwdriver 03 wvd wjth scaje to (ake D6 3 bjts m nnnfi 1 Amif 1 Torque screwdriver 10 with scale, to take interchangeable blades m c nnr 7 jfbcanmt' Torque screwdriver 03 "u/ without scale, to take D6.3 bits uj i- Anno Asnnt 1 Torque screwdriver 10 without scale, to take interchangeable blades IE swiss tools Torque 65 9911 screwdriver with digital display, to take interchangeable blades Suitable interchangeable blades (65 9906,65 9908,65 9911) mm - 6 6 6 6 8 Tightening value cNm 10-50 10-80 40 - 200 40 - 250 100-500 320-1600 Tightening value Nm 0.1 - 0.5 0.1 -0.8 0.4-2.0 0.4-2.5 1.0-5.0 3.2-16.0 Scale graduation, 1 graduation (65 9905,65 9906) cNm 1 5 10 25 Reading (65 9911) cNm 1 2 5 10 Overall length x0 mm 106X29 122x35 122x35 122x35 122x35 - Set torque (65 9907,65 9908) Nm 0.2 - 1.2 - 3.0 10.0 Labelling field for the customer's torque setting. Torque setting under the cover flap. Interchangeable blades - 6 mm for torque screwdrivers Suitable for Torque screwdrivers No. 65 9906 / 9908 / 9911 size 80,200,250,500 and assembly screwdriver sets No. 625440,667530 / 7550 / 7600 / 7615. Cross-head size 0 1 2 65 9921 6 mm blade Phillips 3 65 9923 6 mm blade Pozidriv Usable length / overall length mm 80/160 110/190 120/200 659923 (9 Blade width mm 4 5,5 6,5 8 3 65 9928 6 mm slot-head blade Blade designation 2 3 4 5 Tip thickness mm 0.6 0.8 1.0 1.2 Usable length / overall length mm 90/170 100/180 110/190 120/200 65 9928 Overall length mm 140 180 659925 6 mm blade with magnet with 1/4" bit holder Usable length mm 60 100 Square drive inch 1/4 65 9927 6 mm blade with square drive Usable length / overall length mm 60/140 659925 65 9927 1236 Main catalogue Hoffmann Group 46
