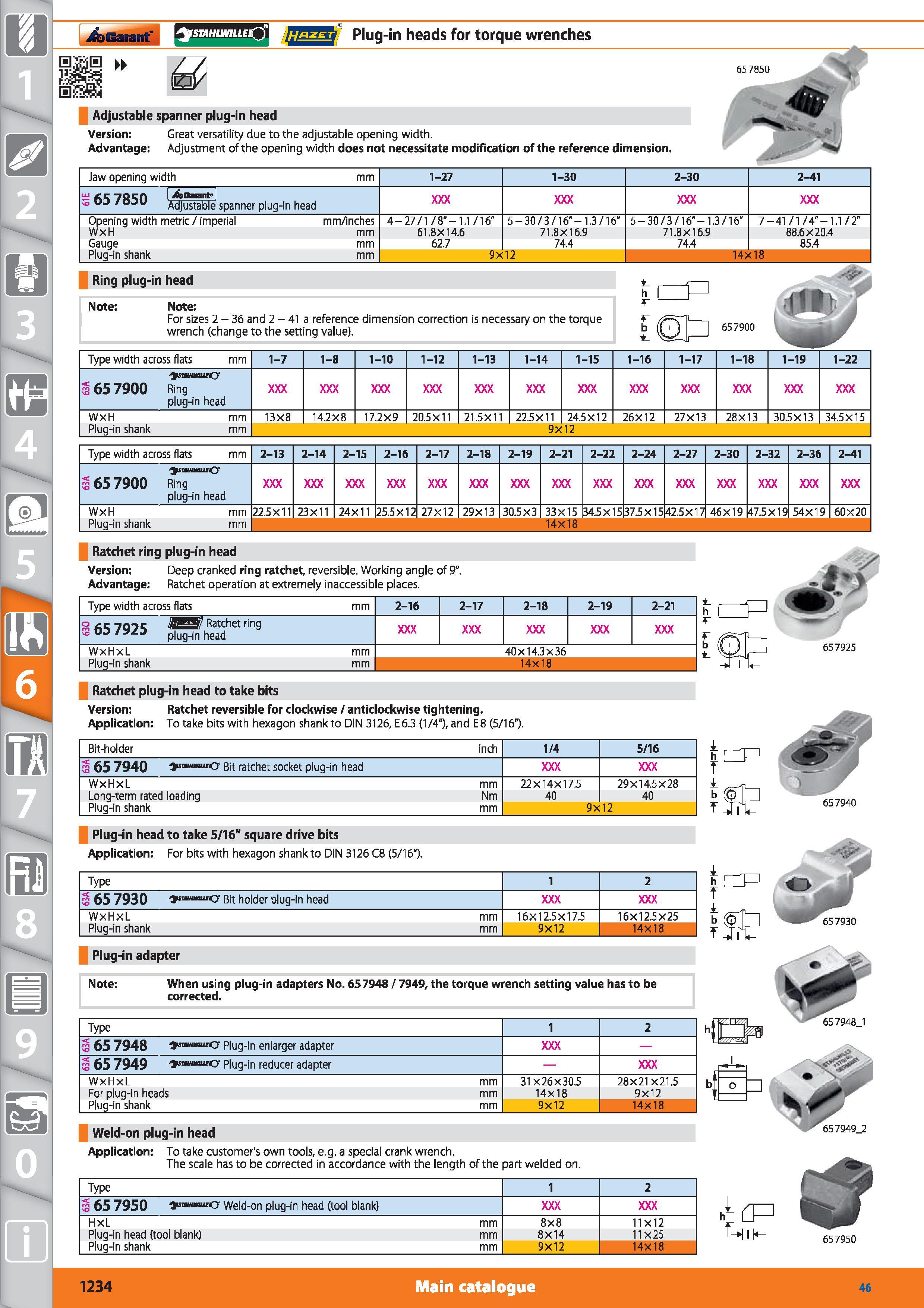

1 JibGarant' S istahlwilleQ Plug-in heads for torque wrenches 65 7850 Adjustable spanner plug-in head Version Great versatility due to the adjustable opening width. Advantage Adjustment of the opening width does not necessitate modification of the reference dimension. Jaw opening width mm 1-27 1-30 2-30 2-41 /0,,u Adjustable spanner plug-in head Opening width metric / imperial mm/inches 4-27/1/8"- 1.1/16 5 30/3/16" 1.3/16" 5 30/3/16" 13/16' 7 41/1/4" 1.1/2” WxH mm 61.8x14.6 71.8x16.9 71.8x16.9 88.6X20.4 Gauge mm 62.7 74.4 74.4 85.4 Plug-in shank mm 9x12 14x18 Ring plug-in head Note Note For sizes 2-36 and 2 - 41 a reference dimension correction is necessary on the torque wrench (change to the setting value). 657900 Type width across flats mm 1-7 1-8 1-10 1-12 1-13 1-14 1-15 1-16 1-17 1-18 1-19 1-22 s 65 7900 Ring plug-in head WxH mm 13x8 14.2x8 17.2x9 20.5X11 21.5X11 22.5X11 24.5X12 26X12 27X13 28X13 30.5X13 34.5X15 Plug-in shank mm 9X12 Type width across flats mm 2-13 2-14 2-15 2-16 2-17 2-18 2-19 2-21 2-22 2-24 2-27 2-30 2-32 2-36 2-41 a 65 7900 Ring plug-in head WxFI mm 22.5X11 23X11 24X11 25.5X12 27X12 29X13 30.5X3 33X15 34.5X15 37.5X15 42.5X17 46X19 47.5X19 54X19 60X20 Plug-in shank mm to Ratchet ring plug-in head Version Deep cranked ring ratchet, reversible. Working angle of 9°. Advantage Ratchet operation at extremely inaccessible places. Type width across flats mm 2-16 2-17 2-18 2-19 2-21 o f-r 7Q-)r Ratchet ring 03 /VZO p ug_in head WxHxL mm 40x14.3x36 Plug-in shank mm 14x18 j 1 65 7925 Ratchet plug-in head to take bits Version Ratchet reversible for clockwise / anticlockwise tightening. Application To take bits with hexagon shank to DIN 3126, E6.3 (1/4"), and E8 (5/16"). Bit-holder inch 1/4 5/16 3 65 7940 Bit ratchet socket plug-in head WxHxL mm 22x14x17.5 29x14.5x28 Long-term rated loading Nm 40 40 Plug-in shank mm 9x12 Plug-in head to take 5/16" square drive bits Application For bits with hexagon shank to DIN 3126 C8 (5/16"). Type 1 2 3 65 7930 Bit holder plug-in head WxHxL mm 16X12.5X17.5 16X12.5X25 Plug-in shank mm 9X12 14X18 Plug-in adapter Note When using plug-in adapters No. 657948 / 7949, the torque wrench setting value has to be corrected. Type 1 2 3 65 7948 p ug-jn enlarger adapter 3 65 7949 ““““O Plug-in reducer adapter WxHxL mm 31x26x30.5 28x21x21.5 For plug-in heads mm 14x18 9x12 Plug-in shank mm 9x12 14x18 Weld-on plug-in head Application To take customer's own tools, e.g. a special crank wrench. The scale has to be corrected in accordance with the length of the part welded on. Type 1 2 3 65 7950 9 Weld-on plug-in head (tool blank) HxL mm 8X8 11X12 Plug-in head (tool blank) mm 8X14 11X25 Plug-in shank mm 9X12 14X18 65 7950 1234 Main catalogue Hoffmann Group 46
