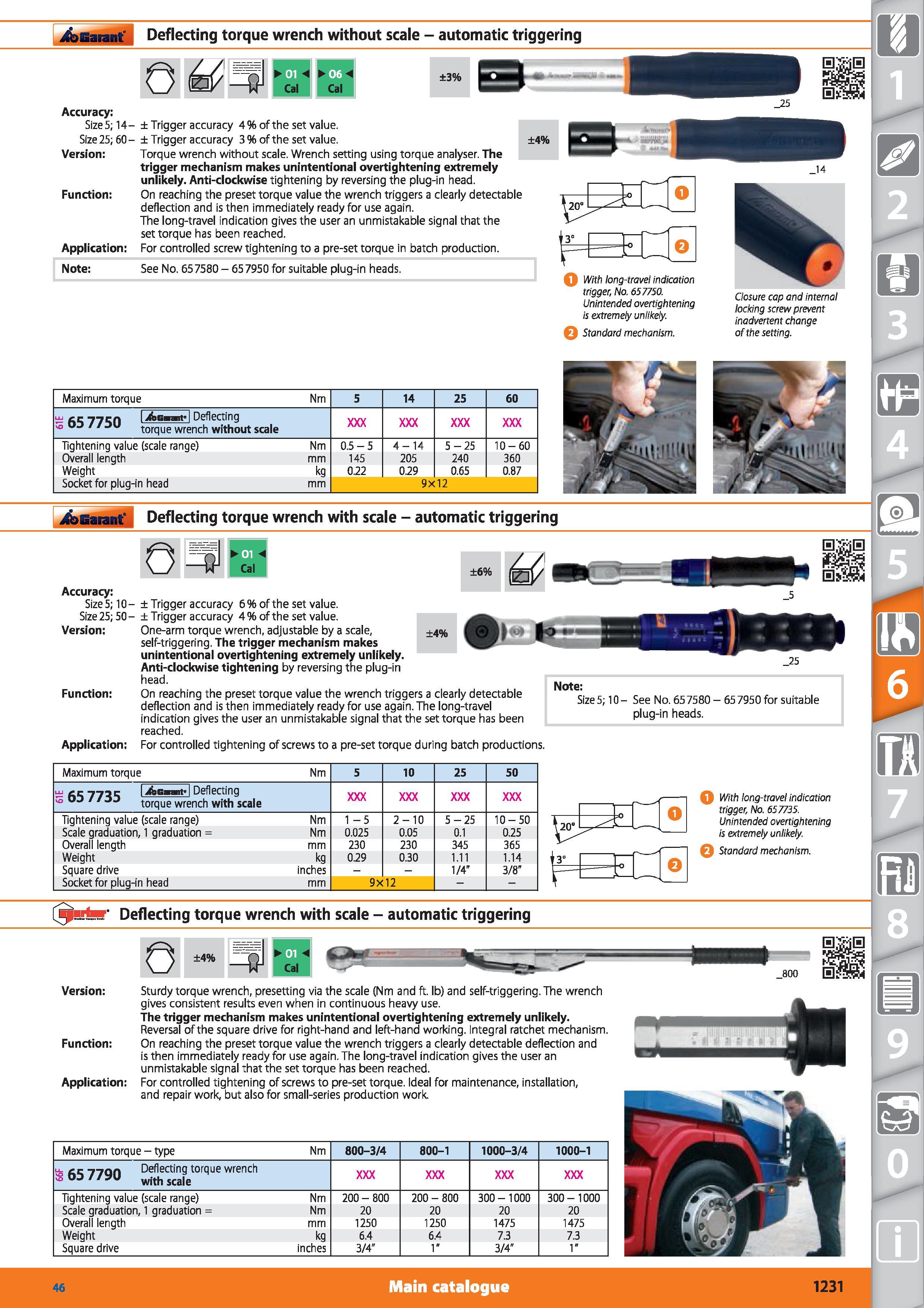

Garant Deflecting torque wrench without scale - automatic triggering ±3% Accuracy Size5; 14 ± Trigger accuracy 4%of the set value. ± Trigger accuracy 3% of the set value. Torque wrench without scale. Wrench setting using torque analyser. The trigger mechanism makes unintentional overtightening extremely unlikely. Anti-clockwise tightening by reversing the plug-in head. On reaching the preset torque value the wrench triggers a clearly detectable deflection and is then immediately ready for use again. The long-travel indication gives the user an unmistakable signal that the set torque has been reached. Application For controlled screw tightening to a pre-set torque in batch production. Size 25; 60 Version Function Note See No. 65 7580 - 65 7950 for suitable plug-in heads. Q With long-travel indication trigger, No. 657750. Unintended overtightening is extremely unlikely. Standard mechanism. Closure cap and internal locking screw prevent inadvertent change of the setting. Maximum torque Nm 5 14 25 60 laj 77 fl 1 1 Deflectinq torque wrench without scale Tightening value (scale range) Nm 0.5-5 4-14 5-25 10-60 Overall length mm 145 205 240 360 Weight kg 0.22 0.29 0.65 0.87 Socket for plug-in head mm 9x12 fnij g Deflecting torque wrench with scale - automatic triggering Accuracy Size 5; 10 ± Trigger accuracy 6% of the set value. ± Trigger accuracy 4% of the set value. One-arm torque wrench, adjustable by a scale, self-triggering. The trigger mechanism makes unintentional overtightening extremely unlikely. Anti-clockwise tightening by reversing the plug-in head. On reaching the preset torque value the wrench triggers a clearly detectable deflection and is then immediately ready for use again. The long-travel indication gives the user an unmistakable signal that the set torque has been reached. Application For controlled tightening of screws to a pre-set torque during batch productions. Size 25; 50 Version Function Note Size 5; 10- See No. 657580-plug-in heads. 657950 for suitable Maximum torque Nm 5 10 25 50 l±j (ifoomnt Deflectinq vo 03 //33 torque wrench with scale Tightening value (scale range) Nm 1 -5 2-10 5-25 10-50 Scale graduation, 1 graduation Nm 0.025 0.05 0.1 0.25 Overall length mm 230 230 345 365 Weight kg 0.29 0.30 1.11 1.14 Square drive inches 1/4" 3/8" Socket for plug-in head mm 9X12 Q With long-travel indication trigger, No. 657735. Unintended overtightening is extremely unlikely. Q Standard mechanism. Deflecting torque wrench with scale - automatic triggering 8 ±4% a Version Function Application Sturdy torque wrench, presetting via the scale (Nm and ft. lb) and self-triggering. The wrench gives consistent results even when in continuous heavy use. The trigger mechanism makes unintentional overtightening extremely unlikely. Reversal of the square drive for right-hand and left-hand working. Integral ratchet mechanism On reaching the preset torque value the wrench triggers a clearly detectable deflection and is then immediately ready for use again. The long-travel indication gives the user an unmistakable signal that the set torque has been reached. For controlled tightening of screws to pre-set torque. Ideal for maintenance, installation, and repair work, but also for small-series production work. Maximum torque - type Nm 800-3/4 800-1 1000-3/4 1000-1 u- tc -i-jnn Deflecting torque wrench with scale Tightening value (scale range) Nm 200 - 800 200 - 800 300-1000 300-1000 Scale graduation, 1 graduation Nm 20 20 20 20 Overall length mm 1250 1250 1475 1475 Weight kg 6.4 6.4 7.3 7.3 Square drive inches 3/4" 1" 3/4" 1" Main catalogue Hoffmann Group 46 1231
