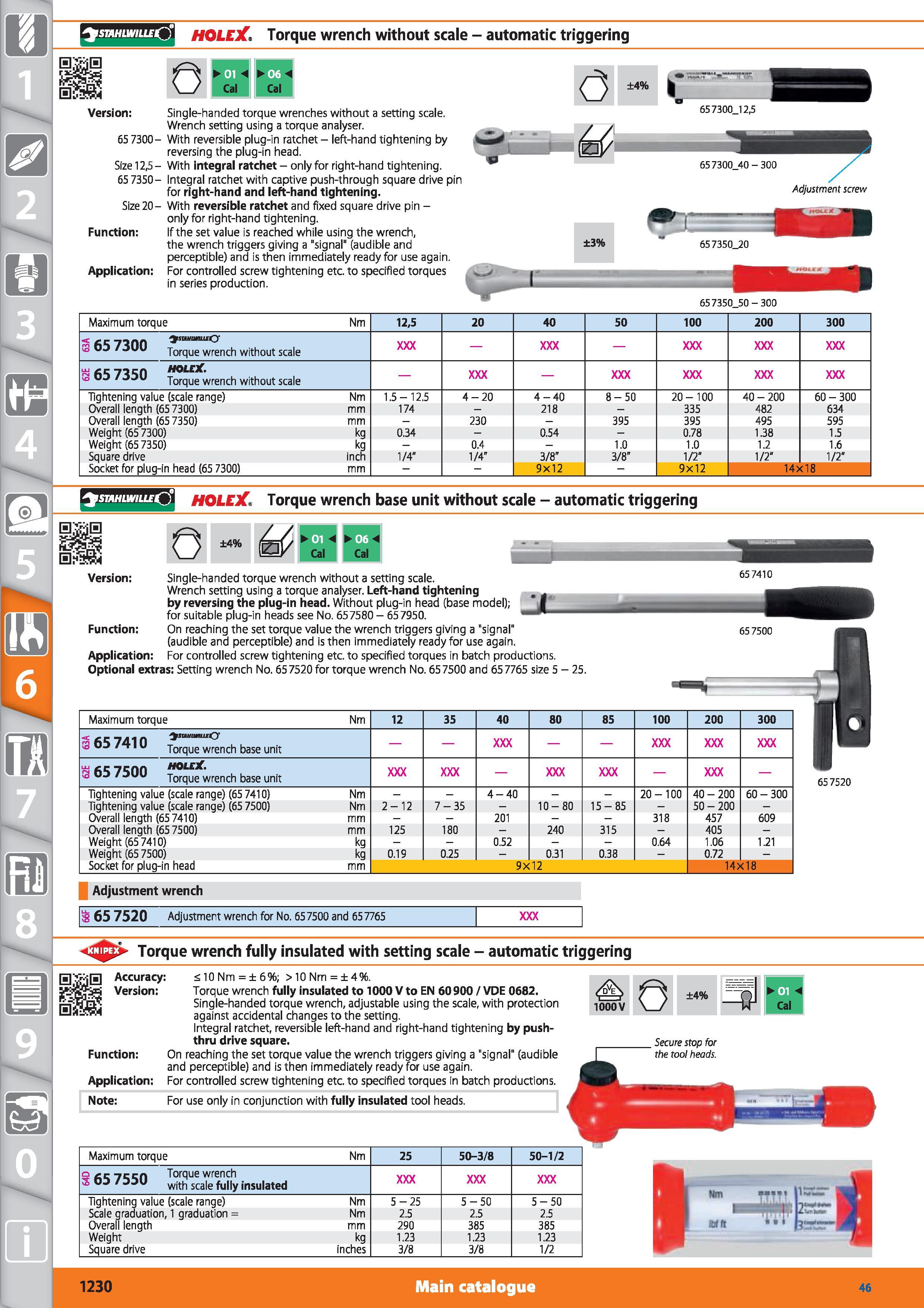

stahlwilleC) HOLEJCTorque wrench without scale - automatic triggering 0 v v Version Single-handed torque wrenches without a setting scale. Wrench setting using a torque analyser. 65 7300- With reversible plug-in ratchet - left-hand tightening by reversing the plug-in head. Size 12,5- With integral ratchet - only for right-hand tightening. 65 7350- Integral ratchet with captive push-through square drive pin for right-hand and left-hand tightening. Size 20- With reversible ratchet and fixed square drive pin -only for right-hand tightening. Function If the set value is reached while using the wrench, the wrench triggers giving a "signal" (audible and perceptible) and is then immediately ready for use again. Application For controlled screw tightening etc. to specified torques in series production. Adjustment screw Maximum torque Nm 12,5 20 40 50 100 200 300 3 as 7 nn (3 03 'jUU Torque wrench without scale si as 7 sn holex. 03 JJU Torque wrench without scale Tightening value (scale range) Nm 1.5-12.5 4-20 4-40 8-50 20-100 40 - 200 60 - 300 Overall length (65 7300) mm 174 218 335 482 634 Overall length (65 7350) mm 230 395 395 495 595 Weight (65 7300) kg 0.34 - 0.54 - 0.78 1.38 1.5 Weight (65 7350) kg 0.4 1.0 1.0 1.2 1.6 Square drive inch 1/4" 1/4" 3/8" 3/8" 1/2" 1/2" 1/2" Socket for plug-in head (65 7300) mm 9x12 - 9x12 14x18 STAHLWILLEt HOLEX Torque wrench base unit without scale - automatic triggering ±4% H < E < \J (O' Cal Cal Version Single-handed torque wrench without a setting scale. Wrench setting using a torque analyser. Left-hand tightening t by reversing the plug-in head. Without plug-in head (base model); l for suitable plug-in heads see No. 657580 - 657950. Function On reaching the set torque value the wrench triggers giving a "signal" (audible and perceptible) and is then immediately ready for use again. Application For controlled screw tightening etc. to specified torques in batch productions. Optional extras Setting wrench No. 65 7520 for torque wrench No. 65 7500 and 65 7765 size 5-25. 65 7410 65 7500 Maximum torque Nm 12 35 40 80 85 100 200 300 Si 74.1 n Torque wrench base unit m tze npnn HQLElC. 3 Torque wrench base unit Tightening value (scale range) (65 7410) Nm 4-40 20-100 40 - 200 60 - 300 Tightening value (scale range) (65 7500) Nm 2-12 7-35 10-80 15-85 50 - 200 Overall length (65 7410) mm 201 318 457 609 Overall length (65 7500) mm 125 180 - 240 315 - 405 - Weight (65 7410) kg 0.52 0.64 1.06 1.21 Weight (65 7500) kg 0.19 0.25 0.31 0.38 0.72 Socket for plug-in head mm 9X12 14X18 657520 Adjustment wrench S 65 7520 Adjustment wrench for No. 65 7500 and 65 7765 Torque wrench fully insulated with setting scale - automatic triggering Accuracy s 10 Nm ± 6%; > 10 Nm ± 4%. Version Torque wrench fully insulated to 1000 V to EN 60900 / VDE 0682. Single-handed torque wrench, adjustable using the scale, with protection against accidental changes to the setting. Integral ratchet, reversible left-hand and right-hand tightening by push-thru drive square. Function On reaching the set torque value the wrench triggers giving a "signal" (audible and perceptible) and is then immediately ready for use again. Application For controlled screw tightening etc. to specified torques in batch productions. Note For use only in conjunction with fully insulated tool heads. 1000V o ±4% Cal Secure stop for the tool heads. Maximum torque Nm 25 50-3/8 50-1/2 9 7ccn Torque wrench 3 03 with scale fully insulated Tightening value (scale range) Nm 5-25 5-50 5-50 Scale graduation, 1 graduation Nm 2.5 2.5 2.5 Overall length mm 290 385 385 Weight kg 1.23 1.23 1.23 Square drive inches 3/8 3/8 1/2 1230 Main catalogue Hoffmann Group 46
