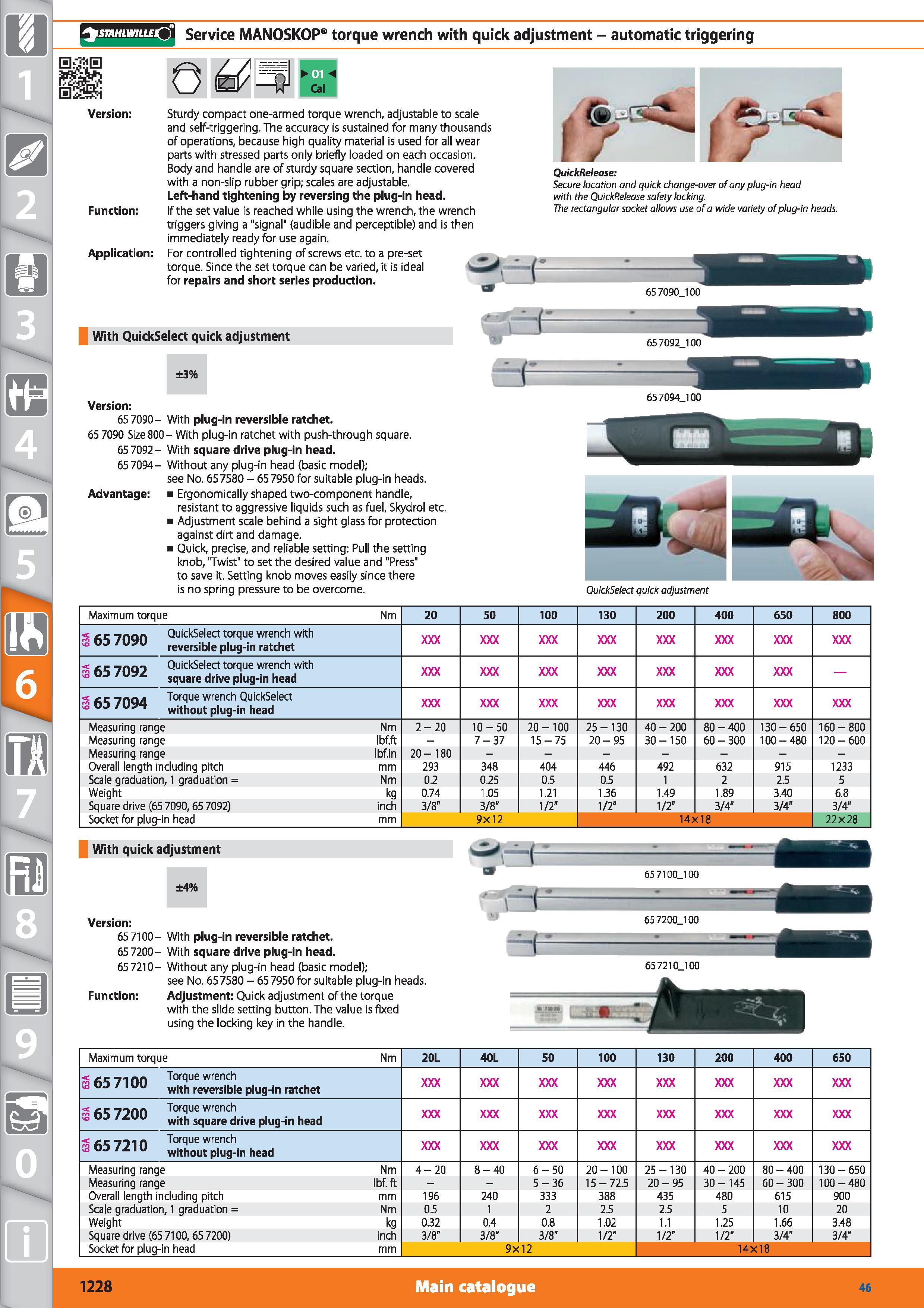

STAHLWILLE Service MANOSKOP torque wrench with quick adjustment - automatic triggering Version Function Application Sturdy compact one-armed torque wrench, adjustable to scale and self-triggering. The accuracy is sustained for many thousands of operations, because high quality material is used for all wear parts with stressed parts only briefly loaded on each occasion. Body and handle are of sturdy square section, handle covered with a non-slip rubber grip; scales are adjustable. Left-hand tightening by reversing the plug-in head. If the set value is reached while using the wrench, the wrench triggers giving a "signal" (audible and perceptible) and is then immediately ready for use again. For controlled tightening of screws etc. to a pre-set torque. Since the set torque can be varied, it is ideal for repairs and short series production. QuickRelease; Secure location and quick change-over of any plug-in head with the QuickRelease safety hcking. The rectangular socket allows use of a wide variety ofplug-ln heads. With QuickSelect quick adjustment 657092J00 8 0 m ±3% Version 65 7090- With plug-in reversible ratchet. 65 7090 Size 800- With plug-in ratchet with push-through square. 65 7092- With square drive plug-in head. 65 7094- Without any plug-in head (basic model); see No. 65 7580 - 65 7950 for suitable plug-in heads. Advantage Ergonomically shaped two-component handle, resistant to aggressive liquids such as fuel, Skydrol etc. Adjustment scale behind a sight glass for protection against dirt and damage. Quick, precise, and reliable setting Pull the setting knob, "Twist" to set the desired value and "Press" to save it. Setting knob moves easily since there is no spring pressure to be overcome. QuickSelect quick adjustment Maximum torque Nm 20 50 100 130 200 400 650 800 ,r 7f>nn QuickSelect torque wrench with 0 03 /USHJ reversible plug-in ratchet S 709 QuickSelect torque wrench with 3 03 /uyz Square drjve pjUg-in head < f-n -inn a Torque wrench QuickSelect 3 03 /WH without plug-in head Measuring range Nm 2-20 10-50 20-100 25-130 40 - 200 80 - 400 130-650 160-800 Measuring range Ibf.ft - 7-37 15-75 20-95 30-150 60-300 100 - 480 120-600 Measuring range Ibf.in 20-180 - Overall length including pitch mm 293 348 404 446 492 632 915 1233 Scale graduation, 1 graduation Nm 0.2 0.25 0.5 0.5 1 2 2.5 5 Weight kg 0.74 1.05 1.21 1.36 1.49 1.89 3.40 6.8 Square drive (65 7090,65 7092) inch 3/8" 3/8" 1/2” 1/2" 1/2” 3/4" 3/4” 3/4" Socket for plug-in head mm 9x12 14x18 22x28 With quick adjustment ±4% Version 65 7100- With plug-in reversible ratchet. 65 7200- With square drive plug-in head. 65 7210- Without any plug-in head (basic model); see No. 65 7580 - 65 7950 for suitable plug-in heads. Function Adjustment Quick adjustment of the torque with the slide setting button. The value is fixed using the locking key in the handle. - GV 65 7100J00 \ i' 65 7200J 00 "3 iMfii 65 721 oj 00 Maximum torque Nm 20L 40L 50 100 130 200 400 650 S 71 nn Torque wrench 03 with reversible plug-in ratchet S linn Torque wrench with square drive plug-in head < cc 7)i n Torque wrench 3 03 Id. U without plug-in head Measuring range Nm 4-20 8-40 6-50 20-100 25-130 40 - 200 80 - 400 130-650 Measuring range Ibf.ft 5-36 15-72.5 20-95 30-145 60-300 100 - 480 Overall length including pitch mm 196 240 333 388 435 480 615 900 Scale graduation, 1 graduation Nm 0.5 1 2 2.5 2.5 5 10 20 Weight kg 0.32 0.4 0.8 1.02 1.1 1.25 1.66 3.48 Square drive (65 7100,65 7200) inch 3/8" 3/8" 3/8” 1/2" 1/2” 1/2" 3/4” 3/4" Socket for plug-in head mm 9X12 14X18 1228 Main catalogue Hoffmann Group 46
