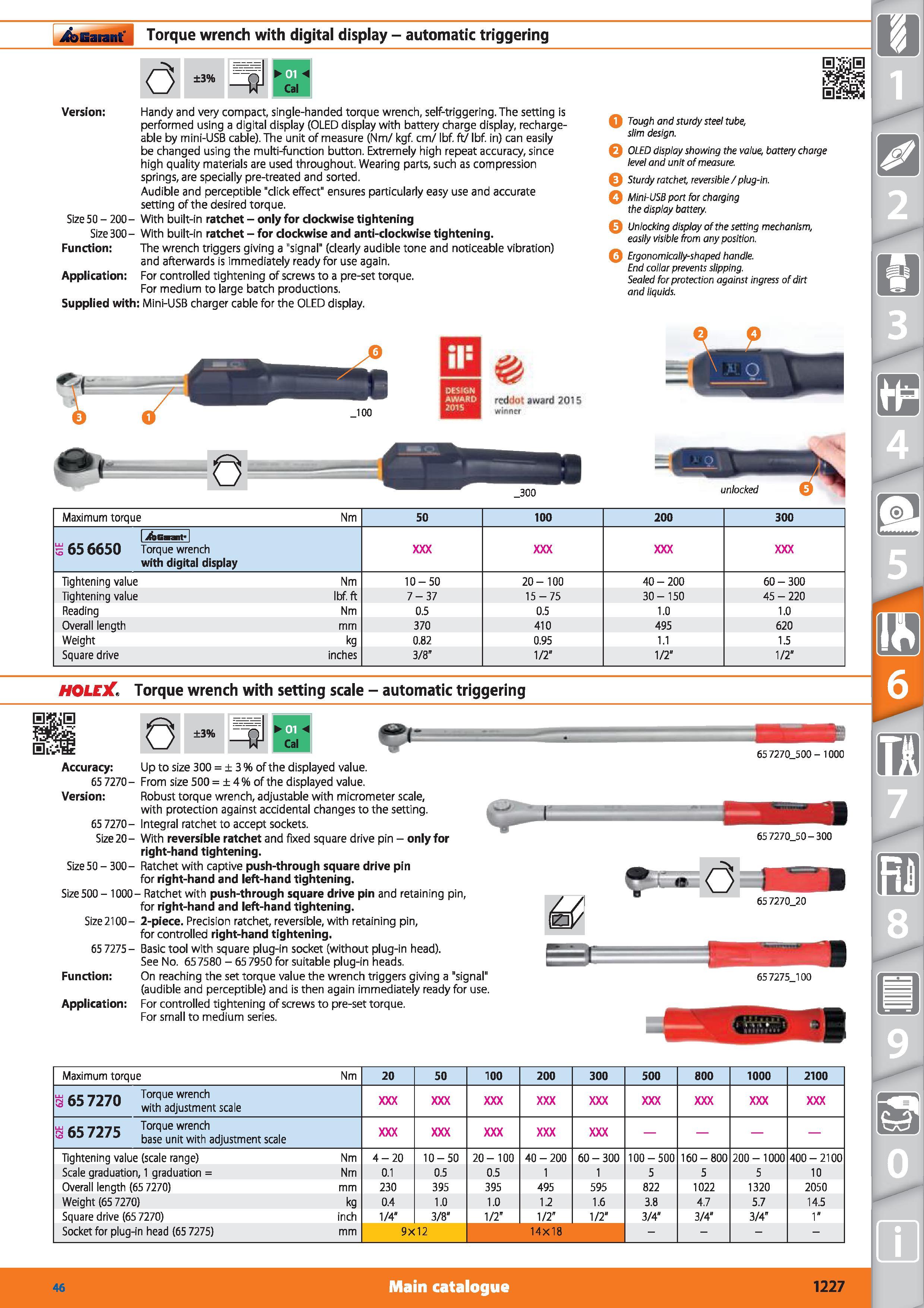

Garant Torque wrench with digital display - automatic triggering ±3% Version Handy and very compact, single-handed torque wrench, self-triggering. The setting is performed using a digital display (OLED display with battery charge display, rechargeable by mini-USB cable). The unit of measure (Nm/ kgf. cm/ Ibf. ft/ Ibf. in) can easily be changed using the multi-function button. Extremely high repeat accuracy, since high quality materials are used throughout. Wearing parts, such as compression springs, are specially pre-treated and sorted. Audible and perceptible "click effect" ensures particularly easy use and accurate setting of the desired torque. Size 50 - 200- With built-in ratchet - only for clockwise tightening Size 300- With built-in ratchet - for clockwise and anti-dockwise tightening. Function The wrench triggers giving a "signal" (clearly audible tone and noticeable vibration) and afterwards is immediately ready for use again. Application For controlled tightening of screws to a pre-set torque. For medium to large batch productions. Supplied with Mini-USB charger cable for the OLED display. Q Tough and sturdy steel tube, slim design. Q OLED display showing the value, battery charge level and unit of measure. Q Sturdy ratchet, reversible / plug-in. Q Mini-USB port for charging the display battery. Q Unlocking display of the setting mechanism, easily visible from any position. Ergonomically-shaped handle. End collar prevents slipping. Sealed for protection against ingress of dirt and liquids. TV red iot award 2015 winner 0 300 unlocked Maximum torque Nm 50 100 200 300 1 jfecnnt 1 5 65 6650 Torque wrench with digital display Tightening value Nm 10-50 20-100 40 - 200 60-300 Tightening value Ibf. ft 7-37 15-75 30-150 45 - 220 Reading Nm 0.5 0.5 1.0 1.0 Overall length mm 370 410 495 620 Weight kg 0.82 0.95 1.1 1.5 Square drive inches 3/8” 1/2" 1/2" 1/2" HOLE3C. Torque wrench with setting scale - automatic triggering O ±3% Cal Accuracy 65 7270-Version 65 7270-Size20- Size50-300- Size 500-1000- Size 2100 65 7275- Function Application Up to size 300 ± 3 of the displayed value. From size 500 ± 4% of the displayed value. Robust torque wrench, adjustable with micrometer scale, with protection against accidental changes to the setting. Integral ratchet to accept sockets. With reversible ratchet and fixed square drive pin - only for right-hand tightening. Ratchet with captive push-through square drive pin for right-hand and left-hand tightening. - Ratchet with push-through square drive pin and retaining pin, for right-hand and left-hand tightening. 2-piece. Precision ratchet, reversible, with retaining pin, for controlled right-hand tightening. Basic tool with square plug-in socket (without plug-in head). See No. 657580 - 65 7950 for suitable plug-in heads. On reaching the set torque value the wrench triggers giving a "signal" (audible and perceptible) and is then again immediately ready for use. For controlled tightening of screws to pre-set torque. For small to medium series. 65 7270_500- 1000 65 7270_50-300 (3 Maximum torque Nm 20 50 100 200 300 500 800 1000 2100 lu j-j-jn Torque wrench 3 With adjustment scale lu cc 797c Torque wrench 3 base unit with adjustment scale Tightening value (scale range) Nm 4-20 10-50 20-100 40-200 60-300 100-500 160-800 200-1000 400-2100 Scale graduation, 1 graduation Nm 0.1 0.5 0.5 1 1 5 5 5 10 Overall length (65 7270) mm 230 395 395 495 595 822 1022 1320 2050 Weight (65 7270) kg 0.4 1.0 1.0 1.2 1.6 3.8 4.7 5.7 14.5 Square drive (65 7270) inch 1/4" 3/8" 1/2” 1/2” 1/2" 3/4" 3/4" 3/4” 1" Socket for plug-in head (65 7275) mm 9X12 14x18 Main catalogue Hoffmann Group 46 1227
