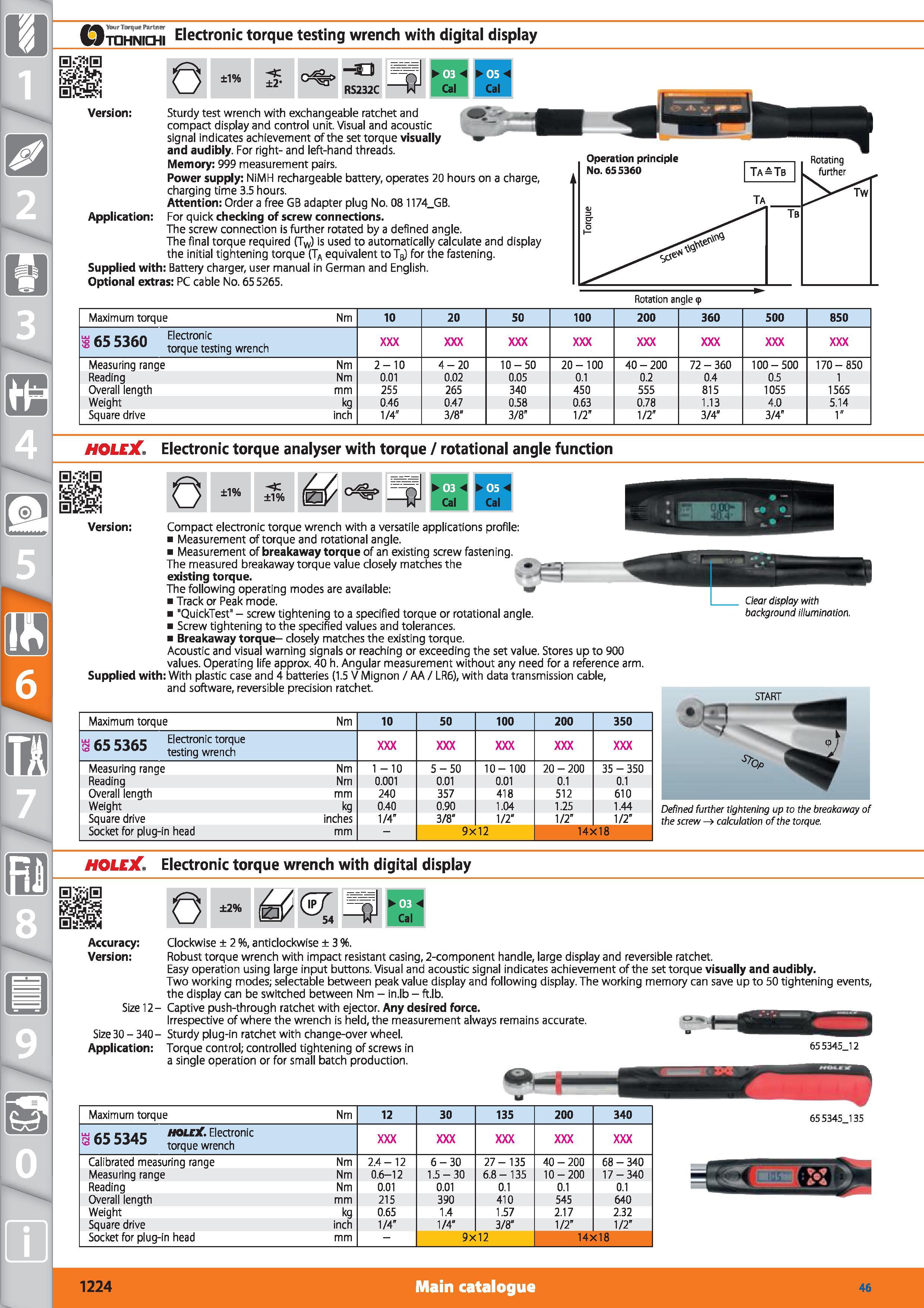

1224 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1224

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1224 1224 ENG Lab2u

tqhnichi Electronic torque testing wrench with digital display 0 ±1% c -SJ =4 05 ±2' RS232C Cal Cal Version Sturdy test wrench with exchangeable ratchet and compact display and control unit. Visual and acoustic signal indicates achievement of the set torque visually and audibly. For right- and left-hand threads. Memory 999 measurement pairs. Power supply NiMH rechargeable battery, operates 20 hours on a charge, charging time 3.5 hours. Attention Order a free GB adapter plug No. 081174_GB. For quick checking of screw connections. The screw connection is further rotated by a defined angle. The final torque required (Tw) is used to automatically calculate and display the initial tightening torque (TA equivalent toTg) for the fastening. Supplied with Battery charger, user manual in German and English. Optional extras PC cable No. 655265. Application Rotation angle Maximum torque Nm 10 20 50 100 200 360 500 850 So ftciftn Electronic torque testing wrench Measuring range Nm 2-10 4-20 10-50 20-100 40-200 72 - 360 100-500 170-850 Reading Nm 0.01 0.02 0.05 0.1 0.2 0.4 0.5 1 Overall length mm 255 265 340 450 555 815 1055 1565 Weight kg 0.46 0.47 0.58 0.63 0.78 1.13 4.0 5.14 Square drive inch 1/4" 3/8" 3/8" 1/2” 1/2" 3/4" 3/4” 1" HOLEX Electronic torque analyser with torque / rotational angle function o ±1% ±1% Cal to Version Compact electronic torque wrench with a versatile applications profile Measurement of torque and rotational angle. Measurement of breakaway torque of an existing screw fastening. The measured breakaway torque value closely matches the existing torque. The following operating modes are available Track or Peak mode. "QuickTest" - screw tightening to a specified torque or rotational angle. Screw tightening to the specified values and tolerances. Breakaway torque- closely matches the existing torque. Acoustic and visual warning signals or reaching or exceeding the set value. Stores up to 900 values. Operating life approx. 40 h. Angular measurement without any need for a reference arm. Supplied with With plastic case and 4 batteries (1.5 V Mignon / AA / LR6), with data transmission cable, and software, reversible precision ratchet. Clear display with background illumination. Maximum torque Nm 10 50 100 200 350 9 65 5365 tEle5tronic torqhue 10 testing wrench Measuring range Nm 1 -10 5-50 10-100 20 - 200 35 - 350 Reading Nm 0.001 0.01 0.01 0.1 0.1 Overall length mm 240 357 418 512 610 Weight kg 0.40 0.90 1.04 1.25 1.44 Square drive inches 1/4" 3/8" 1/2" 1/2" 1/2" Socket for plug-in head mm - 9x12 14x18 Defined further tightening up to the breakaway of the screw > calculation of the torque. HOLEX Electronic torque wrench with digital display O ±2% (IP/ 54 Cal Accuracy Clockwise ±2%, anticlockwise ± 3 96. Version Robust torque wrench with impact resistant casing, 2-component handle, large display and reversible ratchet. Easy operation using large input buttons. Visual and acoustic signal indicates achievement of the set torque visually and audibly. Two working modes; selectable between peak value display and following display. The working memory can save up to 50 tightening events, the display can be switched between Nm - in.lb - ft.lb. Size 12 - Captive push-through ratchet with ejector. Any desired force. Irrespective of where the wrench is held, the measurement always remains accurate. Size 30 - 340 - Sturdy plug-in ratchet with change-over wheel. Application Torque control; controlled tightening of screws in 65 5345J 2 a single operation or for small batch production. Maximum torque Nm 12 30 135 200 340 m s-r HOLEX Electronic 10 torque wrench Calibrated measuring range Nm 2.4-12 6-30 27-135 40 - 200 68 - 340 Measuring range Nm 0.6-12 1.5-30 6.8-135 10-200 17-340 Reading Nm 0.01 0.01 0.1 0.1 0.1 Overall length mm 215 390 410 545 640 Weight kg 0.65 1.4 1.57 2.17 2.32 Square drive inch 1/4" 1/4" 3/8" 1/2" 1/2" Socket for plug-in head mm - 9x12 14x18 65 5345 J 35 1224 Main catalogue Hoffmann Group 46
