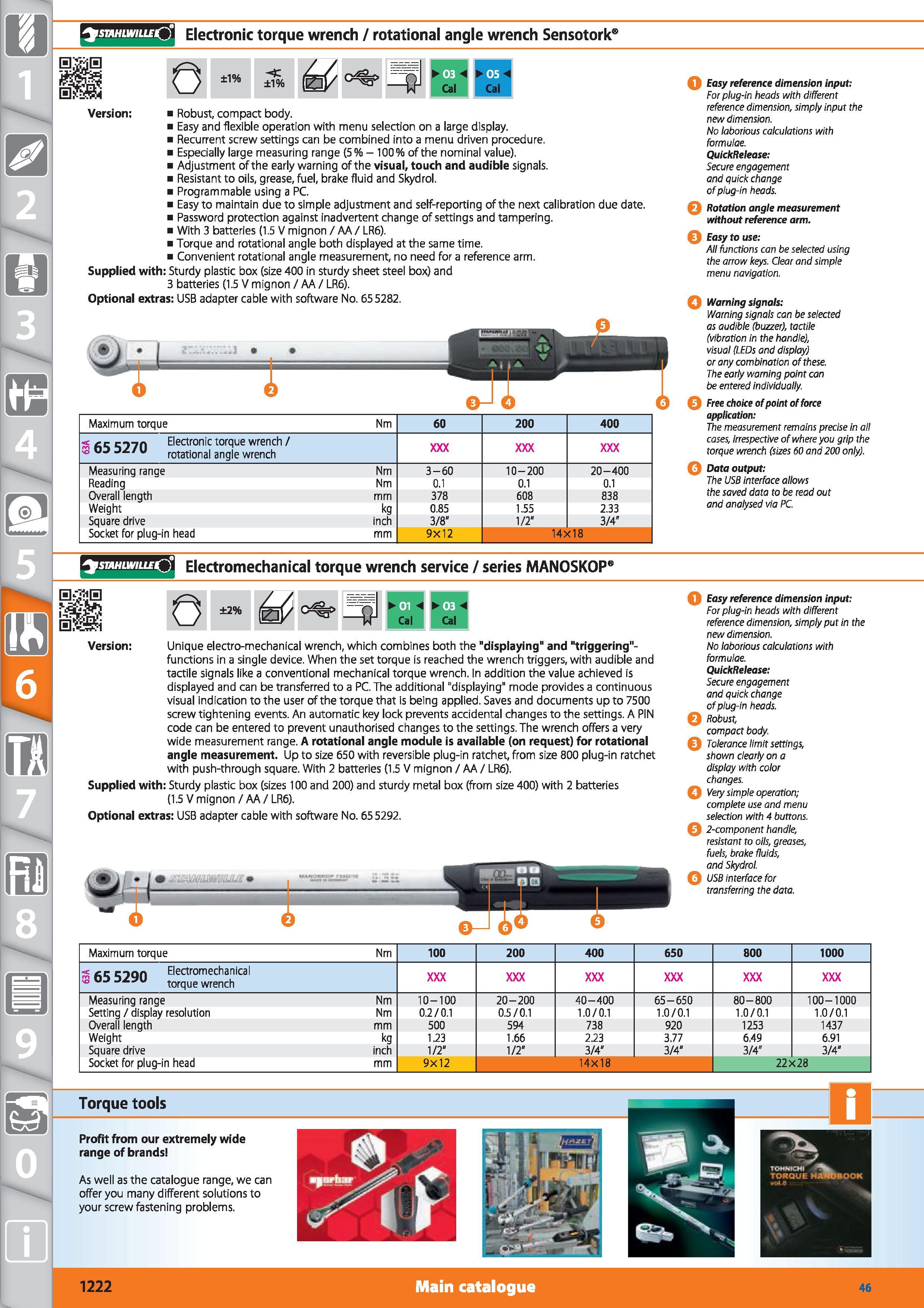

UDUfUPfUfO Electronic torque wrench / rotational angle wrench Sensotork 6 ±1% c ±1% Version Robust, compact body. Easy and flexible operation with menu selection on a large display. Recurrent screw settings can be combined into a menu driven procedure. Especially large measuring range (5% - 100% of the nominal value). Adjustment of the early warning of the visual, touch and audible signals. Resistant to oils, grease, fuel, brake fluid and Skydrol. Programmable using a PC. Easy to maintain due to simple adjustment and self-reporting of the next calibration due date. Password protection against inadvertent change of settings and tampering. With 3 batteries (1.5 V mignon / AA / LR6). Torque and rotational angle both displayed at the same time. Convenient rotational angle measurement, no need for a reference arm. Supplied with Sturdy plastic box (size 400 in sturdy sheet steel box) and 3 batteries (1.5 V mignon / AA / LR6). Optional extras USB adapter cable with software No. 655282. pE3E < Maximum torque Nm 60 200 400 < /jr c77fi Electronic torque wrench / rotational angle wrench Measuring range Nm 3-60 10-200 20-400 Reading Nm 0.1 0.1 0.1 Overall length mm 378 608 838 Weight kg 0.85 1.55 2.33 Square drive inch 3/8” 1/2" 3/4" Socket for plug-in head mm 9X12 14X18 ( Easy reference dimension input For plug-in heads with different reference dimension, simply input the new dimension. No laborious calculations with formulae. QuickRelease Secure engagement and quick change of plug-in heads. Rotation angle measurement without reference arm. Easy to use All functions can be selected using the arrow keys. Clear and simple menu navigation. Warning signals Warning signals can be selected as audible (buzzer), tactile (vibration in the handle), visual (LEDs and display) or any combination of these. The early warning point can be entered individually. Free choice of point of force application The measurement remains precise in all cases, irrespective of where you grip the torque wrench (sizes 60 and 200 only). o Data output The USB interface alhws the saved data to be read out and analysed via PC. 8 0 m STAHLWILLEt J Electromechanical torque wrench service / series MANOSKOP j-; ±2% T> S < Cal Version Unique electro-mechanical wrench, which combines both the "displaying" and "triggering"- functions in a single device. When the set torque is reached the wrench triggers, with audible and tactile signals like a conventional mechanical torque wrench. In addition the value achieved is displayed and can be transferred to a PC. The additional "displaying" mode provides a continuous visual indication to the user of the torque that is being applied. Saves and documents up to 7500 screw tightening events. An automatic key lock prevents accidental changes to the settings. A PIN code can be entered to prevent unauthorised changes to the settings. The wrench offers a very wide measurement range. A rotational angle module is available (on request) for rotational angle measurement. Up to size 650 with reversible plug-in ratchet, from size 800 plug-in ratchet with push-through square. With 2 batteries (1.5 V mignon / AA / LR6). Supplied with Sturdy plastic box (sizes 100 and 200) and sturdy metal box (from size 400) with 2 batteries (1.5 V mignon / AA / LR6). Optional extras USB adapter cable with software No. 655292. Q Easy reference dimension input For plug-in heads with different reference dimension, simply put in the new dimension. No laborious calculations with formulae QuickRelease Secure engagement and quick change of plug-in heads. Q Robust, compact body. Q Tolerance limit settings, shown clearly on a display with color changes. Q Very simple operation; complete use and menu selection with 4 buttons. Q 2-component handle, resistant to oils, greases, fuels, brake fluids, and Skydrol. Q USB interface for transferring the data. Maximum torque Nm 100 200 400 650 800 1000 < f-c r nn Electromechanical 3 03 torque wrench Measuring range Nm 10-100 20-200 40-400 65-650 80- 800 100-1000 Setting / display resolution Nm 0.2/0.1 0.5/0.1 1.0/0.1 1.0/0.1 1.0/0.1 1.0/0.1 Overall length mm 500 594 738 920 1253 1437 Weight kg 1.23 1.66 2.23 3.77 6.49 6.91 Square drive inch 1/2" 1/2" 3/4" 3/4" 3/4" 3/4" Socket for plug-in head mm 9X12 14X18 22X28 Torque tools Profit from our extremely wide range of brands As well as the catalogue range, we can offer you many different solutions to your screw fastening problems. 1222 I HU TOHNICHI TORQUE HflWbBOOK MI4 Main catalogue
