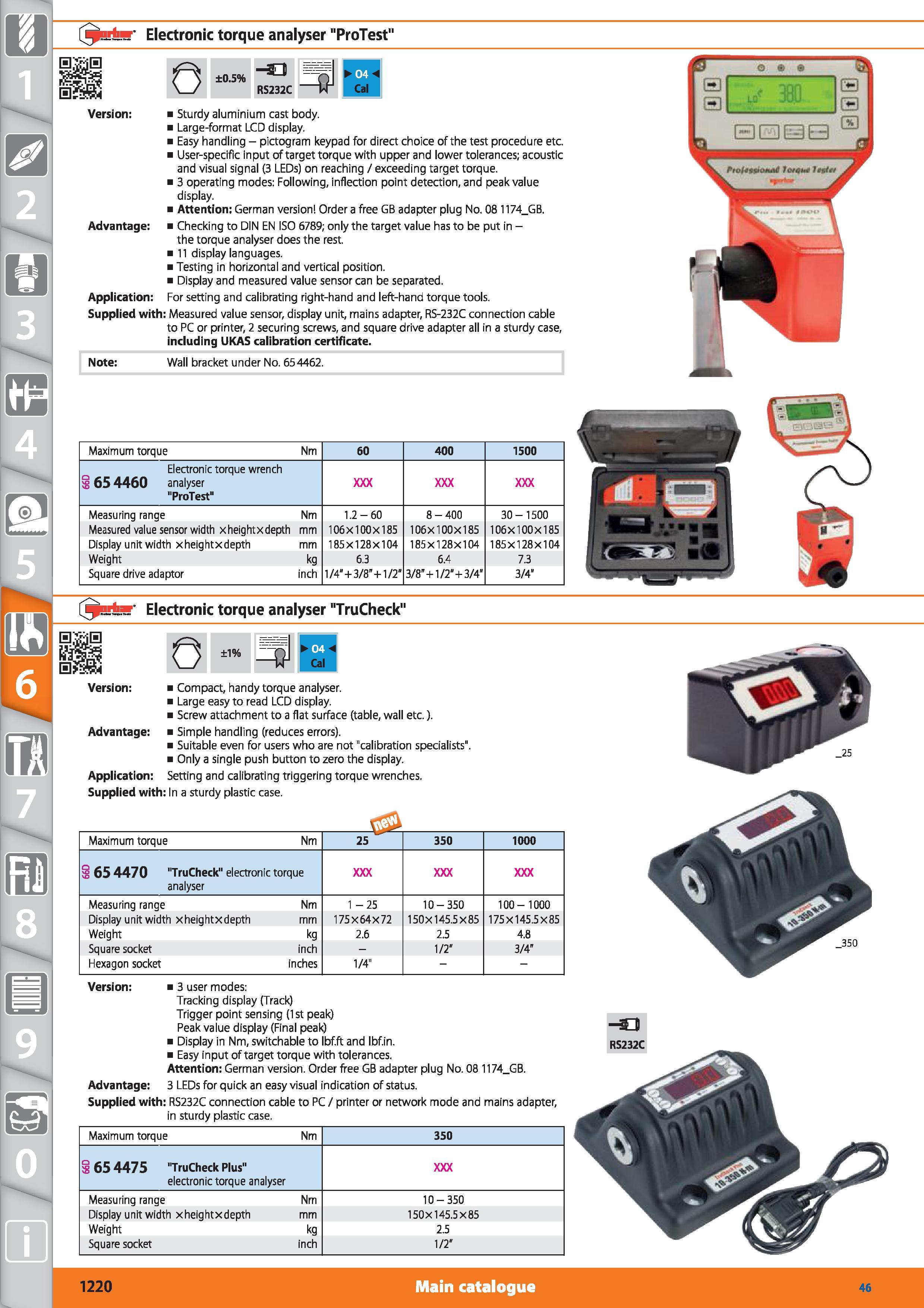

_' Electronic torque analyser "ProTest" 0 ±0.5% -an RS232C Ff l i 1 v Version Sturdy aluminium cast body. Large-format LCD display. Easy handling - pictogram keypad for direct choice of the test procedure etc. User-specific input of target torque with upper and lower tolerances; acoustic and visual signal (3 LEDs) on reaching / exceeding target torque. 3 operating modes Following, inflection point detection, and peak value display. Attention German version Order a free GB adapter plug No. 08 1174_GB. Advantage Checking to DIN EN ISO 6789; only the target value has to be put in - the torque analyser does the rest. 11 display languages. Testing in horizontal and vertical position. Display and measured value sensor can be separated. Application For setting and calibrating right-hand and left-hand torque tools. Supplied with Measured value sensor, display unit, mains adapter, RS-232C connection cable to PC or printer, 2 securing screws, and square drive adapter all in a sturdy case, including UKAS calibration certificate. Note Wall bracket under No. 65 4462. Maximum torque Nm 60 400 1500 Electronic torque wrench 65 4460 analyser "ProTest" Measuring range Nm 1.2-60 8-400 30- 1500 Measured value sensor width xheightxdepth mm 106X100X185 106X100X185 106X100X185 Display unit width xheightxdepth mm 185x128x104 185x128x104 185x128x104 Weight kq 6.3 6.4 7.3 Square drive adaptor inch 1/4"+3/8”+1/2" 3/8”+1/2"+3/4" 3/4" Electronic torque analyser "TruCheck" O ±1% Cal Version Advantage Application Compact, handy torque analyser. Large easy to read LCD display. Screw attachment to a flat surface (table, wall etc.). Simple handling (reduces errors). Suitable even for users who are not "calibration specialists". Only a single push button to zero the display. Setting and calibrating triggering torque wrenches. Supplied with In a sturdy plastic case. Maximum torque Nm 25 350 1000 65 4470 "TruCheck" electronic torque analyser Measuring range Nm 1 -25 10-350 100- 1000 Display unit width xheightxdepth mm 175X64X72 150X145.5X85 175X145.5X85 Weight kg 2.6 2.5 4.8 Square socket inch - 1/2" 3/4" Hexagon socket inches 1/4" Version 3 user modes Tracking display (Track) Trigger point sensing (1st peak) Peak value display (Final peak) Display in Nm, switchable to Ibf.ft and Ibf.in. Easy input of target torque with tolerances. Attention German version. Order free GB adapter plug No. 08 1174_GB. Advantage 3 LEDs for quick an easy visual indication of status. Supplied with RS232C connection cable to PC / printer or network mode and mains adapter, in sturdy plastic case. Maximum torque Nm 350 65 4475 "TruCheck Plus" electronic torque analyser Measuring range Nm 10-350 Display unit width xheightxdepth mm 150x145.5x85 Weight kq 2.5 Square socket inch 1/2" 1220 Main catalogue Hoffmann Group 46 93 RS232C
