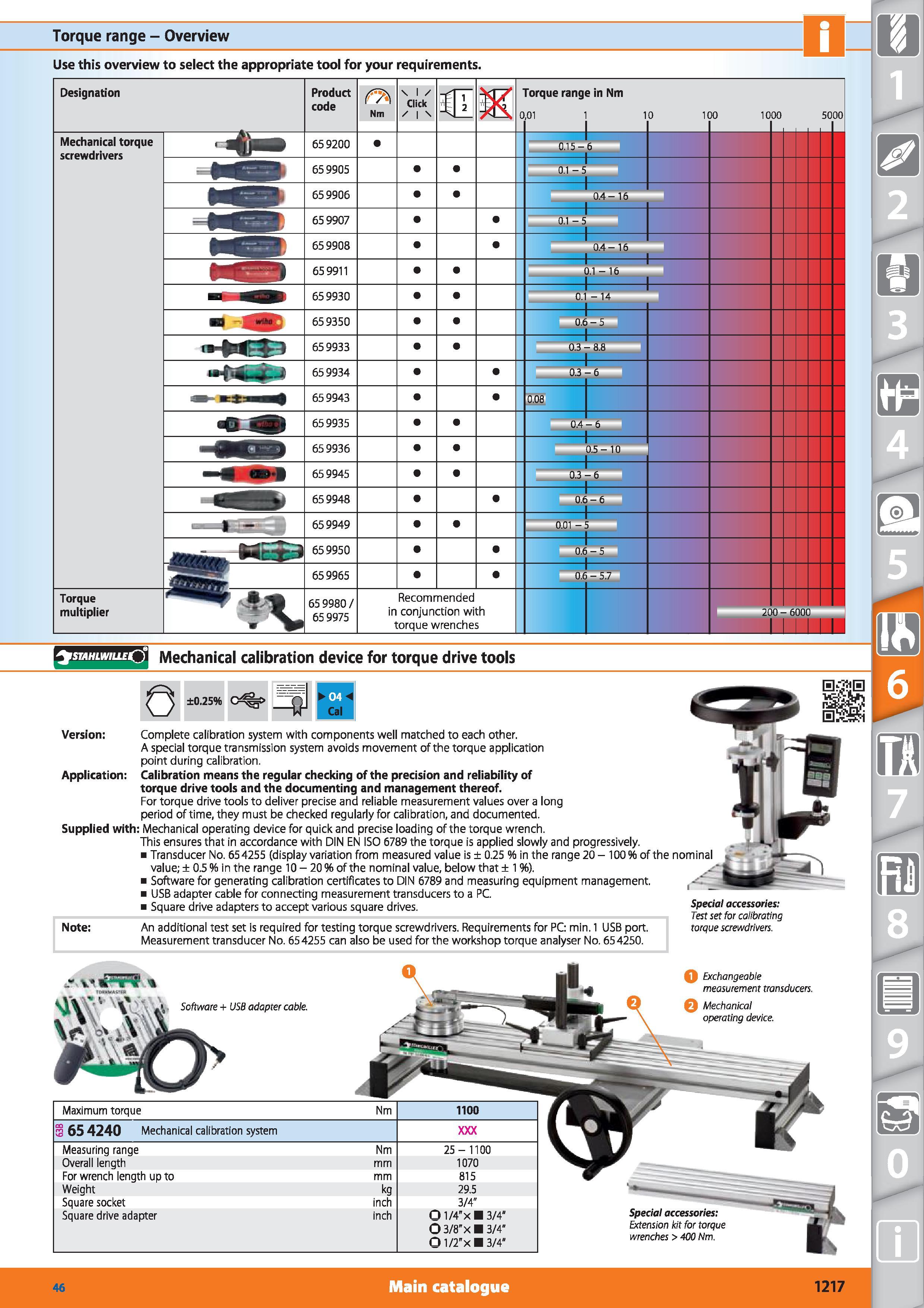

Torque range - Overview Use this overview to select the appropriate tool for your requirements. Designation Mechanical torque screwdrivers Torque multiplier Product code 659200 659905 659906 659907 659908 659911 659930 659350 659933 659934 659943 659935 659936 659945 659948 659949 659950 659965 65 9980/ 65 9975 \ I / Click / I \ Recommended in conjunction with torque wrenches Torque range in Nm 0,01 1 10 100 1000 5000 0.15-6 0.1-5 0.1-5 0.4-16 0.4-16 .1 - 16 -14 0.6-5 0.3 - 8.8 0.3-6 0.08 0.4-6 h 0.5-10 0.3-6 I 0.6-6 + 0.01 - 5 0.6-5 I 0.6 - 5.7 200 - 6000 MINI I Mechanical calibration device for torque drive tools ±0.25% Version Application Complete calibration system with components well matched to each other. A special torque transmission system avoids movement of the torque application point during calibration. Calibration means the regular checking of the precision and reliability of torque drive tools and the documenting and management thereof. For torque drive tools to deliver precise and reliable measurement values over a long period of time, they must be checked regularly for calibration, and documented. Supplied with Mechanical operating device for quick and precise loading of the torque wrench. This ensures that in accordance with DIN EN ISO 6789 the torque is applied slowly and progressively. Transducer No. 654255 (display variation from measured value is ± 0.25 in the range 20- 100% of the nominal value; ± 0.5% in the range 10 - 20% of the nominal value, below that ± 1 %). Software for generating calibration certificates to DIN 6789 and measuring equipment management. USB adapter cable for connecting measurement transducers to a PC. Square drive adapters to accept various square drives. Note An additional test set is required for testing torque screwdrivers. Requirements for PC min. 1 USB port. Measurement transducer No. 654255 can also be used for the workshop torque analyser No. 654250. Special accessories Test set for calibrating torque screwdrivers. Software + USB adapter cable. Q Exchangeable measurement transducers. Q Mechanical operating device. Maximum torque Nm 1100 S 65 4240 Mechanical calibration system Measuring range Nm 25-1100 Overall length mm 1070 For wrench length up to mm 815 Weight kg 29.5 Square socket inch 3/4" Square drive adapter inch Q 1/4”x 3/4" O 3/8” X 3/4” Q 1/2"x 3/4" Special accessories Extension kit for torque wrenches > 400 Nm. Main catalogue Hoffmann Group 46 1217
