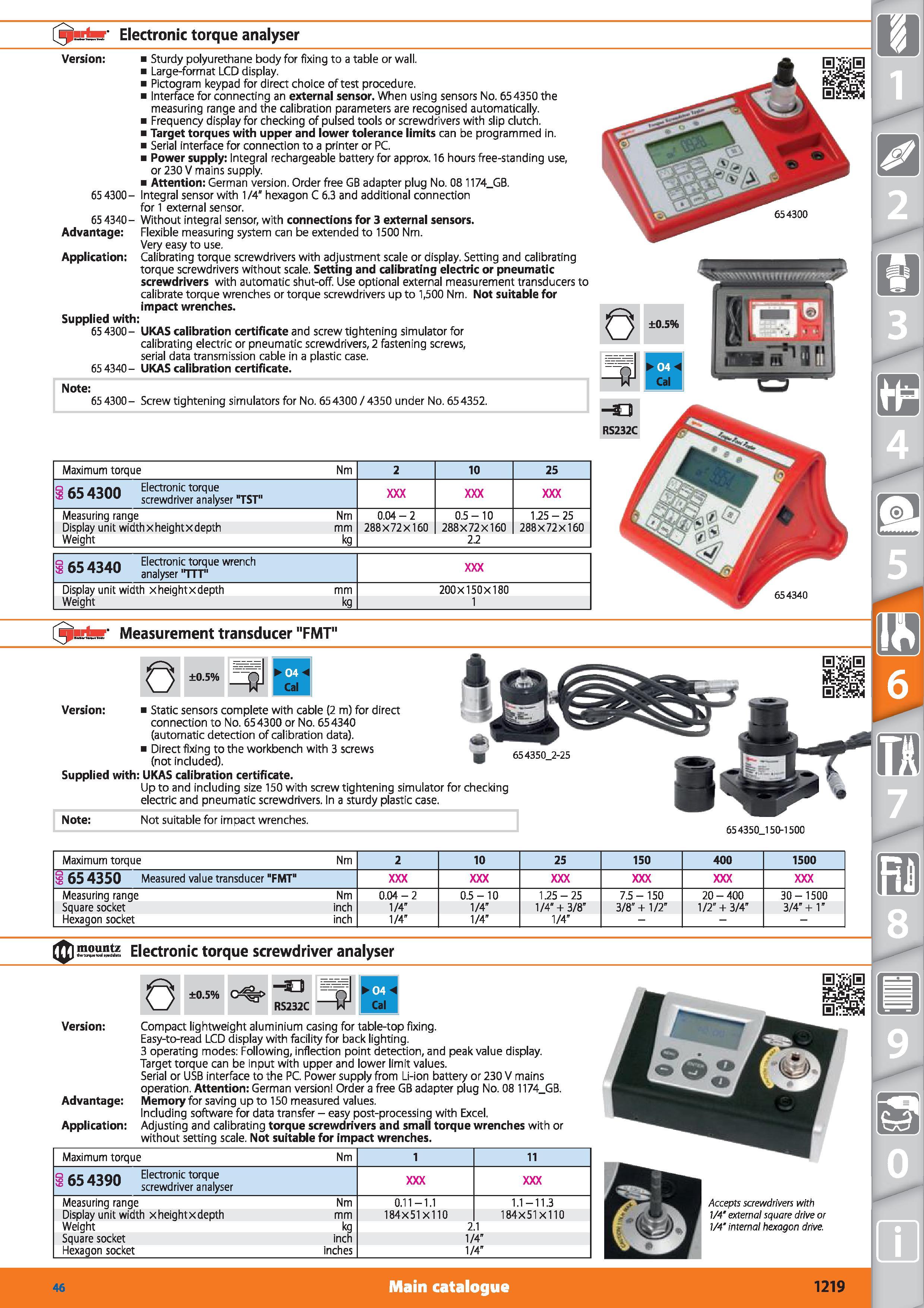

Electronic torque analyser Version Sturdy polyurethane body for fixing to a table or wall. Large-format LCD display. Pictogram keypad for direct choice of test procedure. Interface for connecting an external sensor. When using sensors No. 654350 the measuring range and the calibration parameters are recognised automatically. Frequency display for checking of pulsed tools or screwdrivers with slip clutch. Target torques with upper and lower tolerance limits can be programmed in. Serial interface for connection to a printer or PC. Power supply Integral rechargeable battery for approx. 16 hours free-standing use, or 230 V mains supply. Attention German version. Order free GB adapter plug No. 081174_GB. 65 4300- Integral sensor with 1/4" hexagon C 6.3 and additional connection for 1 external sensor. 65 4340- Without integral sensor, with connections for 3 external sensors. Advantage Flexible measuring system can be extended to 1500 Nm. Very easy to use. Application Calibrating torque screwdrivers with adjustment scale or display. Setting and calibrating torque screwdrivers without scale. Setting and calibrating electric or pneumatic screwdrivers with automatic shut-off. Use optional external measurement transducers to calibrate torque wrenches or torque screwdrivers up to 1,500 Nm. Not suitable for impact wrenches. Supplied with 65 4300- 65 4340- UKAS calibration certificate and screw tightening simulator for calibrating electric or pneumatic screwdrivers, 2 fastening screws, serial data transmission cable in a plastic case. UKAS calibration certificate. Note 65 4300- Screw tightening simulators for No. 654300 / 4350 under No. 654352. Maximum torque Nm 2 10 25 S fie /nnn Electronic torque 03 screwdriver ana yser "TST" Measuring range Display unit widthxheightxdepth Nm mm 0.04-2 288X72X160 0.5-10 288X 72X160 1.25-25 288X72X160 Weight kg 2.2 t-F ijin Electronic torque wrench 03 analyse,- "nr" Display unit width xheightxdepth mm 200X150X180 Weight kg 1 Measurement transducer "FMT" o ±0.5% Version Static sensors complete with cable (2 m) for direct connection to No. 654300 or No. 654340 (automatic detection of calibration data). Direct fixing to the workbench with 3 screws (not included). Supplied with UKAS calibration certificate. Up to and including size 150 with screw tightening simulator for checking electric and pneumatic screwdrivers. In a sturdy plastic case. Note Not suitable for impact wrenches. Maximum torque Nm 2 10 25 150 400 1500 65 4350 Measured value transducer "FMT" Measuring range Nm 0.04-2 0.5-10 1.25-25 7.5 - 150 20 - 400 30- 1500 Square socket inch 1/4” 1/4” 1/4"+ 3/8" 3/8"+ 1/2" 1/2"+ 3/4" 3/4"+ 1" Flexagon socket inch 1/4” 1/4" 1/4" - (fllESSS&i Electronic torque screwdriver analyser ±0.5% -SJ RS232C M < Cal Version Advantage Application Compact lightweight aluminium casing for table-top fixing. Easy-to-read LCD display with facility for back lighting. 3 operating modes Following, inflection point detection, and peak value display. Target torque can be input with upper and lower limit values. Serial or USB interface to the PC. Power supply from Li-ion battery or 230 V mains operation. Attention German version Order a free GB adapter plug No. 08 1174_GB. Memory for saving up to 150 measured values. Including software for data transfer - easy post-processing with Excel. Adjusting and calibrating torque screwdrivers and small torque wrenches with or without setting scale. Not suitable for impact wrenches. Maximum torque Nm 1 11 S 65 43QQ Electronic torque vo screwdriver analyser Measuring range Nm 0.11-1.1 1.1-11.3 Display unit width xheightxdepth mm 184X51X110 184X51X110 Weight kg 2.1 Square socket inch 1/4" Hexagon socket inches 1/4" 46 Main catalogue
