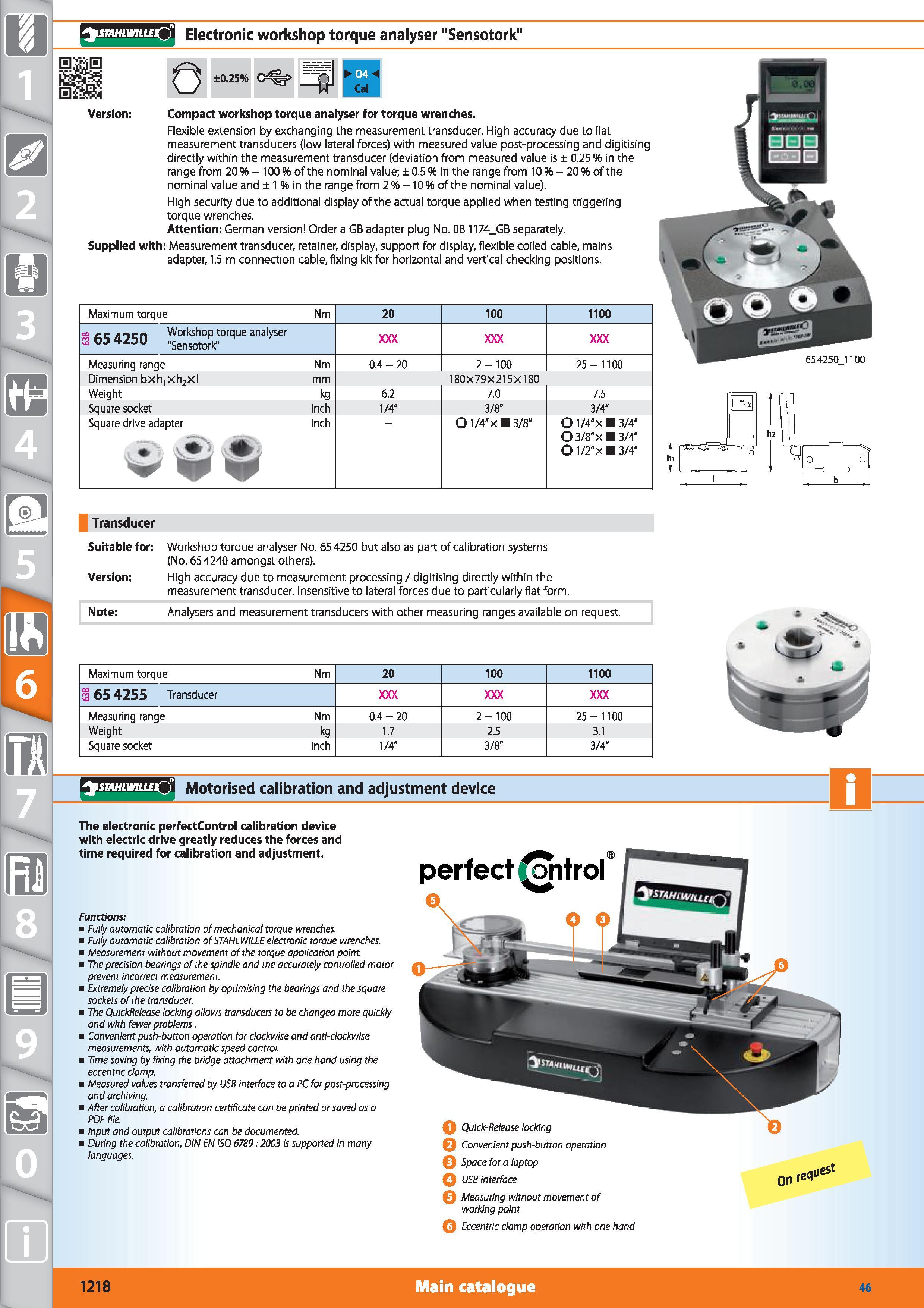

STAHLWILLE Electronic workshop torque analyser "Sensotork" 0 ±0.25% i iff ill i D Version Compact workshop torque analyser for torque wrenches. Flexible extension by exchanging the measurement transducer. High accuracy due to flat measurement transducers (low lateral forces) with measured value post-processing and digitising directly within the measurement transducer (deviation from measured value is ± 0.25 in the range from 20%- 100% of the nominal value; ±0.5% in the range from 10% - 20% of the nominal value and ± 1 in the range from 2% -10% of the nominal value). High security due to additional display of the actual torque applied when testing triggering torque wrenches. Attention German version Order a GB adapter plug No. 081174_GB separately. Supplied with Measurement transducer, retainer, display, support for display, flexible coiled cable, mains adapter, 1.5 m connection cable, fixing kit for horizontal and vertical checking positions. Maximum torque Nm 20 100 1100 A1 Workshop torque analyser 3 03 "Sensotork" Measuring range Nm 0.4 - 20 2-100 25-1100 Dimension bxh,xh2xl mm 180X79X215X180 Weight kg 6.2 7.0 7.5 Square socket inch 1/4" 3/8" 3/4” Square drive adapter v wW inch O 1/4" X 3/8" O 1/4" X 3/4" O 3/8” X 3/4” O 1/2”x 3/4" Transducer Suitable for Workshop torque analyser No. 654250 but also as part of calibration systems (No. 654240 amongst others). Version High accuracy due to measurement processing / digitising directly within the measurement transducer. Insensitive to lateral forces due to particularly flat form. Note Analysers and measurement transducers with other measuring ranges available on request. Maximum torque Nm 20 100 1100 3 65 4255 Transducer Measuring range Nm 0.4 - 20 2-100 25-1100 Weight kg 1.7 2.5 3.1 Square socket inch 1/4" 3/8” 3/4" STAHLWILLEf ) Motorised calibration and adjustment device The electronic perfectControl calibration device with electric drive greatly reduces the forces and time required for calibration and adjustment. Functions Fully automatic calibration of mechanical torque wrenches. Fully automatic calibration of STAHLWILLE electronic torque wrenches. Measurement without movement of the torque application point The precision bearings of the spindle and the accurately controlled motor prevent incorrect measurement Extremely precise calibration by optimising the bearings and the square sockets of the transducer. The QuickRelease locking allows transducers to be changed more quickly and with fewer problems. Convenient push-button operation for clockwise and anti-clockwise measurements, with automatic speed control. Time saving by fixing the bridge attachment with one hand using the eccentric clamp. Measured values transferred by USB interface to a PC for post-processing and archiving. After calibration, a calibration certificate can be printed or saved as a PDF file. Input and output calibrations can be documented. During the calibration, DIN EN ISO 6789:2003 is supported in many languages. ( Quick-Release locking Convenient push-button operation Space for a laptop USB interface Measuring without movement of working point Eccentric clamp operation with one hand 1218 Main catalogue Hoffmann Group 46
