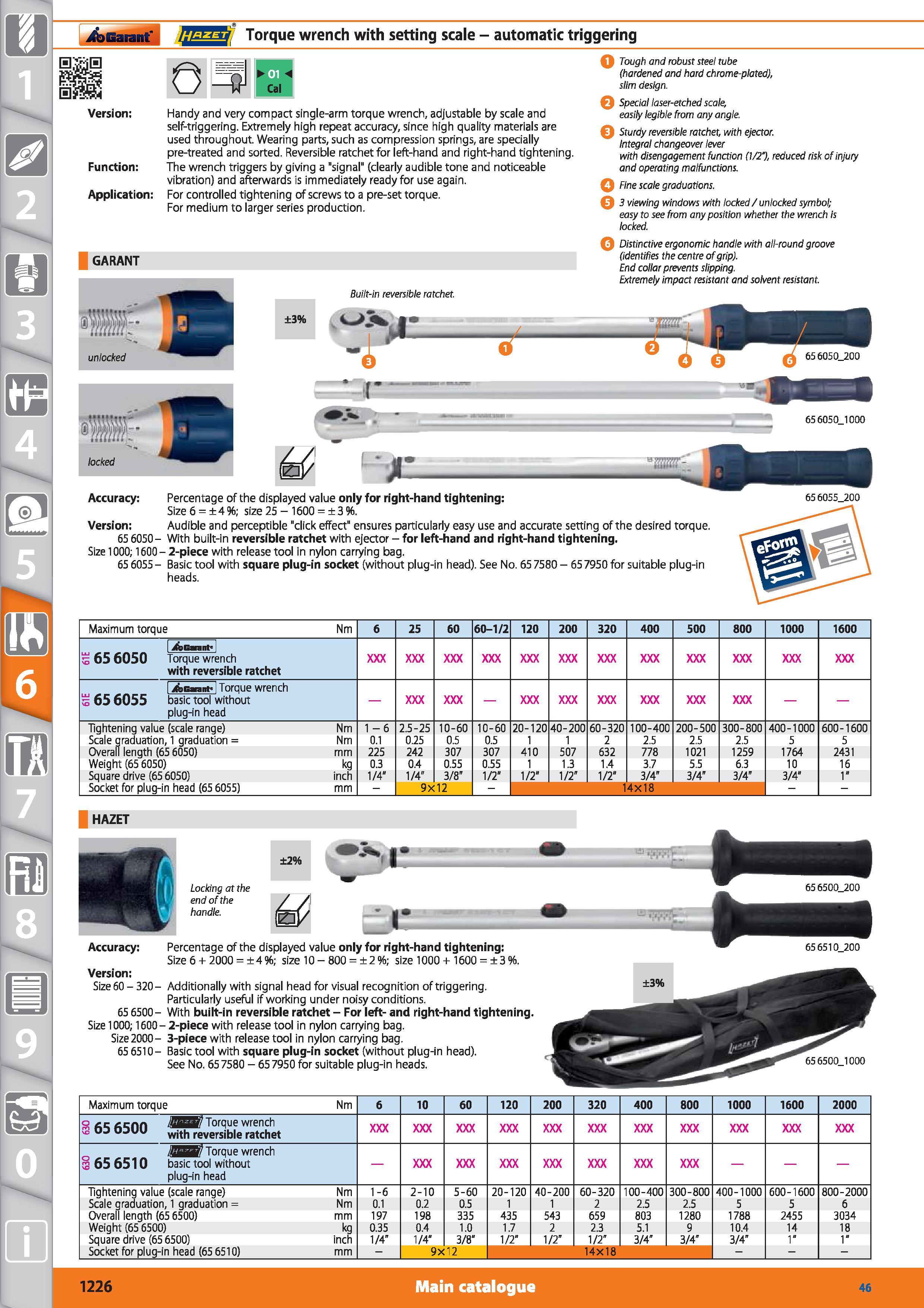

Torque wrench with setting scale - automatic triggering to Version Function Application GARANT Handy and very compact single-arm torque wrench, adjustable by scale and self-triggering. Extremely high repeat accuracy, since high quality materials are used throughout. Wearing parts, such as compression springs, are specially pre-treated and sorted. Reversible ratchet for left-hand and right-hand tightening. The wrench triggers by giving a "signal" (clearly audible tone and noticeable vibration) and afterwards is immediately ready for use again. For controlled tightening of screws to a pre-set torque. For medium to larger series production. Built-in reversible ratchet. Q Tough and robust steel tube (hardened and hard chrome-plated , slim design. Q Special laser-etched scale, easily legible from any angle. Q Sturdy reversible ratchet, with ejector. Integral changeover lever with disengagement function (1/27, reduced risk of injury and operating malfunctions. Q Fine scale graduations. Q 3 viewing windows with locked/ unlocked symbol; easy to see from any position whether the wrench is locked. Q Distinctive ergonomic handle with all-round groove (identifies the centre of grip). End collar prevents slipping. Extremely impact resistant and solvent resistant. unlocked mm locked 65 6050_1000 Accuracy Percentage of the displayed value only for right-hand tightening Size 6 ±4%; size 25 - 1600 ± 3 %. Version Audible and perceptible "click effect" ensures particularly easy use and accurate setting of the desired torque. 65 6050- With built-in reversible ratchet with ejector - for left-hand and right-hand tightening. Size 1000; 1600- 2-piece with release tool in nylon carrying bag. 65 6055 - Basic tool with square plug-in socket (without plug-in head). See No. 65 7580 - 65 7950 for suitable plug-in heads. 656055_200 Maximum torque Nm 6 25 60 60-1/2 120 200 320 400 500 800 1000 1600 1 jfbGanmt1 5 65 6050 Torque wrench with reversible ratchet 1 j&cannt 1 Torque wrench 5 65 6055 basic tool without plug-in head Tightening value (scale range) Nm 1-6 2.5-25 10-60 10-60 20-120 40-200 60-320 100-400 200-500 300-800 400-1000 600-1600 Scale graduation, 1 graduation Nm 0.1 0.25 0.5 0.5 1 1 2 2.5 2.5 2.5 5 5 Overall length (65 6050) mm 225 242 307 307 410 507 632 778 1021 1259 1764 2431 Weight (65 6050) kg 0.3 0.4 0.55 0.55 1 1.3 1.4 3.7 5.5 6.3 10 16 Square drive (656050) inch 1/4" 1/4" 3/8" 1/2" 1/2" 1/2" 1/2" 3/4" 3/4" 3/4" 3/4" 1" Socket for plug-in head (65 6055) mm - 9X12 - 14X18 HAZET Locking at the end of the handle. Accuracy Percentage of the displayed value only for right-hand tightening Size6 + 2000 ±4%; size 10 - 800 ±2%; size 1000 + 1600 ±3%. Version Size 60 - 320- Additionally with signal head for visual recognition of triggering. Particularly useful if working under noisy conditions. 65 6500- With built-in reversible ratchet - For left- and right-hand tightening. Size 1000; 1600- 2-piece with release tool in nylon carrying bag. Size 2000 - 3-piece with release tool in nylon carrying bag. 65 6510- Basic tool with square plug-in socket (without plug-in head). See No. 657580 - 657950 for suitable plug-in heads. 656510 200 65 6500_1000 Maximum torque Nm 6 10 60 120 200 320 400 800 1000 1600 2000 o c /rnn Torque wrench 65 6500 wjth reversib e ratchet Torque wrench 65 6510 basic tool without plug-in head Tightening value (scale range) Nm 1-6 2-10 5-60 20-120 40-200 60-320 100-400 300-800 400-1000 600-1600 800-2000 Scale graduation, 1 graduation Nm 0.1 0.2 0.5 1 1 2 2.5 2.5 5 5 6 Overall length (65 6500) mm 197 198 335 435 543 659 803 1280 1788 2455 3034 Weight (65 6500) kg 0.35 0.4 1.0 1.7 2 2.3 5.1 9 10.4 14 18 Square drive (65 6500) inch 1/4” 1/4" 3/8" 1/2" 1/2" 1/2" 3/4" 3/4" 3/4" 1" 1" Socket for plug-in head (65 6510) mm - 9x12 14x18 - 1226 Main catalogue Hoffmann Group 46
