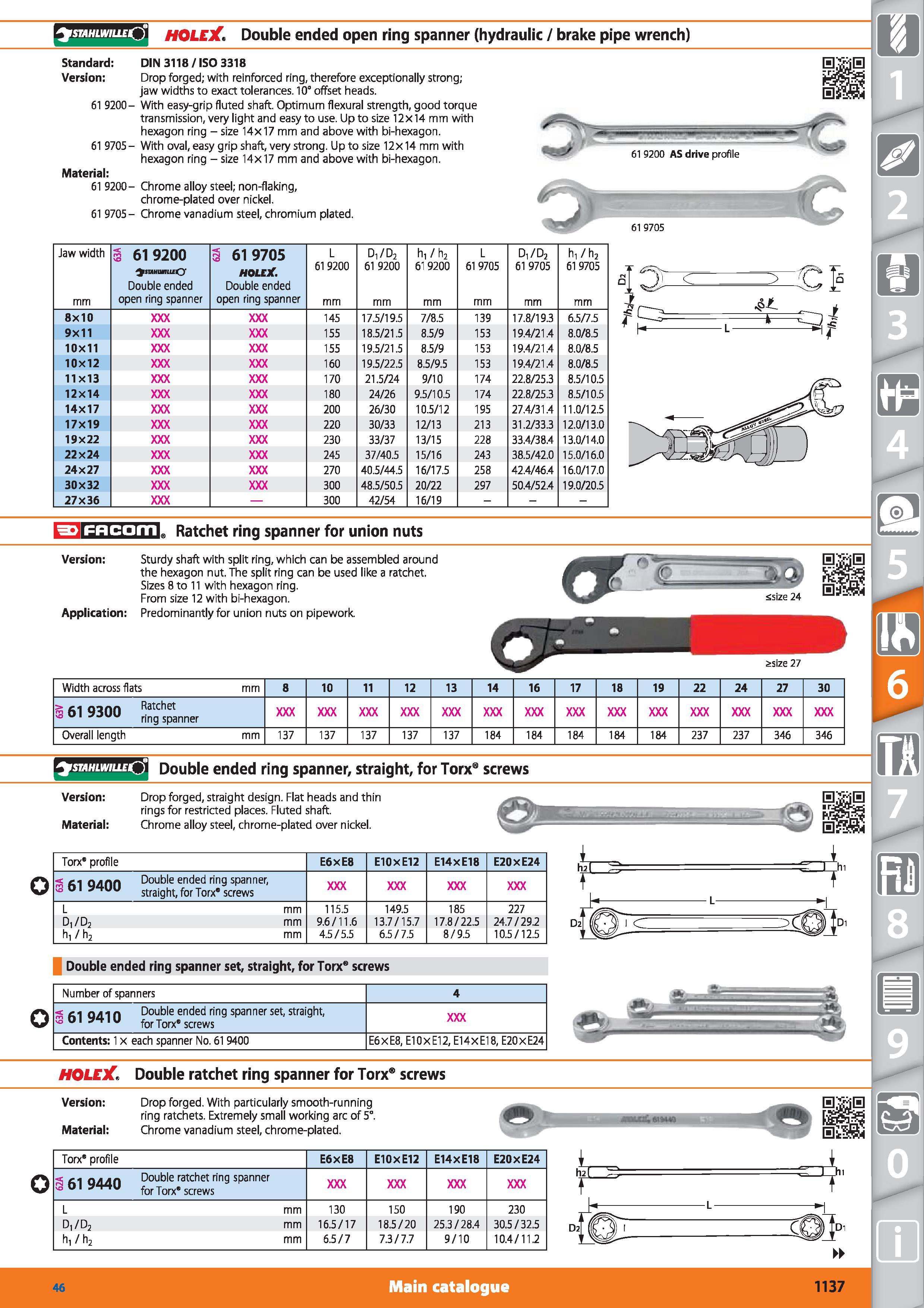

stahlwhieQ HOLEX Double ended open ring spanner (hydraulic / brake pipe wrench) Standard DIN 3118 / ISO 3318 Version Drop forged; with reinforced ring, therefore exceptionally strong; jaw widths to exact tolerances. 10° offset heads. With easy-grip fluted shaft. Optimum flexural strength, good torque transmission, very light and easy to use. Up to size 12x14 mm with hexagon ring - size 14x17 mm and above with bi-hexagon. With oval, easy grip shaft, very strong. Up to size 12x14 mm with hexagon ring - size 14x17 mm and above with bi-hexagon. Material 61 9200- Chrome alloy steel; non-flaking, chrome-plated over nickel. 61 9705- Chrome vanadium steel, chromium plated. 61 9200- 61 9705- 61 9705 Jaw width 3 619200 SHMUHUfO' Double ended 3 619705 HOLEX Double ended L 61 9200 D,/D2 61 9200 h, / h2 619200 L 61 9705 d,/d2 61 9705 h, /h2 619705 mm open ring spanner open ring spanner mm 8x10 145 17.5/19.5 7/8.5 139 17.8/19.3 6.5/7.5 9X11 155 18.5/21.5 8.5/9 153 19.4/21.4 8.0/8.5 10X11 155 19.5/21.5 8.5/9 153 19.4/21.4 8.0/8.5 10x12 160 19.5/22.5 8.5/9.5 153 19.4/21.4 8.0/8.5 11x13 170 21.5/24 9/10 174 22.8/25.3 8.5/10.5 12x14 180 24/26 9.5/10.5 174 22.8/25.3 8.5/10.5 14x17 200 26/30 10.5/12 195 27.4/31.4 11.0/12.5 17X19 220 30/33 12/13 213 31.2/33.3 12.0/13.0 19x22 230 33/37 13/15 228 33.4/38.4 13.0/14.0 22x24 245 37/40.5 15/16 243 38.5/42.0 15.0/16.0 24x27 270 40.5/44.5 16/17.5 258 42.4/46.4 16.0/17.0 30X32 300 48.5/50.5 20/22 297 50.4/52.4 19.0/20.5 27X36 300 42/54 16/19 - h Ratchet ring spanner for union nuts Version Sturdy shaft with split ring, which can be assembled around the hexagon nut. The split ring can be used like a ratchet. Sizes 8 to 11 with hexagon ring. From size 12 with bi-hexagon. Application Predominantly for union nuts on pipework ssize 27 Width across flats mm 8 10 11 12 13 14 16 17 18 19 22 24 27 30 S 61 9300 Ratchet X, V nng Spanne Overall length mm 137 137 137 137 137 184 184 184 184 184 237 237 346 346 fSTAHLWIUEf ) Double ended ring spanner, straight, for Torx8 screws Version Drop forged, straight design. Flat heads and thin rings for restricted places. Fluted shaft. Material Chrome alloy steel, chrome-plated over nickel. o Torx” profile E6xE8 E10XE12 E14XE18 E20XE24 s 61 9400 Double ended ring spanner, straight, for Torx screws L mm 115.5 149.5 185 227 d,/d2 mm 9.6/11.6 13.7/15.7 17.8/22.5 24.7/29.2 h,/h2 mm 4.5/5.5 6.5/7.5 8/9.5 10.5/12.5 Double ended ring spanner set, straight, for Torx8 screws o Number of spanners 4 e.i qai n Double ended ring spanner set, straight, 3 0I HU for Torx” screws Contents 1 x each spanner No. 619400 E6XE8, E10XE12, E14XE18, E20XE24 HOLEX Double ratchet ring spanner for Torx8 screws o Version Drop forged. With particularly smooth-running ring ratchets. Extremely small working arc of 5°. Material Chrome vanadium steel, chrome-plated. Torx" profile E6XE8 E10XE12 E14XE18 E20XE24 3 61 9440 Double ratchet ring spanner for Torx screws L mm 130 150 190 230 d,/d2 mm 16.5/17 18.5/20 25.3/28.4 30.5/32.5 hi / h2 mm 6.5/7 7.3/7.7 9/10 10.4/11.2 Main catalogue Hoffmann Group 46 1137
