1138 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1138

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1138 1138 ENG Lab2u

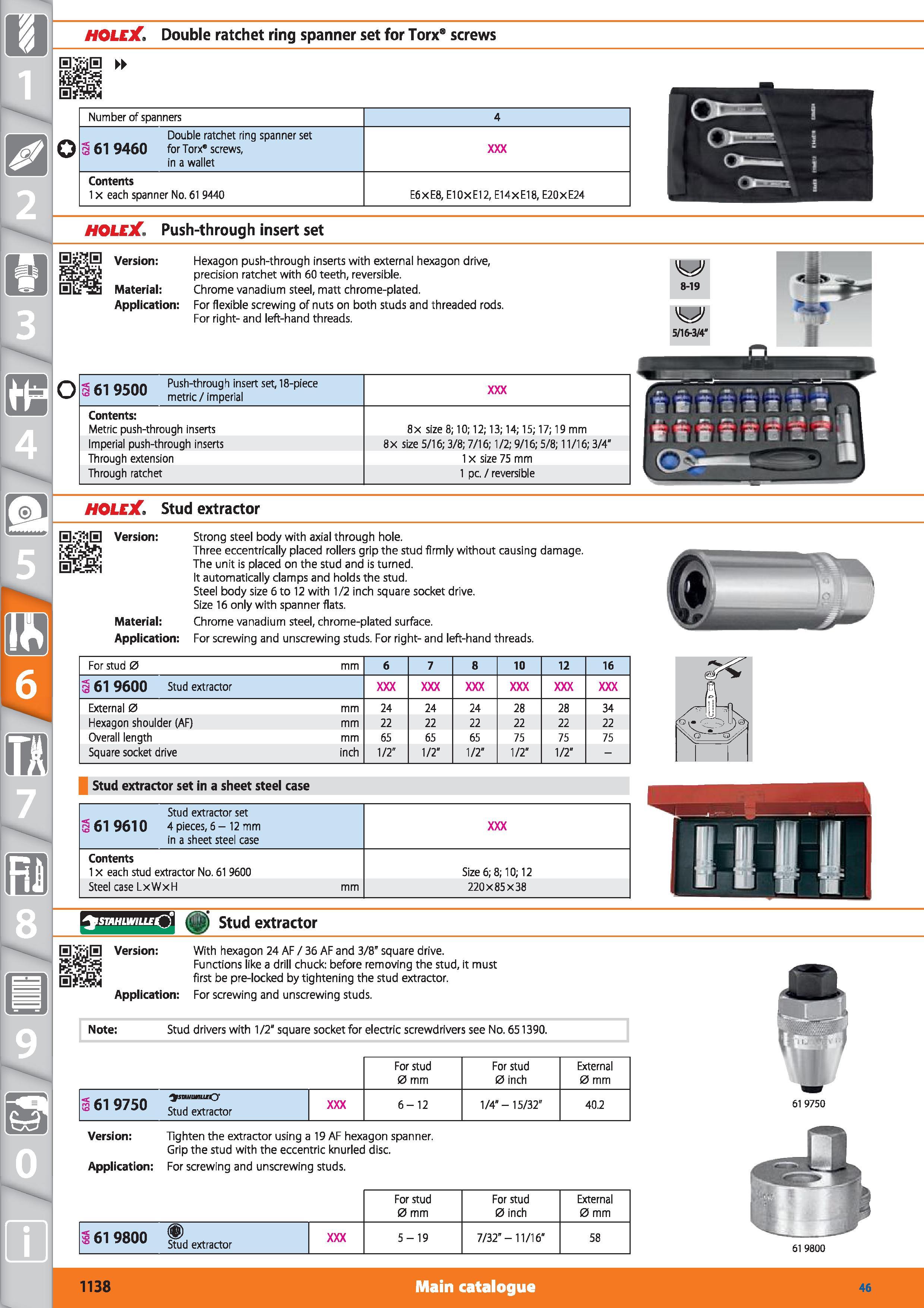

1 HOLEX Double ratchet ring spanner set for Torx8 screws Number of spanners 4 Double ratchet ring spanner set S 61 9460 for Torx” screws, in a wallet Contents 1 x each spanner No. 61 9440 E6XE8, E10XE12, E14XE18, E20XE24 HOLEX Push-through insert set Material Application Hexagon push-through inserts with external hexagon drive, precision ratchet with 60 teeth, reversible. Chrome vanadium steel, matt chrome-plated. For flexible screwing of nuts on both studs and threaded rods. For right- and left-hand threads. c ncnn Push-through insert set, 18-piece S O 1 y UU metric/imperial Contents Metric push-through inserts 8x size 8; 10; 12; 13; 14; 15; 17; 19 mm Imperial push-through inserts 8x size 5/16; 3/8; 7/16; 1/2; 9/16; 5/8; 11/16; 3/4" Through extension 1 x size 75 mm Through ratchet 1 pc. / reversible HOLEX Stud extractor rcil Version Si Material Application Strong steel body with axial through hole. Three eccentrically placed rollers grip the stud firmly without causing damage. The unit is placed on the stud and is turned. It automatically clamps and holds the stud. Steel body size 6 to 12 with 1/2 inch square socket drive. Size 16 only with spanner flats. Chrome vanadium steel, chrome-plated surface. For screwing and unscrewing studs. For right- and left-hand threads. For stud 0 mm 6 7 8 10 12 16 S 61 9600 Stud extractor External 0 mm 24 24 24 28 28 34 Hexagon shoulder (AF) mm 22 22 22 22 22 22 Overall length mm 65 65 65 75 75 75 Square socket drive inch 1/2" 1/2" 1/2" 1/2" 1/2" - Stud extractor set in a sheet steel case Stud extractor set 619610 4 pieces, 6- 12 mm in a sheet steel case Contents 1 x each stud extractor No. 61 9600 Size 6; 8; 10; 12 Steel case LxWxFI mm 220x85x38 Stud extractor SSijB Version With hexagon 24 AF / 36 AF and 3/8” square drive. Functions like a drill chuck before removing the stud, it must first be pre-locked by tightening the stud extractor. Application For screwing and unscrewing studs. Note Stud drivers with 1/2" square socket for electric screwdrivers see No. 651390. 61 9750 Stud extractor For stud 0 mm 6-12 For stud 0 inch 1/4" - 15/32" External 0 mm 40.2 Version Tighten the extractor using a 19 AF hexagon spanner. Grip the stud with the eccentric knurled disc. Application For screwing and unscrewing studs. 61 9800 Stud extractor For stud 0 mm 5-19 For stud 0 inch 7/32"-11/16" External 0 mm 58 61 9750 619800 8-19 W 5/16-3/4“ Main catalogue Hoffmann Group 46
