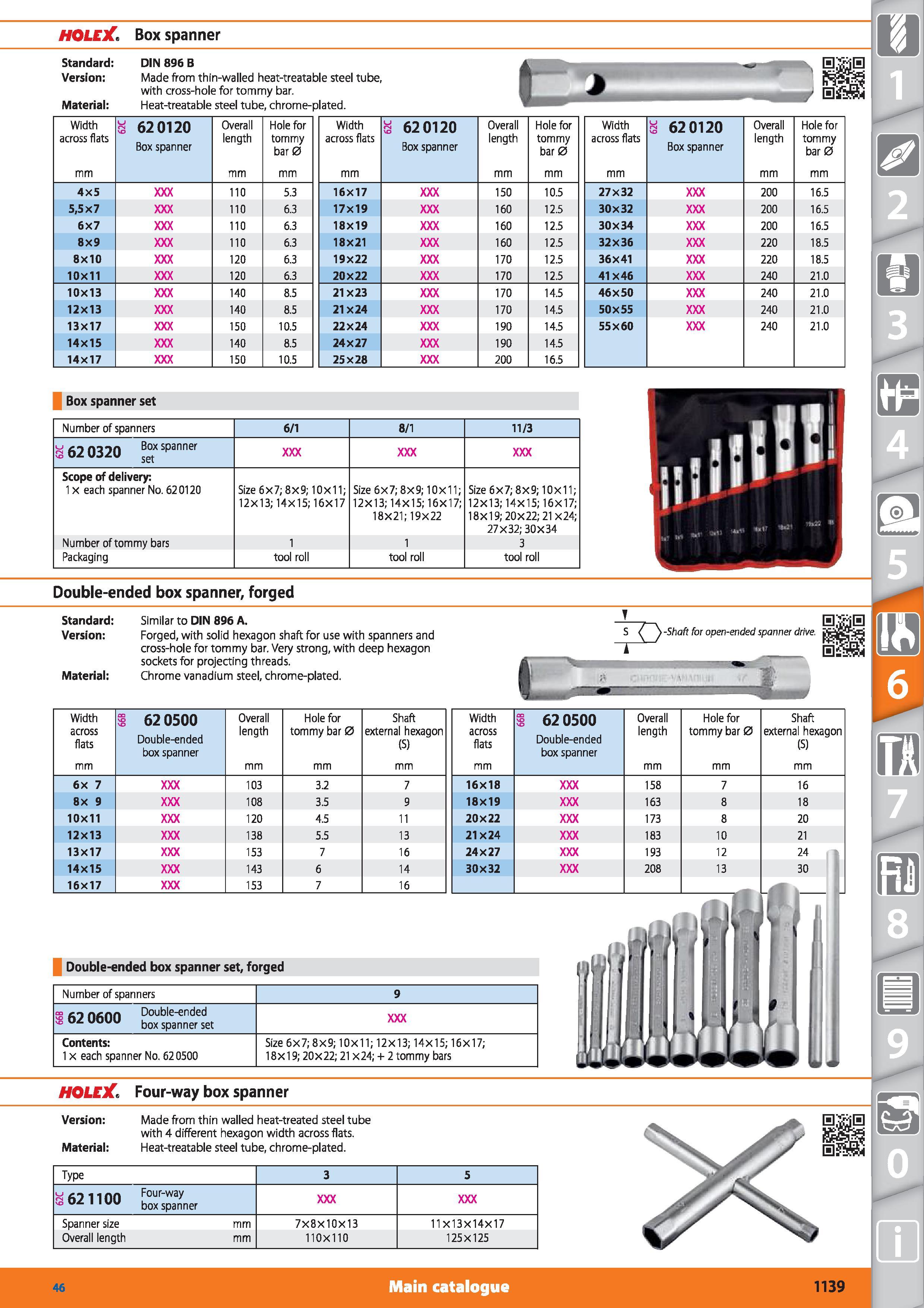

HOLElC, Box spanner Standard DIN 896 B Version Made from thin-walled heat-treatable steel tube, with cross-hole for tommy bar. Material Heat-treatable steel tube, chrome-plated. Width across flats mm s 620120 Box spanner Overall length mm Hole for tommy bar 0 mm Width across flats mm s 620120 Box spanner Overall length mm Hole for tommy bar 0 mm Width across flats mm s 620120 Box spanner Overall length mm Hole for tommy bar 0 mm 4x5 110 5.3 16x17 150 10.5 27x32 200 16.5 5,5x7 110 6.3 17x19 160 12.5 30x32 200 16.5 6X7 110 6.3 18X19 160 12.5 30X34 200 16.5 8X9 110 6.3 18X21 160 12.5 32X36 220 18.5 8X10 120 6.3 19X22 170 12.5 36X41 220 18.5 10X11 120 6.3 20X22 170 12.5 41X46 240 21.0 10X13 140 8.5 21X23 170 14.5 46X50 240 21.0 12X13 140 8.5 21X24 170 14.5 50X55 240 21.0 13X17 150 10.5 22X24 190 14.5 55X60 240 21.0 14X15 140 8.5 24X27 190 14.5 14x17 150 10.5 25x28 200 16.5 Box spanner set Number of spanners 6/1 8/1 11/3 s 62 0320 sB°xsPanner Scope of delivery 1 x each spanner No. 620120 Size 6x7; 8x9; 10x11; 12X13; 14X15; 16X17 Size 6X7; 8x9;10x11; 12x13; 14x15; 16x17; 18X21; 19X22 Size 6x7; 8x9; 10x11; 12x13; 14x15; 16x17; 18X19; 20X22; 21X24; 27x32; 30X34 Number of tommy bars 1 1 3 Packaging tool roll tool roll tool roll ill \0 Double-ended box spanner, forged Standard Similar to DIN 896 A. Version Forged, with solid hexagon shaft for use with spanners and cross-hole for tommy bar. Very strong, with deep hexagon sockets for projecting threads. Material Chrome vanadium steel, chrome-plated. 0 S t y -Shaft for open-ended spanner drive, a Width across flats mm 6x 7 8x 9 10X11 12X13 13X17 14X15 16x17 620500 Double-ended box spanner Overall length mm 103 108 120 138 153 143 153 Hole for tommy bar 0 3.2 3.5 4.5 5.5 7 6 7 Shaft external hexagon (S) 7 9 11 13 16 14 16 Width across flats mm 16X18 18X19 20X22 21X24 24X27 30X32 62 0500 Double-ended box spanner Shaft external hexagon (S) Double-ended box spanner set, forged Number of spanners 9 162 0600 Double-ended vuvv box spanner set Contents 1 x each spanner No. 620500 Size 6X7; 8X9; 10x11; 12x13; 14x15; 16x17; 18x19; 20x22; 21 x24; + 2 tommy bars HOLEX Four-way box spanner Version Made from thin walled heat-treated steel tube with 4 different hexagon width across flats. Material Heat-treatable steel tube, chrome-plated. Type 3 5 s 621100 ner Spanner size mm 7X8X10X13 11X13X14X17 Overall length mm 110X110 125X125 m Main catalogue Hoffmann Group 46 1139
