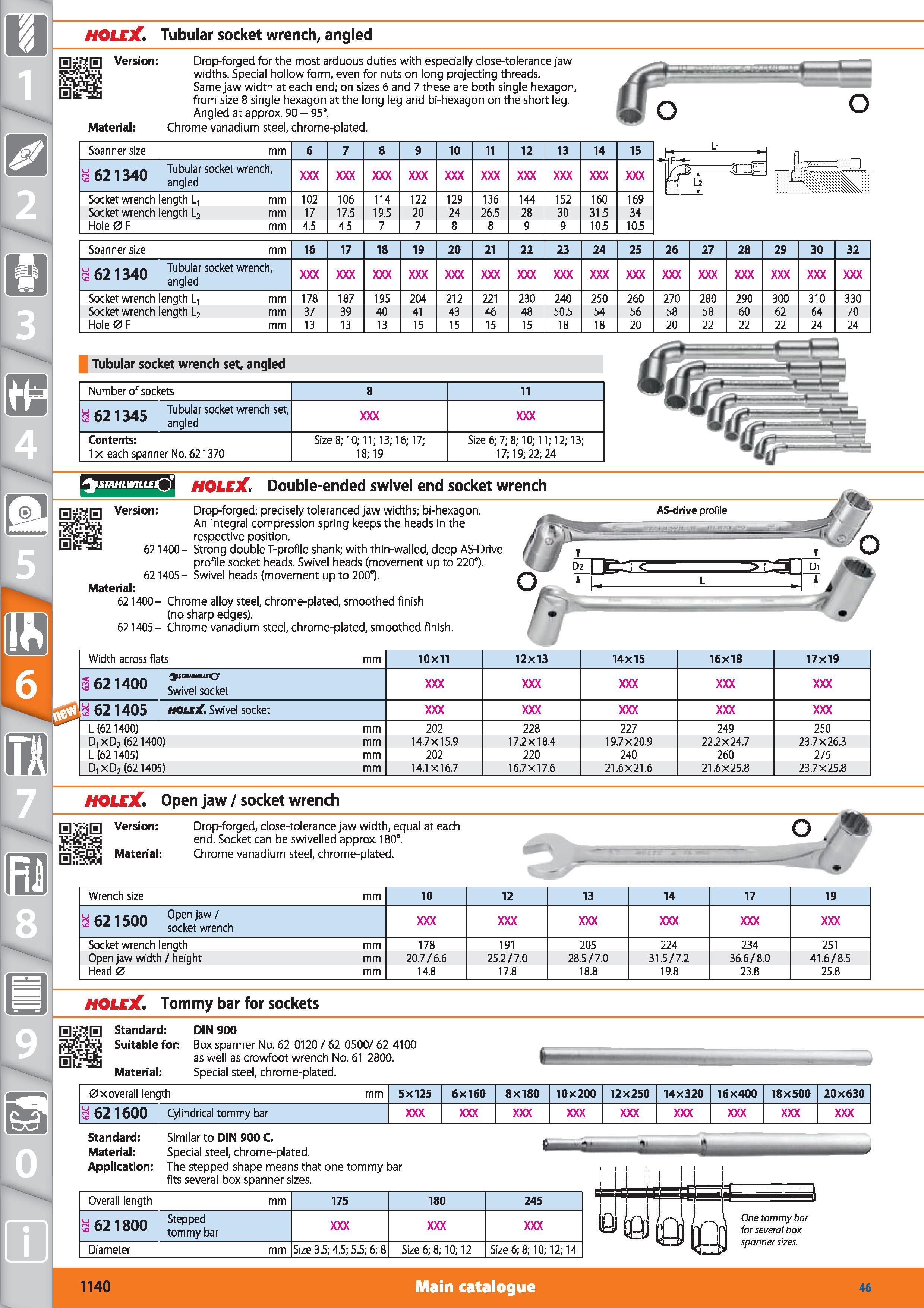

HOLEX Tubular socket wrench, angled 0 Version Material Drop-forged for the most arduous duties with especially dose-tolerance jaw widths. Special hollow form, even for nuts on long projecting threads. Same jaw width at each end; on sizes 6 and 7 these are both single hexagon, from size 8 single hexagon at the long leg and bi-hexagon on the short leg. Angled at approx. 90 - 95°. Chrome vanadium steel, chrome-plated. Spanner size mm 6 7 8 9 10 11 12 13 14 15 il- r-n Tubular socket wrench, 0 62 1340 angled yyh 2jj _ iiir Tubular socket wrench set, a 62 1345 angled Contents 1 x each spanner No. 621370 Size 8; 10; 11; 13; 16; 17; 18; 19 Size 6; 7; 8; 10; 11; 12; 13; 17; 19; 22; 24 STAHLWILLEt ) HOLEX Double-ended swivel end socket wrench %- Version Drop-forged; precisely toleranced jaw widths; bi-hexagon. An integral compression spring keeps the heads in the respective position. 621400- Strong double T-profile shank; with thin-walled, deep AS-Drive profile socket heads. Swivel heads (movement up to 220°). 621405- Swivel heads (movement up to 200°). Material 621400- Chrome alloy steel, chrome-plated, smoothed finish (no sharp edges). 62 1405- Chrome vanadium steel, chrome-plated, smoothed finish. ff AS-drive profile TE3 O F. Wo i it Width across flats mm 10x11 12x13 14x15 16x18 17x19 s 62 MOO s t 3 62 1405 HOLCX. Swivel socket L (621400) mm 202 228 227 249 250 D,xD2 (621400) mm 14.7X15.9 17.2X18.4 19.7X20.9 22.2x24.7 23.7X26.3 L (621405) mm 202 220 240 260 275 D,xD2 (621405) mm 14.1x16.7 16.7x17.6 21.6x21.6 21.6x25.8 23.7x25.8 HOLEX Open jaw / socket wrench o m w. Version Drop-forged, dose-tolerance jaw width, equal at each end. Socket can be swivelled approx. 180°. Material Chrome vanadium steel, chrome-plated. Wrench size mm 10 12 13 14 17 19 S 621500 X'Z'nch Socket wrench length mm 178 191 205 224 234 251 Open jaw width / height mm 20.7/6.6 25.2/7.0 28.5/7.0 31.5/7.2 36.6/8.0 41.6/8.5 Head 0 mm 14.8 17.8 18.8 19.8 23.8 25.8 HOLEX Tommy bar for sockets Standard Suitable for DIN 900 fifc as well as crowfoot wrench No. 61 2800. Material Special steel, chrome-plated. -1 0xoverall length mm 5x125 6x160 8x180 10x200 12x250 14x320 16x400 18x500 20x630 3 62 1600 Cylindrical tommy bar Material Special steel, chrome-plated. Application The stepped shape means that one tommy bar fits several box spanner sizes. Overall length mm 175 180 245 3 621800 Stepped tommy bar Diameter mm Size 3.5; 4.5; 5.5; 6; 8 Size 6; 8; 10; 12 Size 6; 8; 10; 12; 14 spanner sizes. 1140 Main catalogue Hoffmann Group 46
