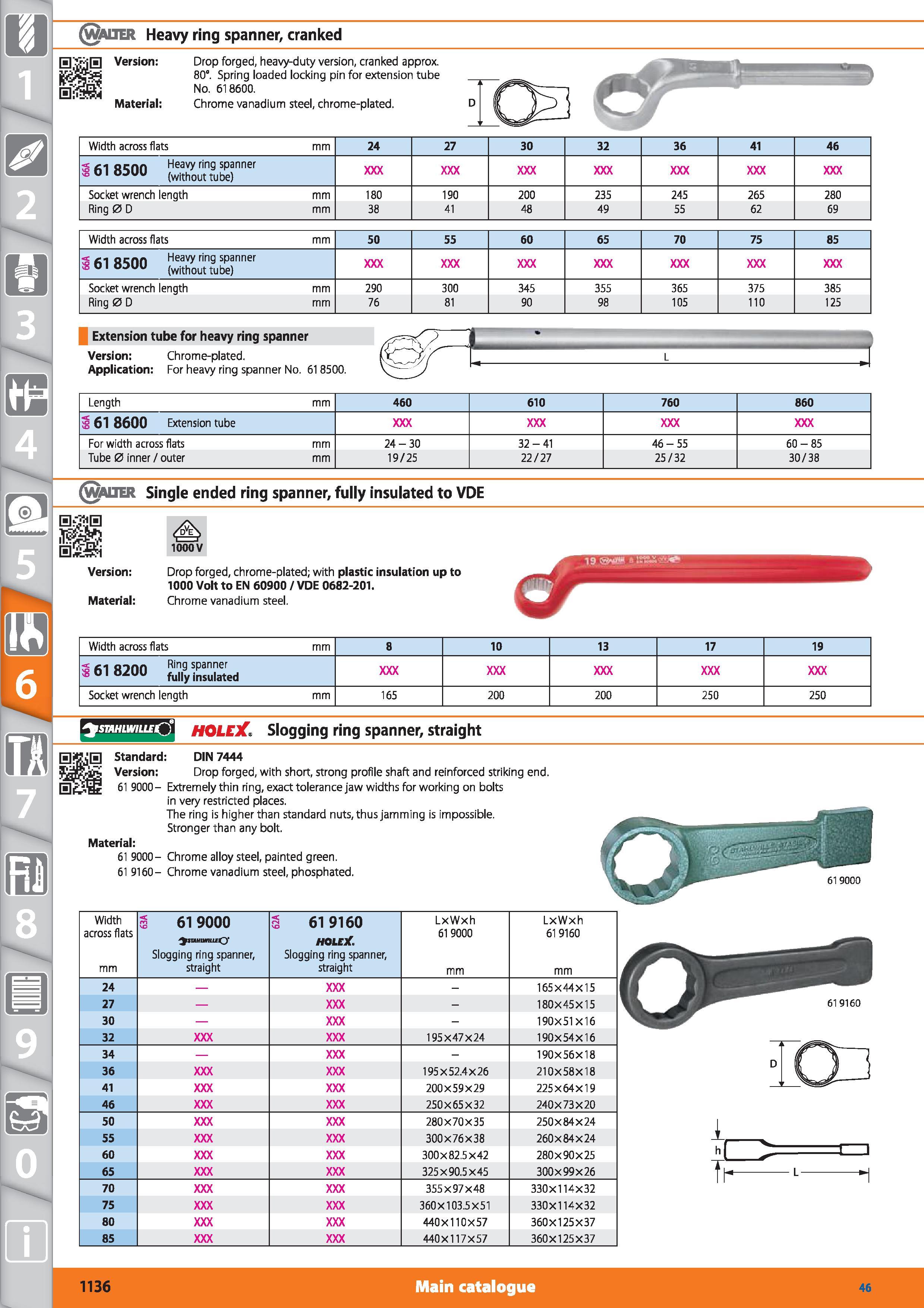

(WAIJER Heavy ring spanner, cranked Material Drop forged, heavy-duty version, cranked approx. 80°. Spring loaded locking pin for extension tube No. 618600. Chrome vanadium steel, chrome-plated. D Width across flats mm 24 27 30 32 36 41 46 S fil 8500 Heavv rin9 sPanner O 1 ODUU (without tube) Socket wrench length mm 180 190 200 235 245 265 280 Ring 0 D mm 38 41 48 49 55 62 69 Width across flats mm 50 55 60 65 70 75 85 fii asoo Heavy ring spanner 8 D 1 ODUU (without tube) Socket wrench length mm 290 300 345 355 365 375 385 Ring 0 D mm 76 81 90 98 105 110 125 Extension tube for heavy ring spanner Version Chrome-plated. Application For heavy ring spanner No. 618500. Length mm 460 610 760 860 jg 61 8600 Extension tube For width across flats mm 24-30 32-41 46-55 60-85 Tube 0 inner / outer mm 19/25 22/27 25/32 30/38 AI3ER Single ended ring spanner, fully insulated to VDE 0 0 1000V Version Material Drop forged, chrome-plated; with plastic insulation up to 1000 Volt to EN 60900 / VDE 0682-201. Chrome vanadium steel. Width across flats mm 8 10 13 17 19 61 8200 Rin9 spanner S O 1 twuu fuMy insu ated Socket wrench length mm 165 200 200 250 250 STAHLWILLEf ) HOLEJC1 Slogging ring spanner, straight 0 ,i0 Standard DIN 7444 figsiS Version Drop forged, with short, strong profile shaft and reinforced striking end. rilglvS 61 9000- Extremely thin ring, exact tolerance jaw widths for working on bolts in very restricted places. The ring is higher than standard nuts, thus jamming is impossible. Stronger than any bolt. Material 61 9000- Chrome alloy steel, painted green. 61 9160- Chrome vanadium steel, phosphated. 61 9000 Width across flats mm 619000 Slogging ring spanner, straight 3 619160 holeX. Slogging ring spanner, straight LxWxh 61 9000 mm LxWxh 61 9160 mm 24 - 165 x 44x15 27 - 180x 45x15 30 - 190X51X16 32 195X47X24 190x54x16 34 - 190x 56x18 36 195 x 52.4 x 26 210X58X18 41 200x59x29 225 x 64x19 46 250X65X32 240X 73 X 20 50 280x70x35 250X 84X 24 55 300x76x38 260x 84x 24 60 300x82.5x42 280x 90x 25 65 325 x 90.5 x45 300x99x26 70 355x97x48 330x114x32 75 360X103.5X51 330X114X32 80 440X110 X 57 360X125X37 85 440X117 X 57 360X125X37 3=1 1136 Main catalogue Hoffmann Group 46
