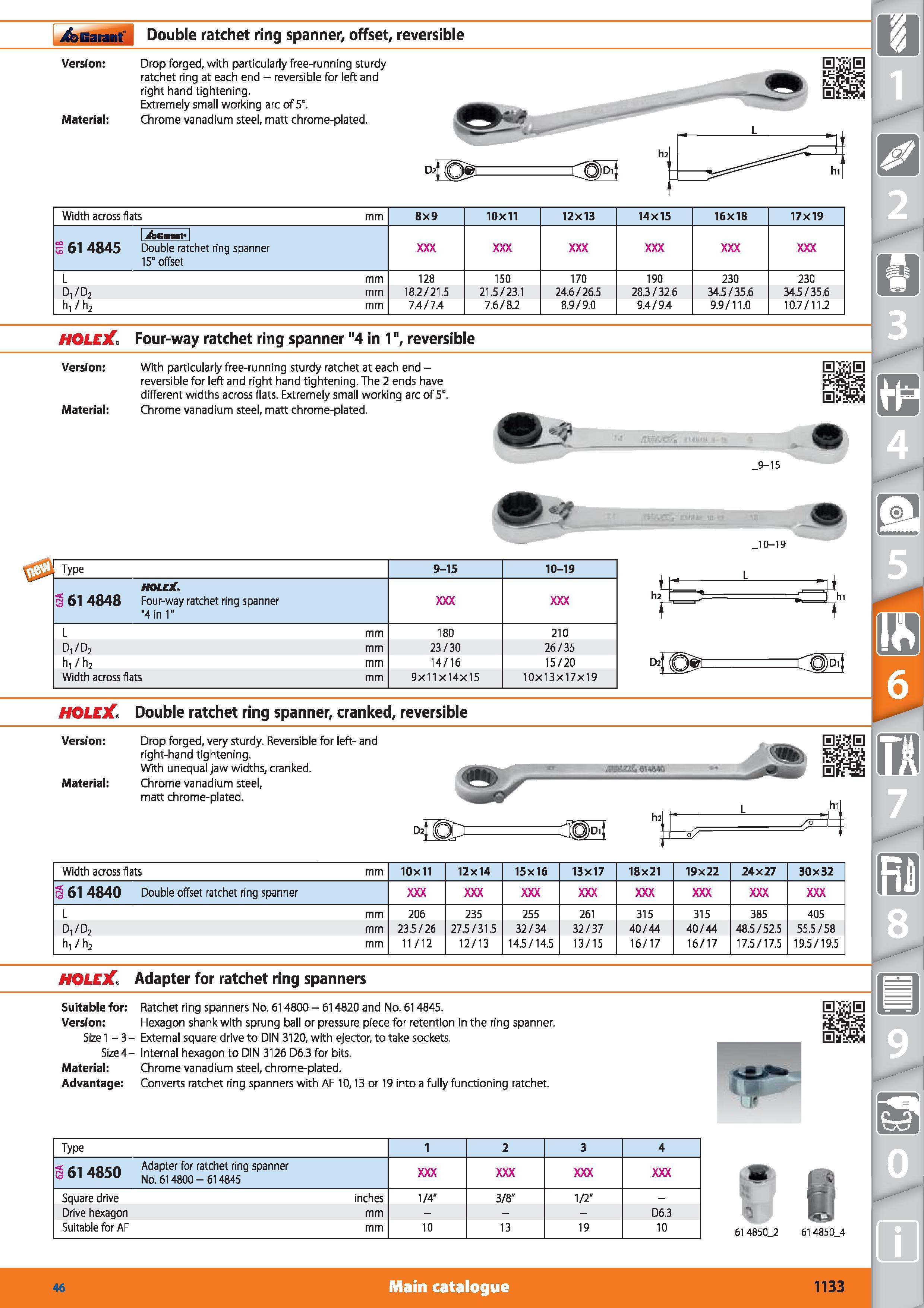

Garant Double ratchet ring spanner, offset, reversible Version Material Drop forged, with particularly free-running sturdy ratchet ring at each end - reversible for left and right hand tightening. Extremely small working arc of 5°. Chrome vanadium steel, matt chrome-plated. D2I IDi HOLEX Four-way ratchet ring spanner "4 in 1", reversible Version Material With particularly free-running sturdy ratchet at each end -reversible for left and right hand tightening. The 2 ends have different widths across flats. Extremely small working arc of 5°. Chrome vanadium steel, matt chrome-plated. Width across flats mm 8X9 10X11 12X13 14X15 16X18 17X19 1 jfecmnt 1 5 61 4845 Double ratchet ring spanner 15° offset L mm 128 150 170 190 230 230 d,/d2 mm 18.2/21.5 21.5/23.1 24.6/26.5 28.3/32.6 34.5/35.6 34.5/35.6 h,/h2 mm 7.4/7.4 7.6/8.2 8.9/9.0 9.4/9.4 9.9/11.0 10.7/11.2 _9 15 Type 9-15 10-19 s 61 4848 holejC, Four-way ratchet ring spanner "4 in 1" L mm 180 210 d,/d2 mm 23/30 26/35 h, /h. mm 14/16 15/20 Width across flats mm 9x11x14x15 10x13x17x19 JO-19 h2 D2 O' X O Di HOLEX Double ratchet ring spanner, cranked, reversible Version Material Drop forged, very sturdy. Reversible for left- and right-hand tightening. With unequal jaw widths, cranked. Chrome vanadium steel, matt chrome-plated. Di hi =t Width across flats mm 10x11 12x14 15x16 13x17 18x21 19x22 24x27 30x32 61 4840 Double offset ratchet ring spanner L mm 206 235 255 261 315 315 385 405 d,/d2 mm 23.5/26 27.5/31.5 32/34 32/37 40/44 40/44 48.5/52.5 55.5/58 h,/h2 mm 11/12 12/13 14.5/14.5 13/15 16/17 16/17 17.5/17.5 19.5/19.5 HOLEX Adapter for ratchet ring spanners Suitable for Ratchet ring spanners No. 614800 - 614820 and No. 614845. Version Hexagon shank with sprung ball or pressure piece for retention in the ring spanner. Size 1 - 3 - External square drive to DIN 3120, with ejector, to take sockets. Size4- Internal hexagon to DIN 3126 D6.3 for bits. Material Chrome vanadium steel, chrome-plated. Advantage Converts ratchet ring spanners with AF 10,13 or 19 into a fully functioning ratchet. Type 1 2 3 4 3 61 4850 Adapter for ratchet ring spanner No. 614800 - 614845 Square drive inches 1/4" 3/8" 1/2" - Drive hexagon mm - D6.3 Suitable for AF mm 10 13 19 10 61 4850_2 61 4850_4 m Main catalogue Hoffmann Group 46 1133
