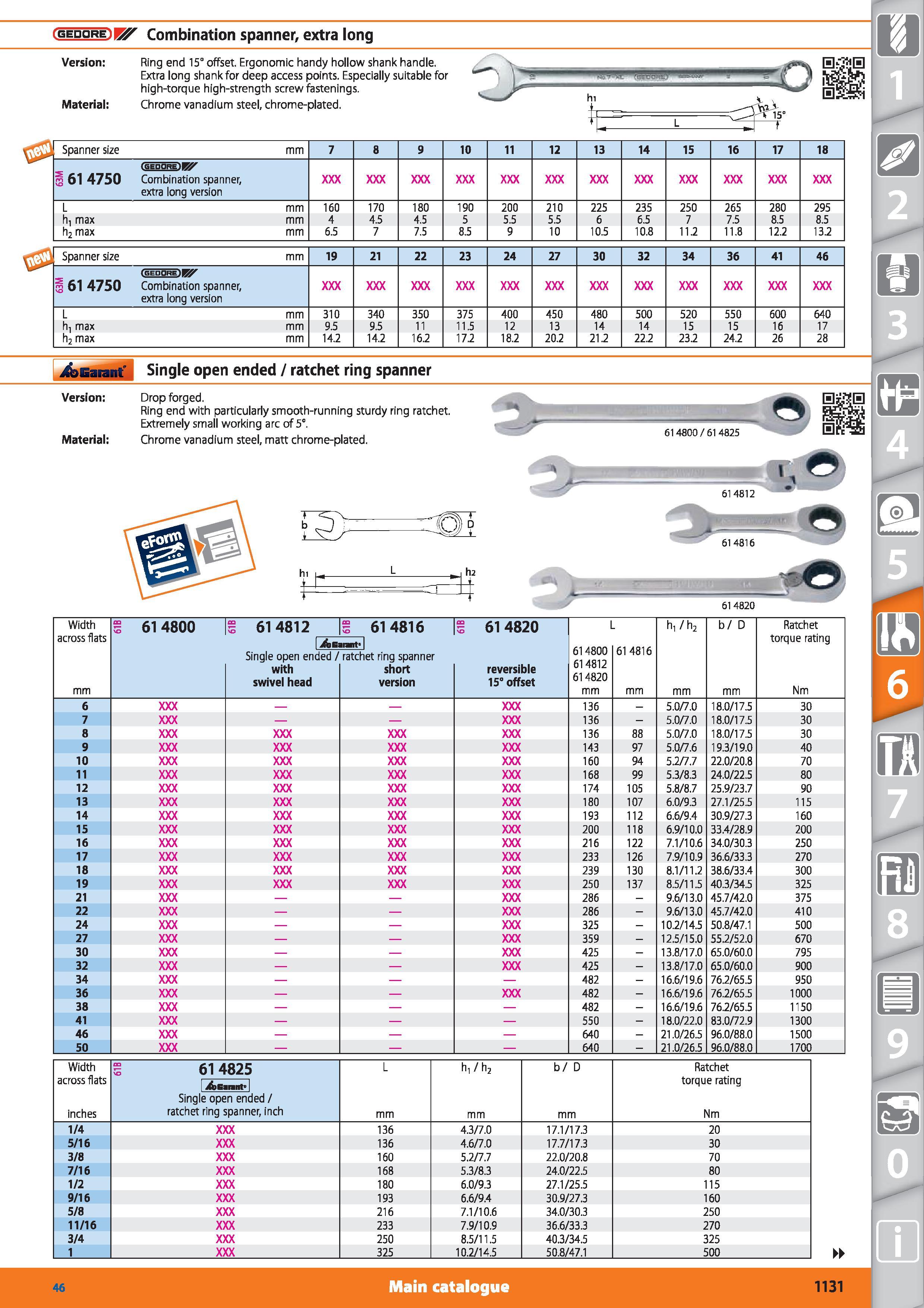

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1131 1131 ENG Lab2u

dmHDP Combination spanner, extra long Version Material Ring end 15° offset. Ergonomic handy hollow shank handle. Extra long shank for deep access points. Especially suitable for high-torque high-strength screw fastenings. Chrome vanadium steel, chrome-plated. i .11 15” Spanner size mm 7 8 9 10 11 12 13 14 15 16 17 18 GEDORE) gy 1 61 4750 Combination spanner, extra long version L mm 160 170 180 190 200 210 225 235 250 265 280 295 h, max mm 4 4.5 4.5 5 5.5 5.5 6 6.5 7 7.5 8.5 8.5 h2 max mm 6.5 7 7.5 8.5 9 10 10.5 10.8 11.2 11.8 12.2 13.2 Spanner size mm 19 21 22 23 24 27 30 32 34 36 41 46 (GEDORE) 3 61 4750 Combination spanner, extra long version L mm 310 340 350 375 400 450 480 500 520 550 600 640 h, max mm 9.5 9.5 11 11.5 12 13 14 14 15 15 16 17 h2 max mm 14.2 14.2 16.2 17.2 18.2 20.2 21.2 22.2 23.2 24.2 26 28 jSoEannr Single open ended / ratchet ring spanner Version Material Drop forged. Ring end with particularly smooth-running sturdy ring ratchet. Extremely small working arc of 5°. Chrome vanadium steel, matt chrome-plated. 614812 SU 61 4820 Width across flats s 614800 s 614812 s 614816 s 614820 h,/h2 b/ D Ratchet torque rating i&Eamt' 1 614800 614812 614820 mm 614816 mm Single open ended / with swivel head ratchet ring spanner short version reversible 15° offset mm Nm 6 136 5.0/7.0 18.0/17.5 30 7 136 - 5.0/7.0 18.0/17.5 30 8 136 88 5.0/7.0 18.0/17.5 30 9 143 97 5.0/7.6 19.3/19.0 40 10 160 94 5.2/7.7 22.0/20.8 70 11 168 99 5.3/8.3 24.0/22.5 80 12 174 105 5.8/8.7 25.9/23.7 90 13 180 107 6.0/9.3 27.1/25.5 115 14 193 112 6.6/9.4 30.9/27.3 160 15 200 118 6.9/10.0 33.4/28.9 200 16 216 122 7.1/10.6 34.0/30.3 250 17 233 126 7.9/10.9 36.6/33.3 270 18 239 130 8.1/11.2 38.6/33.4 300 19 250 137 8.5/11.5 40.3/34.5 325 21 286 9.6/13.0 45.7/42.0 375 22 286 - 9.6/13.0 45.7/42.0 410 24 325 10.2/14.5 50.8/47.1 500 27 359 12.5/15.0 55.2/52.0 670 30 425 - 13.8/17.0 65.0/60.0 795 32 425 - 13.8/17.0 65.0/60.0 900 34 482 16.6/19.6 76.2/65.5 950 36 482 - 16.6/19.6 76.2/65.5 1000 38 482 16.6/19.6 76.2/65.5 1150 41 550 18.0/22.0 83.0/72.9 1300 46 640 21.0/26.5 96.0/88.0 1500 50 640 - 21.0/26.5 96.0/88.0 1700 Width across flats inches 5 614825 J&GMWlt" Single open ended / ratchet ring spanner, inch L mm h,/h2 mm b/ D mm Ratchet torque rating Nm 1/4 136 4.3/7.0 17.1/17.3 20 5/16 136 4.6/7.0 17.7/17.3 30 3/8 160 5.2/7.7 22.0/20.8 70 7/16 168 5.3/S.3 24.0/22.5 80 1/2 180 6.0/9.3 27.1/25.5 115 9/16 193 6.6/9.4 30.9/27.3 160 5/8 216 7.1/10.6 34.0/30.3 250 11/16 233 7.9/10.9 36.6/33.3 270 3/4 250 8.5/11.5 40.3/34.5 325 1 325 10.2/14.5 50.8/47.1 500 Main catalogue Hoffmann Group 46 1131
