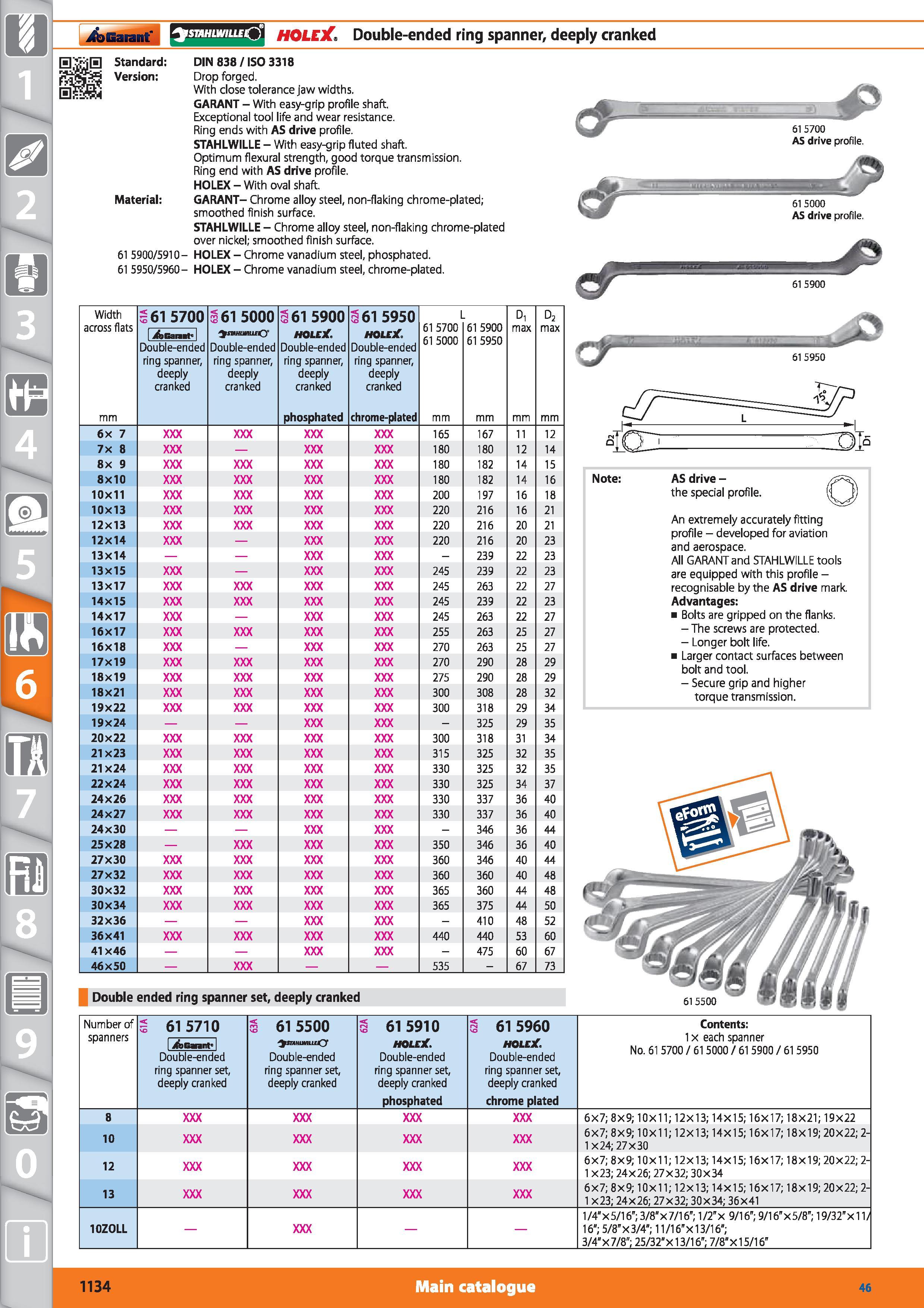

SMffur/ufiO HOLEX Double-ended ring spanner, deeply cranked Standard Version DIN 838/ISO3318 Drop forged. With close tolerance jaw widths. GARANT - With easy-grip profile shaft. Exceptional tool life and wear resistance. Ring ends with AS drive profile. STAHLWILLE - With easy-grip fluted shaft. Optimum flexural strength, good torque transmission. Ring end with AS drive profile. HOLEX-With oval shaft. Material GARANT- Chrome alloy steel, non-flaking chrome-plated; smoothed finish surface. STAHLWILLE - Chrome alloy steel, non-flaking chrome-plated over nickel; smoothed finish surface. 61 5900/5910- HOLEX - Chrome vanadium steel, phosphated. 61 5950/5960- HOLEX - Chrome vanadium steel, chrome-plated. Width across flats 61 5700 jfecanit 1 Double-ended ring spanner, deeply cranked 61 5000 SHHUHUfO Double-ended ring spanner, deeply cranked 61 5900 HOLEX Double-ended ring spanner, deeply cranked 61 5950 holoC. Double-ended ring spanner, deeply cranked 61 5700 615000 615900 61 5950 D, max d2 max mm phosphated chrome-plated mm 6x 7 165 167 11 12 7x 8 180 180 12 14 8x 9 180 182 14 15 8x10 180 182 14 16 10X11 200 197 16 18 10x13 220 216 16 21 12x13 220 216 20 21 12X14 220 216 20 23 13X14 - 239 22 23 13x15 245 239 22 23 13x17 245 263 22 27 14x15 245 239 22 23 14X17 245 263 22 27 16X17 255 263 25 27 16X18 270 263 25 27 17x19 270 290 28 29 18x19 275 290 28 29 18X21 300 308 28 32 19X22 300 318 29 34 19x24 - 325 29 35 20x22 300 318 31 34 21x23 315 325 32 35 21X24 330 325 32 35 22X24 330 325 34 37 24X26 330 337 36 40 24x27 330 337 36 40 24x30 - 346 36 44 25X28 350 346 36 40 27X30 360 346 40 44 27x32 360 360 40 48 30x32 365 360 44 48 30X34 365 375 44 50 32X36 - 410 48 52 36X41 440 440 53 60 41x46 - 475 60 67 46x50 535 - 67 73 Double ended ring spanner set, deeply cranked Note AS drive - the special profile. An extremely accurately fitting profile - developed for aviation and aerospace. All GARANT and STAHLWILLE tools are equipped with this profile -recognisable by the AS drive mark Advantages Bolts are gripped on the flanks. - The screws are protected. - Longer bolt life. Larger contact surfaces between bolt and tool. - Secure grip and higher torque transmission. Number of spanners 615710 1 jfecnant' 1 Double-ended ring spanner set, deeply cranked 615500 samxmiU y Double-ended ring spanner set, deeply cranked 615910 HOLEX Double-ended ring spanner set, deeply cranked phosphated 61 5960 HOLEX Double-ended ring spanner set, deeply cranked chrome plated Contents 1 x each spanner No. 61 5700 / 61 5000 / 61 5900 / 61 5950 8 6x7; 8x9; 10x11; 12x13; 14x15; 16x17; 18x21; 19x22 10 6x7; 8x9; 10x11; 12x13; 14x15; 16x17; 18x19; 20x22; 2-1x24; 27x30 12 6x7; 8x9; 10x11; 12x13; 14x15; 16x17; 18x19; 20x22; 2-1x23; 24x26; 27x32; 30x34 13 6x7; 8x9; 10x11; 12x13; 14x15; 16x17; 18x19; 20x22; 2-1 x23; 24x26; 27x32; 30x34; 36x41 lOZOLL 1/4"x5/16”; 3/8"x 7/16”; 1/2” x 9/16”; 9/16”x5/8"; 19/32”x 11/ 16"; 5/8” X 3/4"; 11 /16” X13/16"; 3/4"X 7/8"; 25/32‘X 13/16"; 7/8"X 15/16” 1134 Main catalogue Hoffmann Group 46
