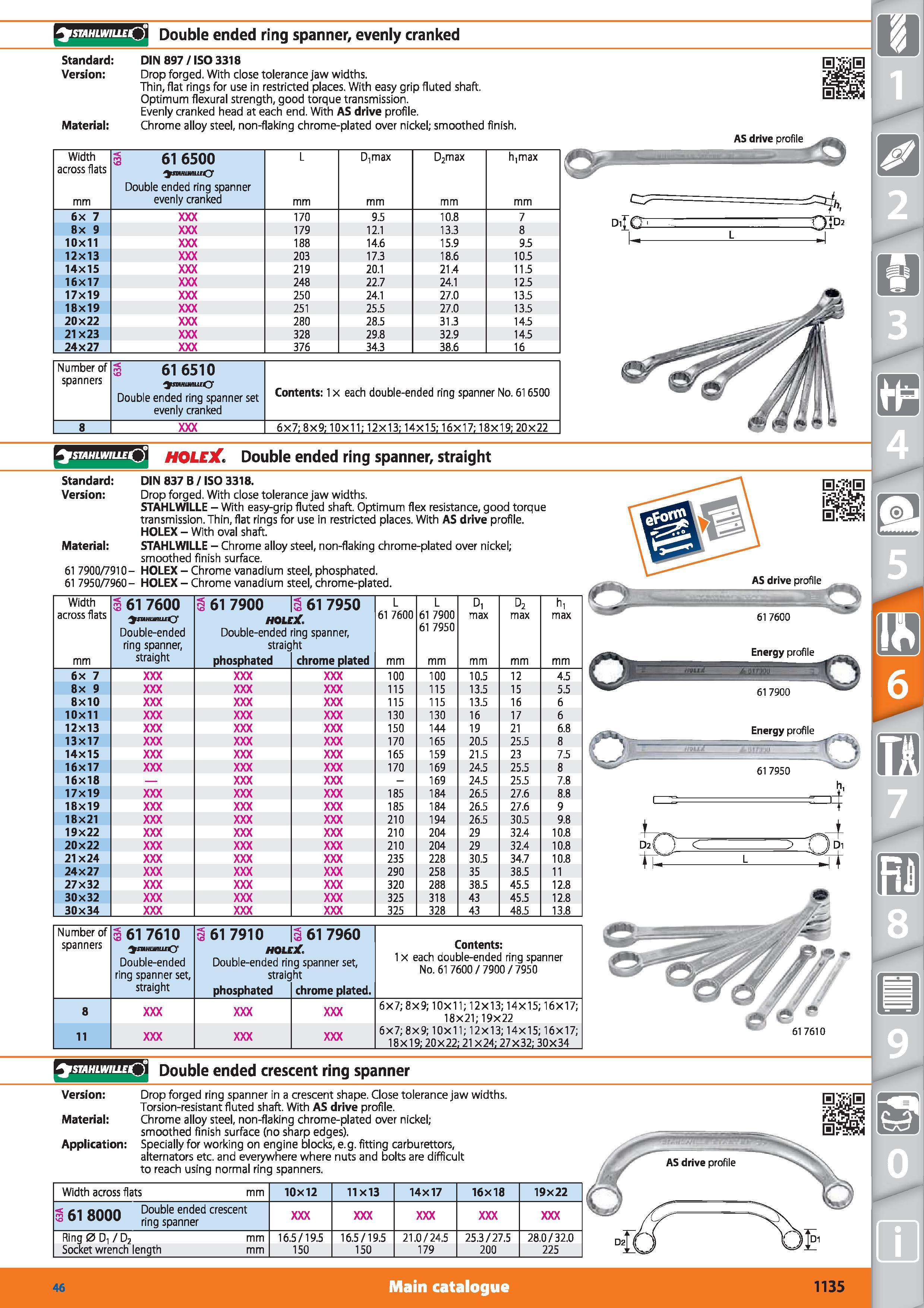

stahlwhieQ Double ended ring spanner, evenly cranked Standard Version Material DIN 897/ISO3318 Drop forged. With close tolerance jaw widths. Thin, flat rings for use in restricted places. With easy grip fluted shaft. Optimum flexural strength, good torque transmission. Evenly cranked head at each end. With AS drive profile. Chrome alloy steel, non-flaking chrome-plated over nickel; smoothed finish. AS drive profile Width across flats mm 3 616500 SHHUUUfO Double ended ring spanner evenly cranked L mm D,max mm D2max mm h,max mm 6x 7 170 9.5 10.8 7 8x 9 179 12.1 13.3 8 10x11 188 14.6 15.9 9.5 12x13 203 17.3 18.6 10.5 14x15 219 20.1 21.4 11.5 16x17 248 22.7 24.1 12.5 17x19 250 24.1 27.0 13.5 18x19 251 25.5 27.0 13.5 20x22 280 28.5 31.3 14.5 21X23 328 29.8 32.9 14.5 24X27 376 34.3 38.6 16 D'icn CB Number of spanners 616510 SHHUUUfO Double ended ring spanner set evenly cranked Contents 1 x each double-ended ring spanner No. 616500 8 6X7; 8X9; 10x11; 12x13; 14x15; 16x17; 18x19; 20x22 stahlwilieQ HOLEX Double ended ring spanner, straight Standard Version Material 61 7900/7910- DIN 837 B / ISO 3318. Drop forged. With close tolerance jaw widths. STAHLWILLE - With easy-grip fluted shaft. Optimum flex resistance, good torque transmission. Thin, flat rings for use in restricted places. With AS drive profile. HOLEX - With oval shaft. STAHLWILLE - Chrome alloy steel, non-flaking chrome-plated over nickel; smoothed finish surface. HOLEX - Chrome vanadium steel, phosphated. 61 7950/7960- HOLEX - Chrome vanadium steel, chrome-plated. Width across flats mm 3 61 7600 SOHUHU y Double-ended ring spanner, straight 3 61 7900 HOLl Double-ended strait phosphated 3 61 7950 y, ring spanner, ht chrome plated L 61 7600 mm L 61 7900 61 7950 mm D, max mm max mm hi max mm 6x 7 100 100 10.5 12 4.5 8x 9 115 115 13.5 15 5.5 8x10 115 115 13.5 16 6 10x11 130 130 16 17 6 12x13 150 144 19 21 6.8 13x17 170 165 20.5 25.5 8 14x15 165 159 21.5 23 7.5 16x17 170 169 24.5 25.5 8 16x18 - 169 24.5 25.5 7.8 17x19 185 184 26.5 27.6 8.8 18x19 185 184 26.5 27.6 9 18x21 210 194 26.5 30.5 9.8 19x22 210 204 29 32.4 10.8 20x22 210 204 29 32.4 10.8 21x24 235 228 30.5 34.7 10.8 24x27 290 258 35 38.5 11 27x32 320 288 38.5 45.5 12.8 30x32 325 318 43 45.5 12.8 30x34 325 328 43 48.5 13.8 Number of spanners 3 61 7610 Double-ended ring spanner set, straight 3 61 7910 HOLl Double-ended rir strait phosphated 3 61 7960 g spanner set, ht chrome plated. Contents 1 x each double-ended ring spanner No. 61 7600/7900/7950 8 6X7;8X9; 10x11; 12x13; 14x15; 16x17; 18x21; 19x22 11 6x7;8x9; 10x11; 12x13; 14x15; 16x17; 18X19; 20X22; 21X24; 27x32; 30x34 SMIMIVfUfO Double ended crescent ring spanner Version Drop forged ring spanner in a crescent shape. Close tolerance jaw widths. Torsion-resistant fluted shaft. With AS drive profile. Material Chrome alloy steel, non-flaking chrome-plated over nickel; smoothed finish surface (no sharp edges). Application Specially for working on engine blocks, e.g. fitting carburettors, alternators etc. and everywhere where nuts and bolts are difficult to reach using normal ring spanners. Width across flats mm 10x12 11x13 14x17 16x18 19x22 ai onnn Double ended crescent 10 8000 ri n g spanner Ring 0 Di /D2 mm 16.5/19.5 16.5/19.5 21.0/24.5 25.3/27.5 28.0/32.0 Socket wrench length mm 150 150 179 200 225 61 7900 Energy profile 61 7950 it Main catalogue Hoffmann Group 46 1135
