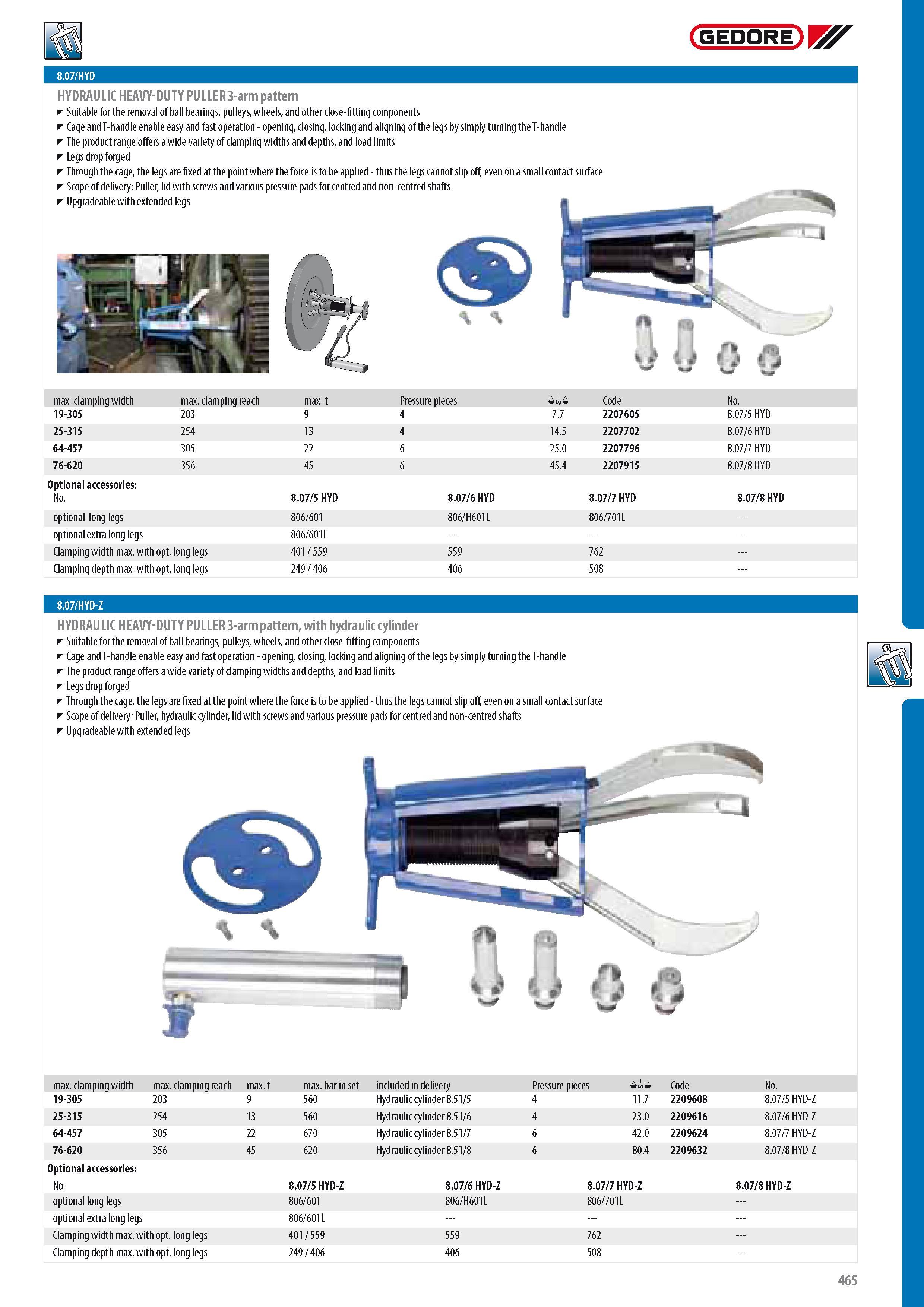

467 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.465

Каталог GEDORE 2014 Слесарный инструмент Стр. 465 0467 ENG Lab2u

GEDORE HYDRAULIC HEAVY-DUTY PULLER 3-arm pattern Suitable for the removal of ball bearings pulleys wheels and other close-fitting components Cage and T-handle enable easy and fast operation - opening closing locking and aligning of the legs by simply turning the T-handle The product range offers a wide variety of clamping widths and depths and load limits Legs drop forged Through the cage the legs are fixed at the point where the force is to be applied - thus the legs cannot slip off even on a small contact surface Scope of delivery Puller lid with screws and various pressure pads for centred and non-centred shafts Upgradeable with extended legs max. clamping width max. clamping reach max. Pressure pieces -i0 Code No. 19-305 203 9 4 7.7 2207605 8.07 5 HYD 25-315 254 13 4 14.5 2207702 8.07 6 HYD 64-457 305 22 6 25.0 2207796 8.07 7 HYD 76-620 356 45 6 45.4 2207915 8.07 8 HYD Optional accessories No. 8.07 5 HYD 8.07 6 HYD 8.07 7 HYD 8.07 8 HYD optional long legs 806 601 806 H601L 806 701L - optional extra long legs 806 601L Clamping width max. with opt. long legs 401 559 559 762 - Clamping depth max. with opt. long legs 249 406 406 508 - 8.07 HYD-Z HYDRAULIC HEAVY-DUTY PULLER 3-arm pattern with hydraulic cylinder Suitable for the removal of ball bearings pulleys wheels and other close-fitting components Cage and T-handle enable easy and fast operation - opening closing locking and aligning of the legs by simply turning the T-handle The product range offers a wide variety of clamping widths and depths and load limits Legs drop forged T hrough the cage the legs are fixed at the point where the force is to be applied-thus the legs cannot slip off even on a small contact surface Scope of delivery Puller hydraulic cylinder lid with screws and various pressure pads for centred and non-centred shafts Upgradeable with extended legs 1 max. clamping width max. clamping reach max. max. bar in set included in delivery Pressure pieces 0 Code No. 19-305 203 9 560 Hydraulic cylinder 8.51 5 4 11.7 2209608 8.07 5 HYD-Z 25-315 254 13 560 Hydraulic cylinder 8.51 6 4 23.0 2209616 8.07 6 HYD-Z 64-457 305 22 670 Hydraulic cylinder 8.51 7 6 42.0 2209624 8.07 7 HYD-Z 76-620 356 45 620 Hydraulic cylinder 8.51 8 6 80.4 2209632 8.07 8 HYD-Z Optional accessories No. 8.07 5 HYD-Z 8.07 6 HYD-Z 8.07 7 HYD-Z 8.07 8 HYD-Z optional long legs 806 601 806 H601L 806 701L - optional extra long legs 806 601L Clamping width max. with opt. long legs 401 559 559 762 - Clamping depth max. with opt. long legs 249 406 406 508 - 465
