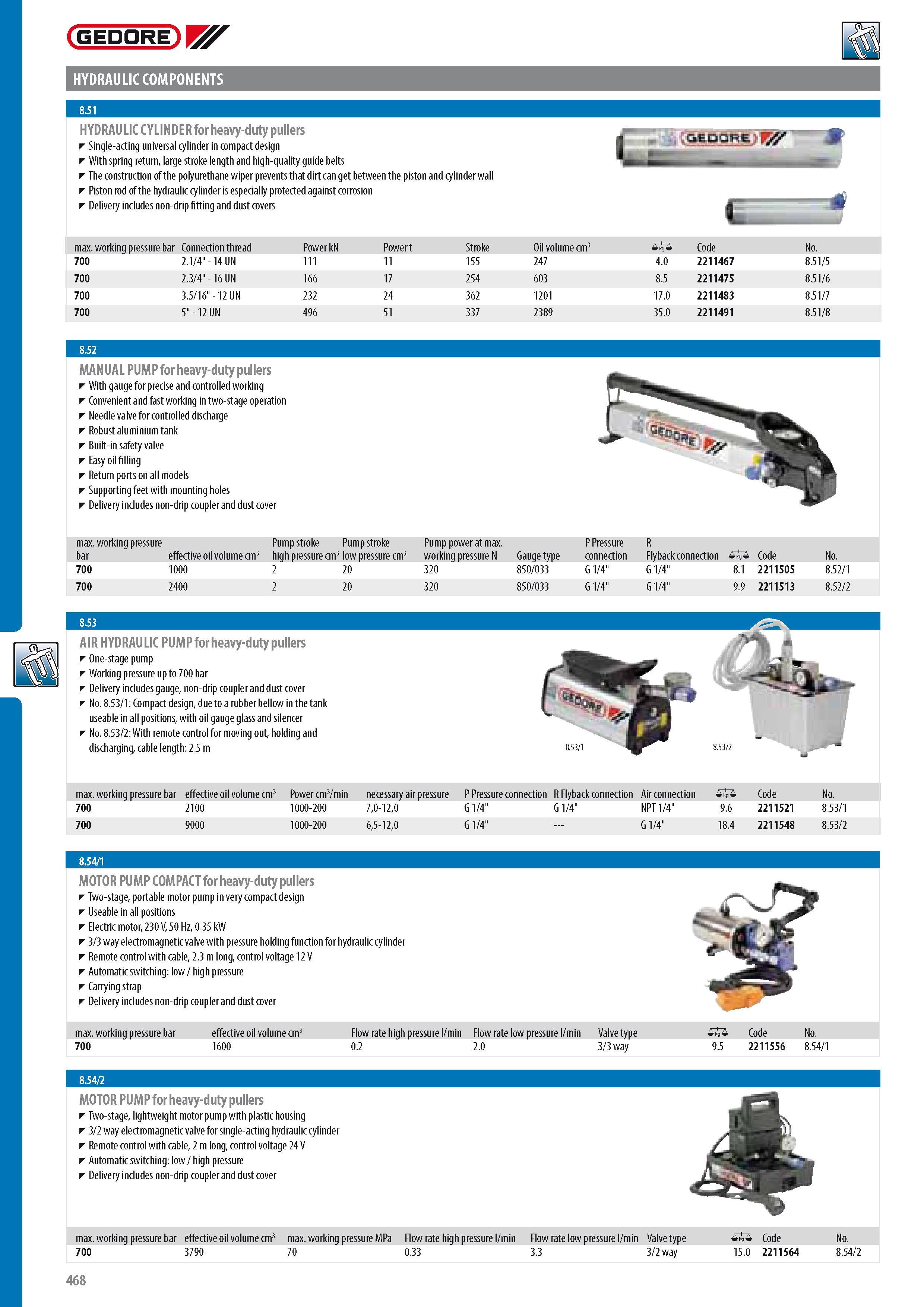

470 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.468

Каталог GEDORE 2014 Слесарный инструмент Стр. 468 0470 ENG Lab2u

GEDORE HYDRAULIC COMPONENTS HYDRAULIC CYLINDER for heavy-duty pullers Single-acting universal cylinder in compact design With spring return large stroke length and high-quality guide belts T he construction of the polyurethane wiper prevents that dirt can get between the piston and cylinder wall Piston rod of the hydraulic cylinder is especially protected against corrosion Delivery includes non-drip fitting and dust covers MQQRE 7 max. working pressure bar Connection thread Power kN Power Stroke Oil volume cm3 0 Code No. 700 2.1 4" - 14 UN 111 11 155 247 4.0 2211467 8.51 5 700 2.3 4" - 16 UN 166 17 254 603 8.5 2211475 8.51 6 700 3.5 16" - 12 UN 232 24 362 1201 17.0 2211483 8.51 7 700 5" - 12 UN 496 51 337 2389 35.0 2211491 8.51 8 MANUAL PUMP for heavy-duty pullers With gauge for precise and controlled working Convenient and fast working in two-stage operation Needle valve for controlled discharge Robust aluminium tank Built-in safety valve Easy oil filling Return ports on all models Supporting feet with mounting holes Delivery includes non-drip coupler and dust cover max. working pressure bar effective oil volume cm3 Pump stroke Pump stroke high pressure cm3 low pressure cm3 Pump power at max. working pressure N Gauge type P Pressure connection R Flyback connection 0 Code No. 700 1000 2 20 320 850 033 G 1 4" G 1 4" 8.1 2211505 8.52 1 700 2400 2 20 320 850 033 G 1 4" G 1 4" 9.9 2211513 8.52 2 8.53 - 1 AIR HYDRAULIC PUMP for heavy-duty pullers One-stage pump Working pressure up to 700 bar Delivery includes gauge non-drip coupler and dust cover No. 8.53 1 Compact design due to a rubber bellow in the tank useable in all positions with oil gauge glass and silencer No. 8.53 2 With remote control for moving out holding and discharging cable length 2.5 m max. working pressure bar effective oil volume cm3 Power cm3 min necessary air pressure P Pressure connection R Flyback connection Air connection 0 Code No. 700 2100 1000-200 70-120 G 1 4" G 1 4" NPT1 4" 9.6 2211521 8.53 1 700 9000 1000-200 65-120 G 1 4" - G 1 4" 18.4 2211548 8.53 2 MOTOR PUMP COMPACT for heavy-duty pullers Two-stage portable motor pump in very compact design Useable in all positions Electric motor 230 V 50 Hz 0.35 kW 3 3 way electromagnetic valve with pressure holding function for hydraulic cylinder Remote control with cable 2.3 m long control voltage 12 V Automatic switching low high pressure Carrying strap Delivery includes non-drip coupler and dust cover max. working pressure bar effective oil volume cm3 Flow rate high pressure l min Flow rate low pressure l min Valve type 0 Code No. 700 1600 0.2 2.0 3 3 way 9.5 2211556 8.54 1 8.54 2 1 MOTOR PUMP for heavy-duty pullers Two-stage lightweight motor pump with plastic housing 3 2 way electromagnetic valve for single-acting hydraulic cylinder Remote control with cable 2 m long control voltage 24 V Automatic switching low high pressure Delivery includes non-drip coupler and dust cover max. working pressure bar effective oil volume cm3 700 3790 max. working pressure MPa 70 Flow rate high pressure l min 0.33 Flow rate low pressure l min Valve type 0 Code No. 3.3 3 2 way 15.0 2211564 8.54 2 8.53 2 468
