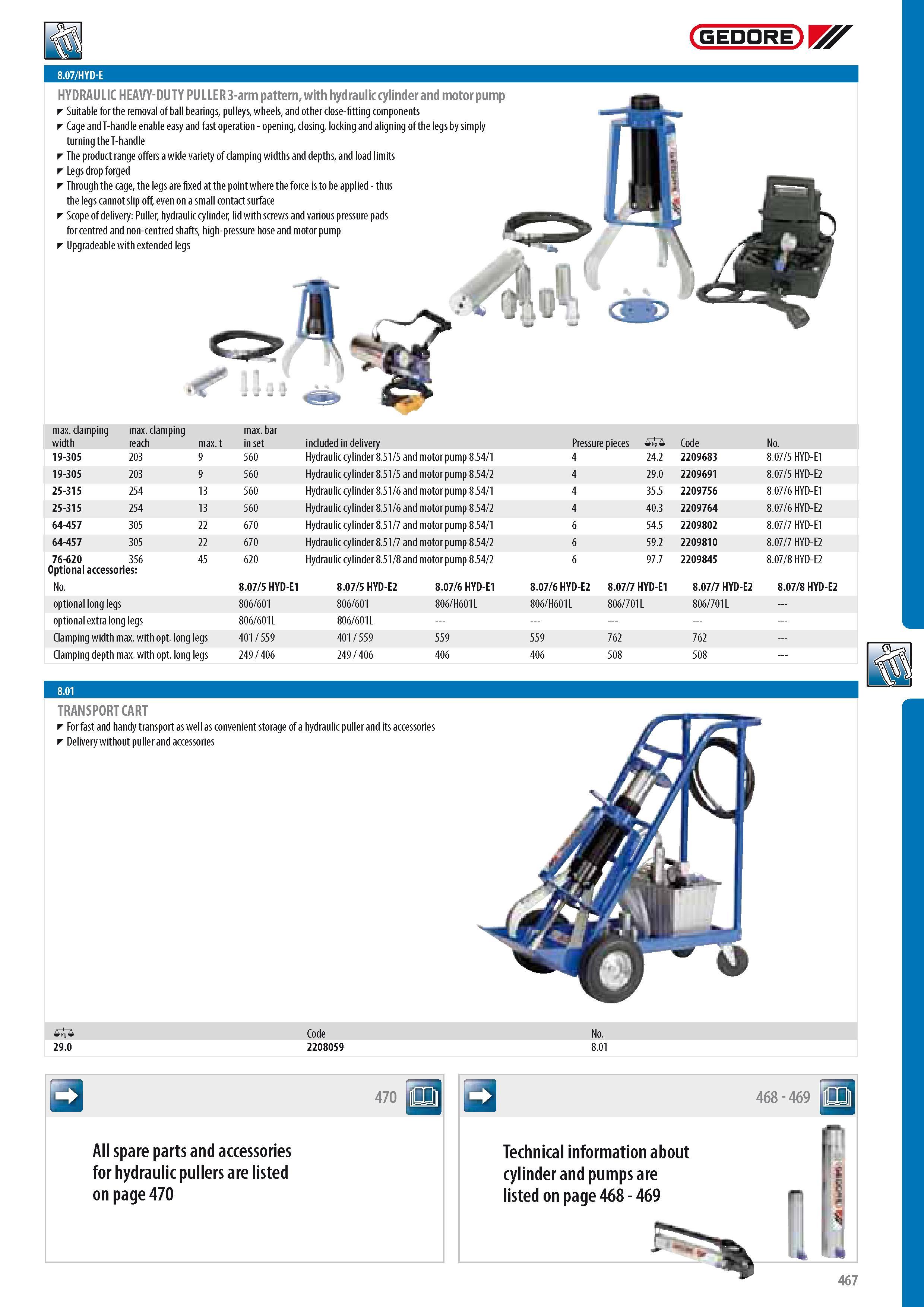

GEDORE HYDRAULIC HEAVY-DUTY PULLER 3-arm pattern with hydraulic cylinder and motor pump Suitable for the removal of ball bearings pulleys wheels and other close-fitting components Cage and T-handle enable easy and fast operation - opening closing locking and aligning of the legs by simply turning the T-handle The product range offers a wide variety of clamping widths and depths and load limits Legs drop forged Through the cage the legs are fixed at the point where the force is to be applied - thus the legs cannot slip off even on a small contact surface Scope of delivery Puller hydraulic cylinder lid with screws and various pressure pads for centred and non-centred shafts high-pressure hose and motor pump Upgradeable with extended legs o c max. clamping width max. clamping reach max. max. bar in set included in delivery Pressure pieces 0 Code No. 1 9-305 203 9 560 Hydraulic cylinder 8.51 5 and motor pump 8.54 1 4 24.2 2209683 8.07 5 HYD-E1 1 9-305 203 9 560 Hydraulic cylinder 8.51 5 and motor pump 8.54 2 4 29.0 2209691 8.07 5 HYD-E2 25-315 254 13 560 Hydraulic cylinder 8.51 6 and motor pump 8.54 1 4 35.5 2209756 8.07 6 HYD-E1 25-315 254 13 560 Hydraulic cylinder 8.51 6 and motor pump 8.54 2 4 40.3 2209764 8.07 6 HYD-E2 64-457 305 22 670 Hydraulic cylinder 8.51 7 and motor pump 8.54 1 6 54.5 2209802 8.07 7 HYD-E1 64-457 305 22 670 Hydraulic cylinder 8.51 7 and motor pump 8.54 2 6 59.2 2209810 8.07 7 HYD-E2 76-620 356 Optional accessories 45 620 Hydraulic cylinder 8.51 8 and motor pump 8.54 2 6 97.7 2209845 8.07 8 HYD-E2 No. 8.07 5 HYD-E1 8.07 5 HYD-E2 8.07 6 HYD-E1 8.07 6 HYD-E2 8.07 7 HYD-E1 8.07 7 HYD-E2 8.07 8 HYD-E2 optional long legs 806 601 806 601 806 H601L 806 H601L 806 701L 806 701L - optional extra long legs 806 601L 806 601L - Clamping width max. with opt. long legs 401 559 401 559 559 559 762 762 - Clamping depth max. with opt. long legs 249 406 249 406 406 406 508 508 - TRANSPORT CART For fast and handy transport as well as convenient storage of a hydraulic puller and its accessories Delivery without puller and accessories 0 29.0 Code 2208059 No. 8.01 J 470 All spare parts and accessories for hydraulic pullers are listed on page 470 J 468 - 469 Technical information about cylinder and pumps are listed on page 468 - 469 07 HYD-E
