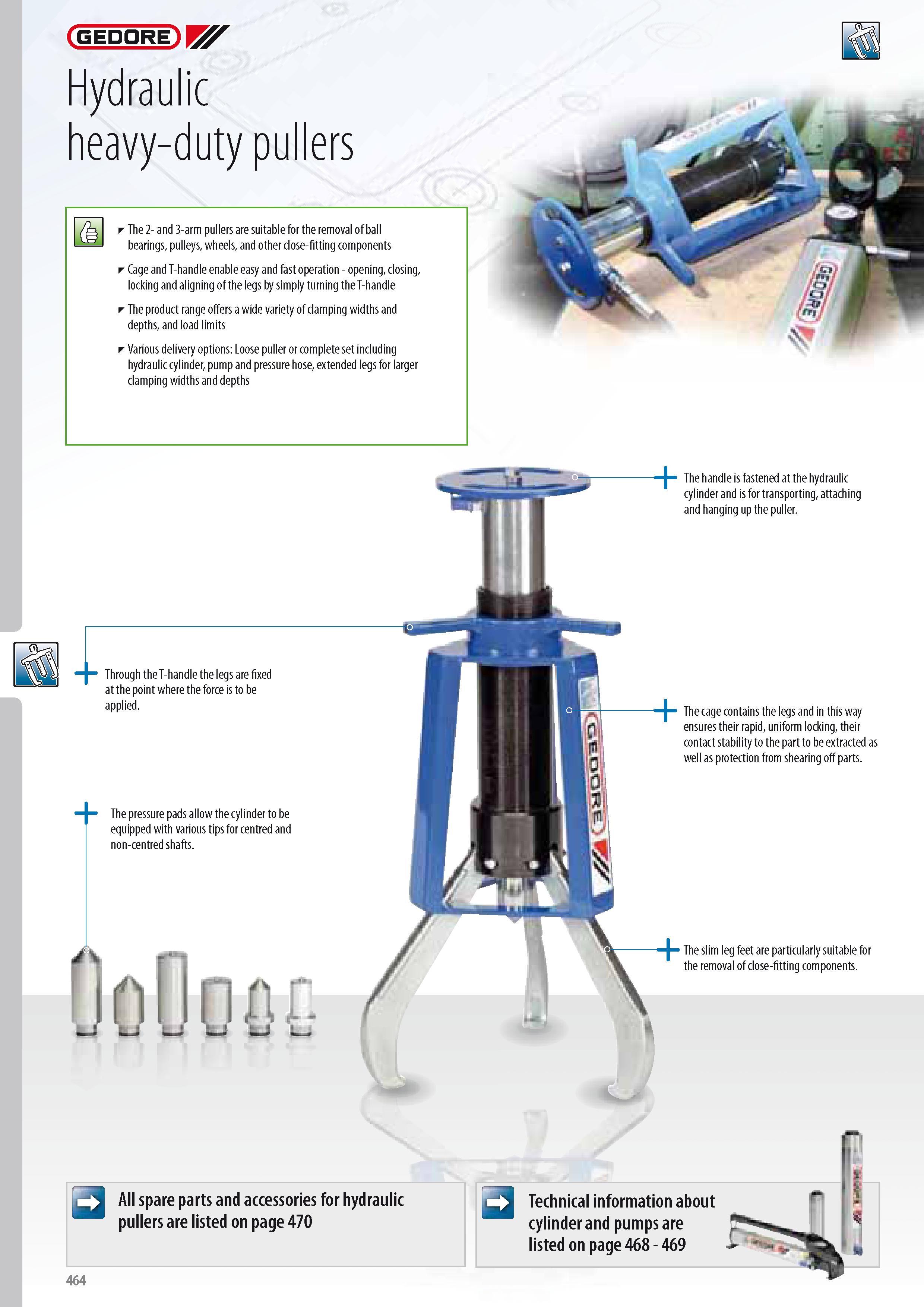

GEDORE Hydraulic heavy-duty pullers The 2- and 3-arm pullers are suitable for the removal of ball bearings pulleys wheels and other close-fitting components Cage and T-handle enable easy and fast operation - opening closing locking and aligning of the legs by simply turning the T-handle The product range offers a wide variety of clamping widths and depths and load limits Various delivery options Loose puller or complete set including hydraulic cylinder pump and pressure hose extended legs for larger clamping widths and depths Through the T-handle the legs are fixed at the point where the force is to be applied. The pressure pads allow the cylinder to be equipped with various tips for centred and non-centred shafts. j The handle is fastened at the hydraulic cylinder and is for transporting attaching and hanging up the puller. The cage contains the legs and in this way ensures their rapid uniform locking their contact stability to the part to be extracted as well as protection from shearing off parts. The slim leg feet are particularly suitable for the removal of close-fitting components. All spare parts and accessories for hydraulic pullers are listed on page 470 Technical information about cylinder and pumps are listed on page 468 - 469 464
