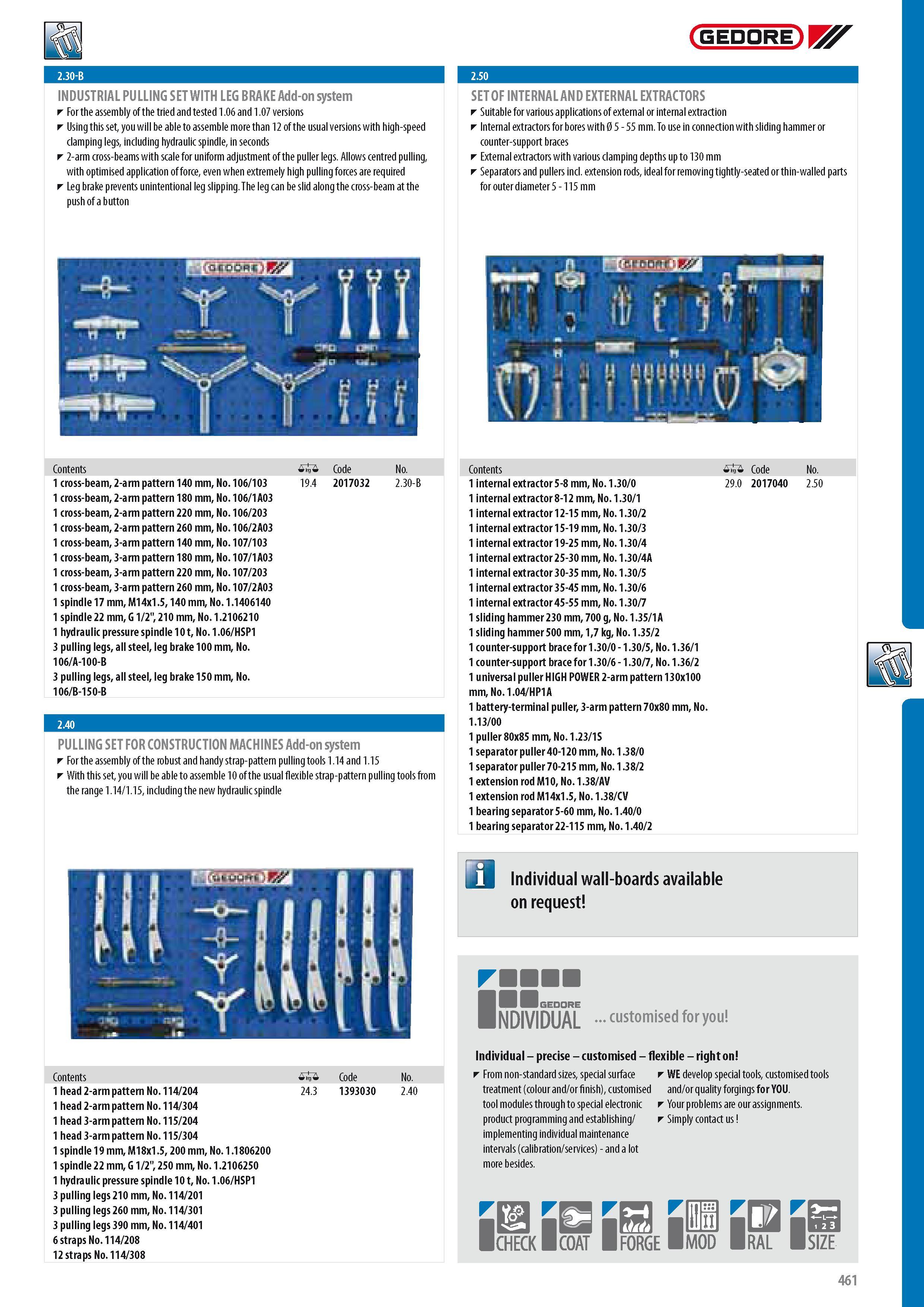

GEDORE INDUSTRIAL PULLING SET WITH LEG BRAKE Add-on system Forthe assembly of the tried and tested 1.06 and 1.07 versions Using this set you will be able to assemble more than 12 of the usual versions with high-speed clamping legs including hydraulic spindle in seconds 2-arm cross-beams with scale for uniform adjustment of the puller legs. Allows centred pulling with optimised application of force even when extremely high pulling forces are required Leg brake prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button SET OF INTERNAL AND EXTERNAL EXTRACTORS Suitable for various applications of external or internal extraction Internal extractors for bores with 0 5 - 55 mm. To use in connection with sliding hammer or counter-support braces External extractors with various clamping depths up to 130 mm Separators and pullers incl. extension rods ideal for removing tightly-seated or thin-walled parts for outer diameter 5 - 115 mm Contents 0 Code No. 1 cross-beam 2-arm pattern 140 mm No. 106 103 19.4 2017032 2.30-1 1 cross-beam 2-arm pattern 180 mm No. 106 1A03 1 cross-beam 2-arm pattern 220 mm No. 106 203 1 cross-beam 2-arm pattern 260 mm No. 106 2A03 1 cross-beam 3-arm pattern 140 mm No. 107 103 1 cross-beam 3-arm pattern 180 mm No. 107 1A03 1 cross-beam 3-arm pattern 220 mm No. 107 203 1 cross-beam 3-arm pattern 260 mm No. 107 2A03 1 spindle 17 mm M14x1.5 140 mm No. 1.1406140 1 spindle 22 mm G 1 2" 210 mm No. 1.2106210 1 hydraulic pressure spindle 10 No. 1.06 HSP1 3 pulling legs all steel leg brake 100 mm No. 106 A-100-B 3 pulling legs all steel leg brake 150 mm No. 106 B-150-B PULLING SET FOR CONSTRUCTION MACHINES Add-on system Forthe assembly of the robust and handy strap-pattern pulling tools 1.14 and 1.15 With this set you will be able to assemble 10 of the usual flexible strap-pattern pulling tools from the range 1.14 1.15 including the new hydraulic spindle Contents 1 internal extractor 5-8 mm No. 1.30 0 1 internal extractor 8-12 mm No. 1.30 internal extractor 12-15 mm No. 1.30 2 1 internal extractor 15-19 mm No. 1.30 3 1 internal extractor 19-25 mm No. 1.30 4 1 internal extractor 25-30 mm No. 1.30 4A 1 internal extractor 30-35 mm No. 1.30 5 1 internal extractor 35-45 mm No. 1.30 6 1 internal extractor 45-55 mm No. 1.30 7 1 sliding hammer 230 mm 700 g No. 1.35 1 A 1 sliding hammer 500 mm 17 kg No. 1.35 2 1 counter-support brace for 1.30 0 - 1.30 5 No. 1.36 counter-support brace for 1.30 6 - 1.30 7 No. 1.36 2 1 universal puller HIGH POWER 2-arm pattern 130x100 mm No. 1.04 HP1A 1 battery-terminal puller 3-arm pattern 70x80 mm No. 1.13 00 1 puller 80x85 mm No. 1.23 1S 1 separator puller 40-120 mm No. 1.38 0 1 separator puller 70-215 mm No. 1.38 2 1 extension rod M10 No. 1.38 AV 1 extension rod M14x1.5 No. 1.38 CV 1 bearing separator 5-60 mm No. 1.40 0 1 bearing separator 22-115 mm No. 1.40 2 0 Code No. 29.0 2017040 2.50 Contents 1 head 2-arm pattern No. 114 204 1 head 2-arm pattern No. 114 304 1 head 3-arm pattern No. 115 204 1 head 3-arm pattern No. 115 304 1 spindle 19 mm M18x1.5 200 mm No. 1.1806200 1 spindle 22 mm G 1 2" 250 mm No. 1.2106250 1 hydraulic pressure spindle 10 No. 1.06 HSP1 3 pulling legs 210 mm No. 114 201 3 pulling legs 260 mm No. 114 301 3 pulling legs 390 mm No. 114 401 6 straps No. 114 208 12 straps No. 114 308 0 Code No. 24.3 1393030 2.40 a Individual wall-boards available on request rmmmm I NDIVIDUAL - customised for you Individual - precise - customised - flexible - right on From non-standard sizes special surface treatment (colour and or finish) customised tool modules through to special electronic product programming and establishing implementing individual maintenance intervals (calibration services) - and a lot more besides. WE develop special tools customised tools and or quality forgings for YOU. Your problems are our assignments. Simply contact us rpi r iCHECK I COAT 2.50 2.40 461
