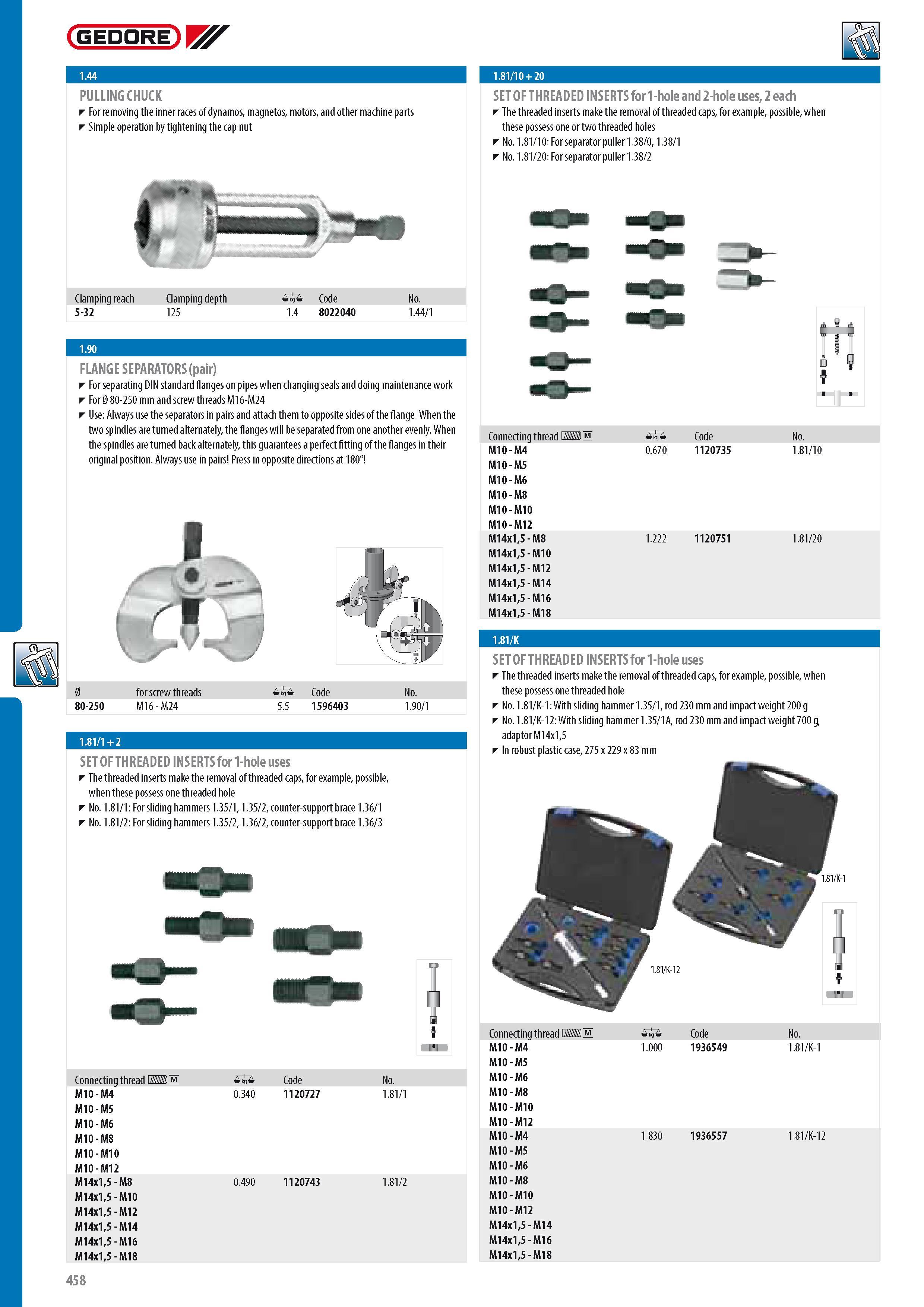

GEDORE PULLING CHUCK For removing the inner races of dynamos magnetos motors and other machine parts Simple operation by tightening the cap nut 1.81 10 + 20 SET OF THREADED INSERTS for 1-hole and 2-hole uses 2 each T he threaded inserts make the removal of threaded caps for example possible when these possess one or two threaded holes No. 1.81 10 For separator puller 1.38 0 1.38 1 No. 1.81 20 For separator puller 1.38 2 Clamping reach 5-32 Clamping depth 125 0 1.4 Code 8022040 No. 1.44 1 FLANGE SEPARATORS (pair) For separating DIN standard flanges on pipes when changing seals and doing maintenance work For 0 80-250 mm and screw threads M16-M24 Use Always use the separators in pairs and attach them to opposite sides of the flange. When the two spindles are turned alternately the flanges will be separated from one another evenly. When the spindles are turned back alternately this guarantees a perfect fitting of the flanges in their original position. Always use in pairs Press in opposite directions at 180 0 for screw threads 0 Code No. 80-250 M16 - M24 5.5 1 596403 1.90 1.81 1 + 2 1 SET OF THREADED INSERTS for 1-hole uses T he threaded inserts make the removal of threaded caps for example possible when these possess one threaded hole No. 1.81 1 For sliding hammers 1.35 1 1.35 2 counter-support brace 1.36 1 No. 1.81 2 For sliding hammers 1.35 2 1.36 2 counter-support brace 1.36 3 Connecting thread M10 - M4 M10 - M5 0 0.340 Code 1120727 No. 1.81 1 Connecting thread P M M -i0 Code No. M1 0 - M4 M1 0 - M5 M1 0 - M6 M1 0 - M8 M10 - M10 M10 - M12 0.670 1120735 1.81 10 M14x15 - M8 M14x15 - M10 M14x15 - M12 M14x15 - M14 M14x15 - M16 M14x15 - M18 1.222 1120751 1.81 20 SET OF THREADED INSERTS for 1-hole uses T he threaded inserts make the removal of threaded caps for example possible when these possess one threaded hole No. 1.81 K-1 With sliding hammer 1.35 1 rod 230 mm and impact weight 200 g No. 1.81 K-12 With sliding hammer 1.35 1A rod 230 mm and impact weight 700 g adaptor M14x15 In robust plastic case 275 x 229 x 83 mm Connecting thread M10 - M4 M10 - M5 M10 - M6 M10 - M8 M10 - M10 M10 - M12 0 Code 1.000 1 936549 No. 1.81 K-1 M10 - M8 M10 - M4 1.830 1936557 1.81 K-12 M10 - M10 M10 - M5 M10 - M12 M10 - M6 M 14x15 - M8 0.490 1120743 1.81 2 M10 - M8 M 14x15 - M10 M10 - M10 M 14x15 - M12 M10 - M12 M 14x15 - M14 M14x15 - M14 M 14x15 - M16 M14x15 - M16 M 14x15 - M18 M14x15 - M18 458
