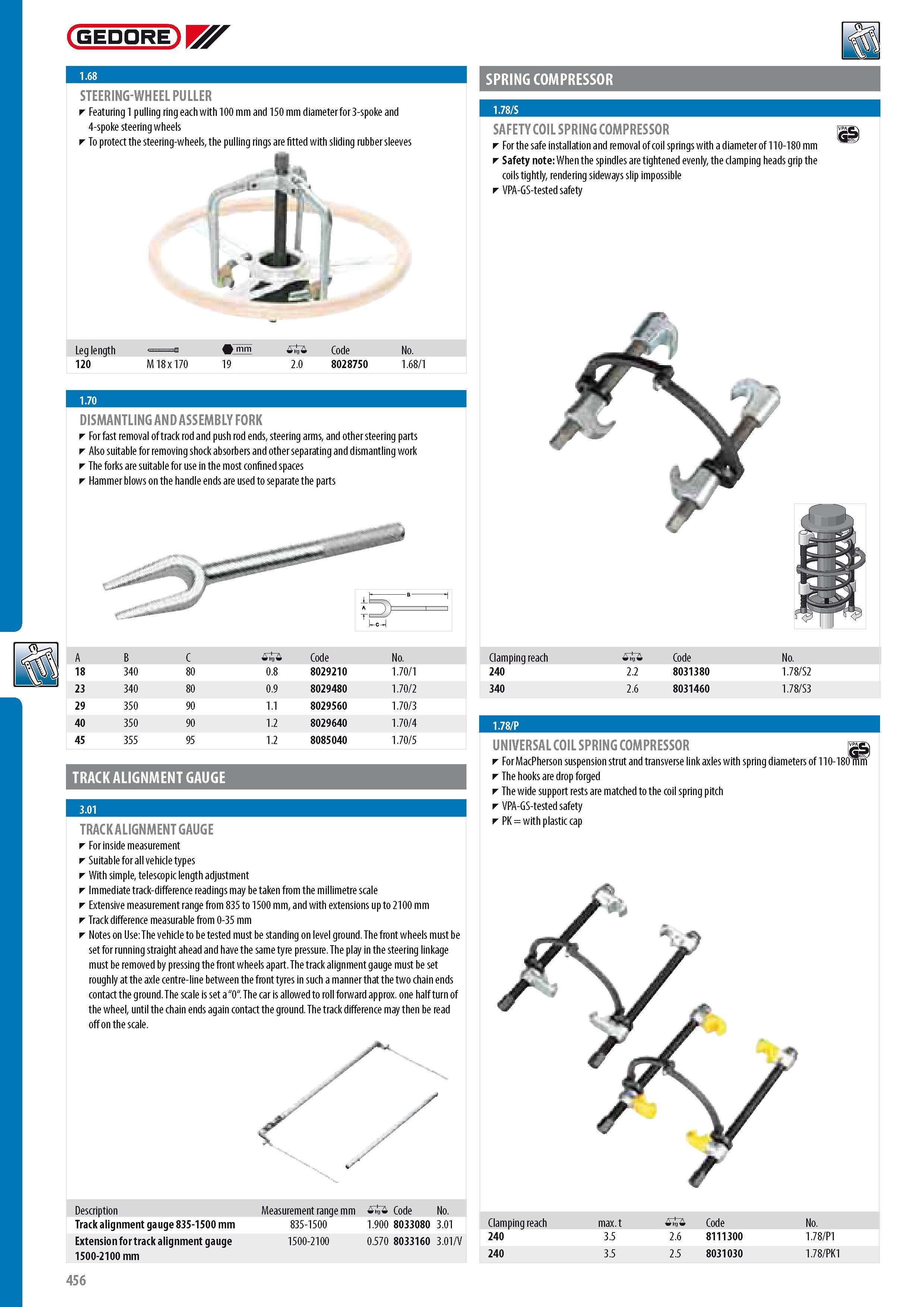

GEDORE STEERING-WHEEL PULLER Featuring 1 pulling ring each with 100 mm and 150 mm diameterfor 3-spoke and 4-spoke steering wheels To protect the steering-wheels the pulling rings are fitted with sliding rubber sleeves DISMANTLING AND ASSEMBLY FORK Forfast removal oftrack rod and push rod ends steering arms and other steering parts Also suitable for removing shock absorbers and other separating and dismantling work The forks are suitable for use in the most confined spaces Hammer blows on the handle ends are used to separate the parts A 18 23 29 40 45 340 340 350 350 355 80 80 90 90 95 0.8 0.9 1.1 1.2 1.2 8029210 8029480 8029560 8029640 8085040 70 1 70 2 70 3 70 4 70 5 TRACK ALIGNMENT GAUGE SPRING COMPRESSOR SAFETY COIL SPRING COMPRESSOR F or the safe installation and removal of coil springs with a diameter of 110-180 mm Safety note When the spindles are tightened evenly the clamping heads grip the coils tightly rendering sideways slip impossible VPA-GS-tested safety Leg length H mm 0 Code No. 120 M 18 x 1 70 19 2.0 8028750 1.68 170 Clamping reach 240 340 0 Code 2.2 8031380 2.6 8031460 No. 1.78 S2 1.78 S3 TRACK ALIGNMENT GAUGE For inside measurement Suitable for all vehicle types With simple telescopic length adjustment Immediate track-difference readings may be taken from the millimetre scale Extensive measurement range from 835 to 1500 mm and with extensions up to 2100 mm Track difference measurable from 0-35 mm Notes on Use The vehicle to be tested must be standing on level ground. The front wheels must be set for running straight ahead and have the same tyre pressure. The play in the steering linkage must be removed by pressing the front wheels apart. The track alignment gauge must be set roughly at the axle centre-line between the front tyres in such a manner that the two chain ends contact the ground. The scale is set a "0". The car is allowed to roll forward approx. one half turn of the wheel until the chain ends again contact the ground. The track difference may then be read off on the scale. UNIVERSAL COIL SPRING COMPRESSOR For MacPherson suspension strut and transverse link axles with spring diameters of 110-' The hooks are drop forged The wide support rests are matched to the coil spring pitch VPA-GS-tested safety PK with plastic cap Description Measurement range mm 0 Code No. Track alignment gauge 835-1500 mm 835-1500 1.900 8033080 3.01 Extension for track alignment gauge 1500-2100 0.570 8033160 3.01 V 1500-2100 mm Clamping reach max. 0 Code No. 240 3.5 2.6 8111300 1.78 P1 240 3.5 2.5 8031030 1.78 PK1 1.68 1.78 S 1.78 P 456
