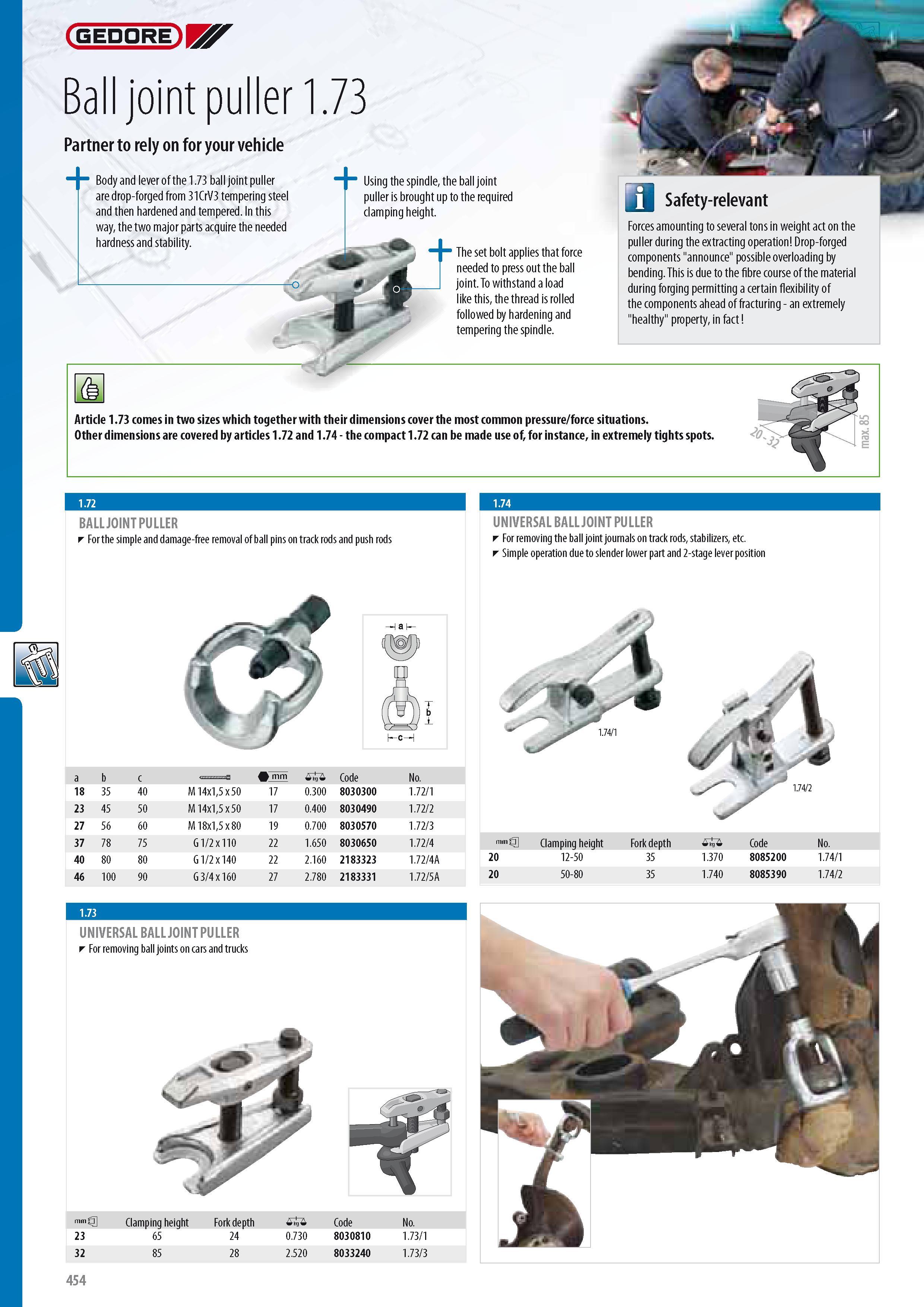

GEDORE Bgyr Ball joint puller 1.73 Partner to rely on for your vehicle Body and lever of the 1.73 ball joint puller are drop-forged from 31CrV3 tempering steel and then hardened and tempered. In this way the two major parts acquire the needed hardness and stability. + Using the spindle the ball joint puller is brought up to the required clamping height. The set bolt applies that force needed to press out the ball joint. To withstand a load like this the thread is rolled followed by hardening and tempering the spindle. Forces amounting to several tons in weight act on the puller during the extracting operation Drop-forged components "announce" possible overloading by bending. This is due to the fibre course of the material during forging permitting a certain flexibility of the components ahead of fracturing - an extremely "healthy" property in fact Article 1.73 comes in two sizes which together with their dimensions cover the most common pressure force situations. Other dimensions are covered by articles 1.72 and 1.74 - the compact 1.72 can be made use of for instance in extremely tights spots. BALL JOINT PULLER F orthe simple and damage-free removal of ball pins on track rods and push rods UNIVERSAL BALL JOINT PULLER For removing the ball joint journals on track rods stabilizers etc. Simple operation due to slender lower part and 2-stage lever position dm MH a b c mm 0 Code No. 18 35 40 M 14x15 x 50 17 0.300 8030300 1.72 1 1.74 2 23 45 50 M 14x15 x 50 17 0.400 8030490 1.72 2 27 56 60 M 18x15 x80 19 0.700 8030570 1.72 3 37 78 75 G1 2x 110 22 1.650 8030650 1.72 4 mmO Clamping height Fork depth 0 Code No. 40 80 80 G1 2x140 22 2.160 2183323 1.72 4A 20 12-50 35 1.370 8085200 1.74 1 46 100 90 G3 4x 160 27 2.780 2183331 1.72 5A 20 50-80 35 1.740 8085390 1.74 2 UNIVERSAL BALL JOINT PULLER For removing ball joints on cars and trucks O Clamping height Fork depth 0 Code No. 23 65 24 0.730 8030810 1.73 1 32 85 28 2.520 8033240 1.73 3 454
