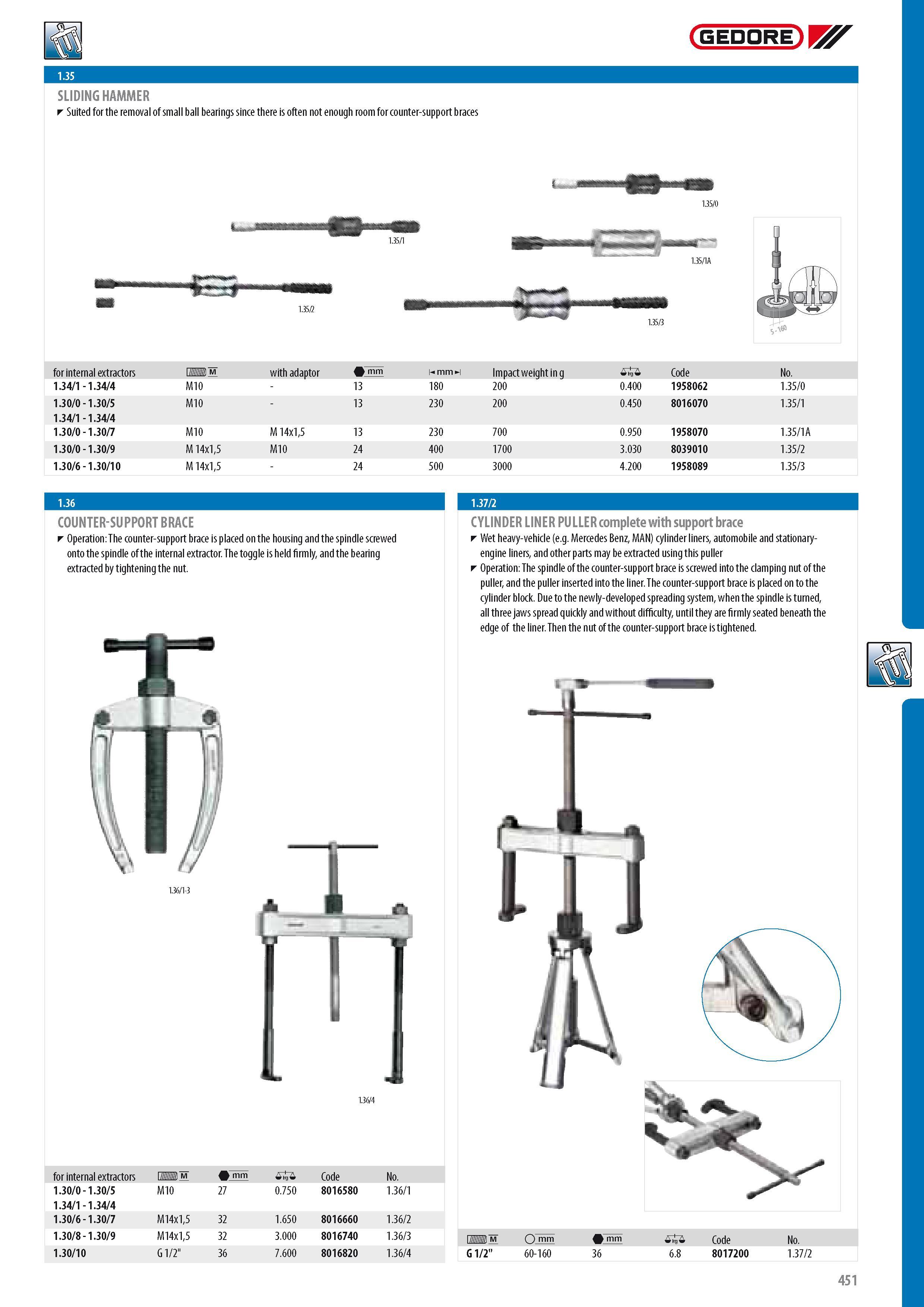

GEDORE SLIDING HAMMER Suited for the removal of small ball bearings since there is often not enough room for counter-support braces for internal extractors with adaptor mm m mm ml Impact weight in g 0 Code No. 1.34 1 - 1.34 4 M10 - 13 180 200 0.400 1958062 1.35 0 1.30 0 - 1.30 5 1.34 1 - 1.34 4 M10 - 13 230 200 0.450 8016070 1.35 .30 0 - 1.30 7 M10 M14x15 13 230 700 0.950 1958070 1.35 1A 1 .30 0 - 1.30 9 M 14x15 M10 24 400 1700 3.030 8039010 1.35 2 1.30 6 - 1.30 10 M 14x15 - 24 500 3000 4.200 1958089 1.35 3 COUNTER-SUPPORT BRACE Operation The counter-support brace is placed on the housing and the spindle screwed onto the spindle of the internal extractor. The toggle is held firmly and the bearing extracted by tightening the nut. CYLINDER LINER PULLER complete with support brace Wet heavy-vehicle (e.g. Mercedes Benz MAN) cylinder liners automobile and stationary-engine liners and other parts may be extracted using this puller Operation The spindle of the counter-support brace is screwed into the clamping nut of the puller and the puller inserted into the liner. The counter-support brace is placed on to the cylinder block. Due to the newly-developed spreading system when the spindle is turned all three jaws spread quickly and without difficulty until they are firmly seated beneath the edge of the liner. Then the nut of the counter-support brace is tightened. for internal extractors M mm 0 Code No. 1.30 0 - 1.30 5 M10 27 0.750 8016580 1.36 .34 1 - 1.34 4 1.30 6 - 1.30 7 M14x15 32 1.650 8016660 1.36 2 1.30 8 - 1.30 9 M14x15 32 3.000 8016740 1.36 3 IM I M O mm mm 1 .30 1 0 G 1 2" 36 7.600 8016820 1.36 4 G 1 2" 60-160 36 0 Code 6.8 8017200 No. 1.3 7 2 135 0 1.35 3 451
