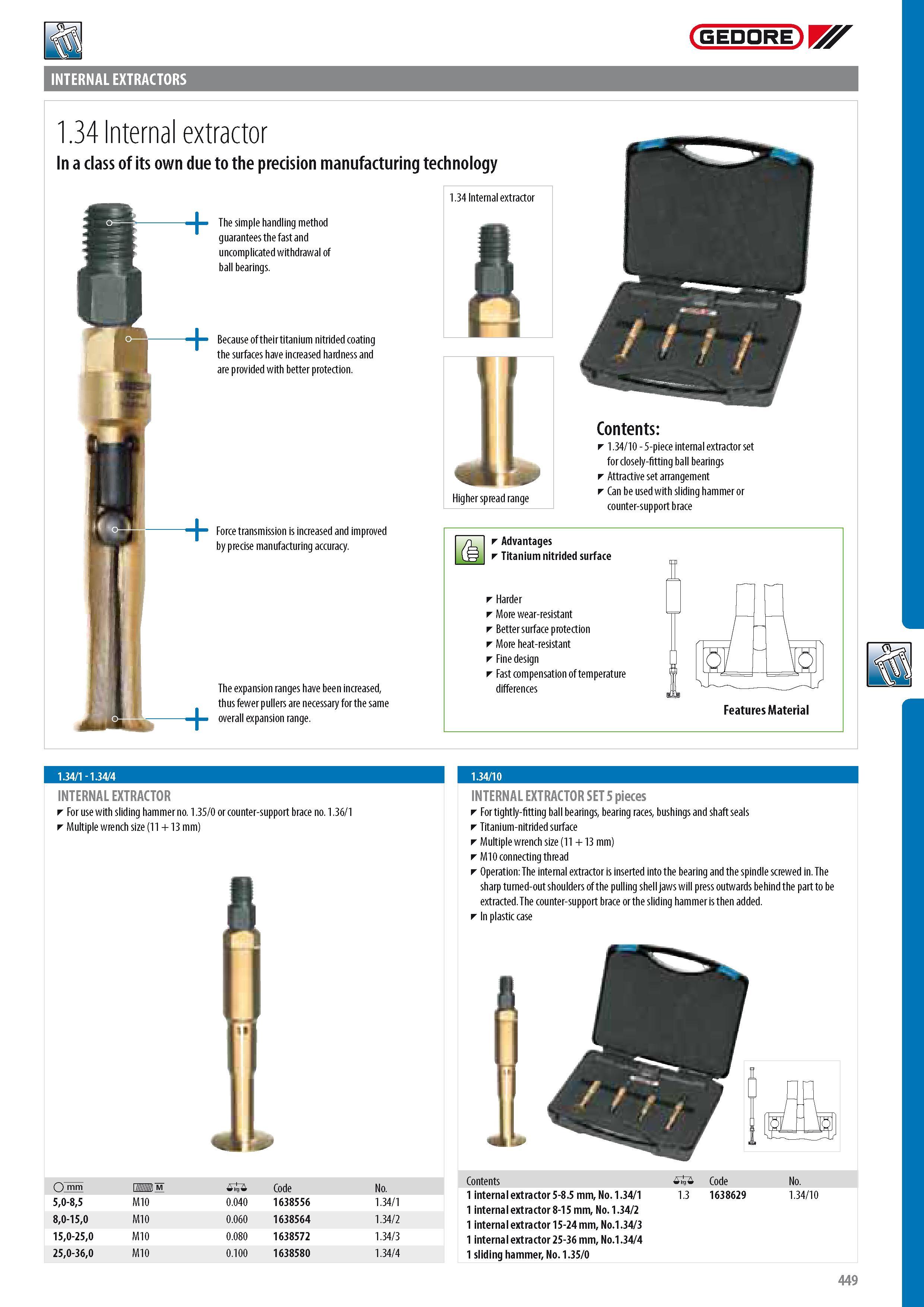

INTERNAL EXTRACTORS GEDORE 1.34 Internal extractor In a class of its own due to the precision manufacturing technology - The simple handling method guarantees the fast and uncomplicated withdrawal of ball bearings. Because of their titanium nitrided coating the surfaces have increased hardness and are provided with better protection. Force transmission is increased and improved by precise manufacturing accuracy. The expansion ranges have been increased thus fewer pullers are necessary for the same overall expansion range. Contents 1.34 10 - 5-piece internal extractor set for closely-fitting ball bearings Attractive set arrangement Can be used with sliding hammer or counter-support brace Advantages Titanium nitrided surface Harder More wear-resistant Better surface protection More heat-resistant Fine design Fast compensation of temperature differences Features Material 1.34 1 - 1.34 4 INTERNAL EXTRACTOR For use with sliding hammer no. 1.35 0 or counter-support brace no. 1.36 1 Multiple wrench size (11 + 13 mm) O mm M -i0 Code No. 50-85 M10 0.040 1638556 1.34 1 80-150 M10 0.060 1638564 1.34 2 150-250 M10 0.080 1638572 1.34 3 250-360 M10 0.100 1638580 1.34 4 INTERNAL EXTRACTOR SET 5 pieces For tightly-fitting ball bearings bearing races bushings and shaft seals T itanium-nitrided surface Multiple wrench size (11 + 13 mm) M10 connecting thread Operation The internal extractor is inserted into the bearing and the spindle screwed in. The sharp turned-out shoulders of the pulling shell jaws will press outwards behind the part to be extracted. The counter-support brace or the sliding hammer is then added. In plastic case Contents 1 internal extractor 5-8.5 mm No. 1.34 internal extractor 8-15 mm No. 1.34 2 1 internal extractor 15-24 mm No.1.34 3 1 internal extractor 25-36 mm No.1.34 4 1 sliding hammer No. 1.35 0 0 Code 1.3 1638629 No. 1.34 10 1.34 10 449
