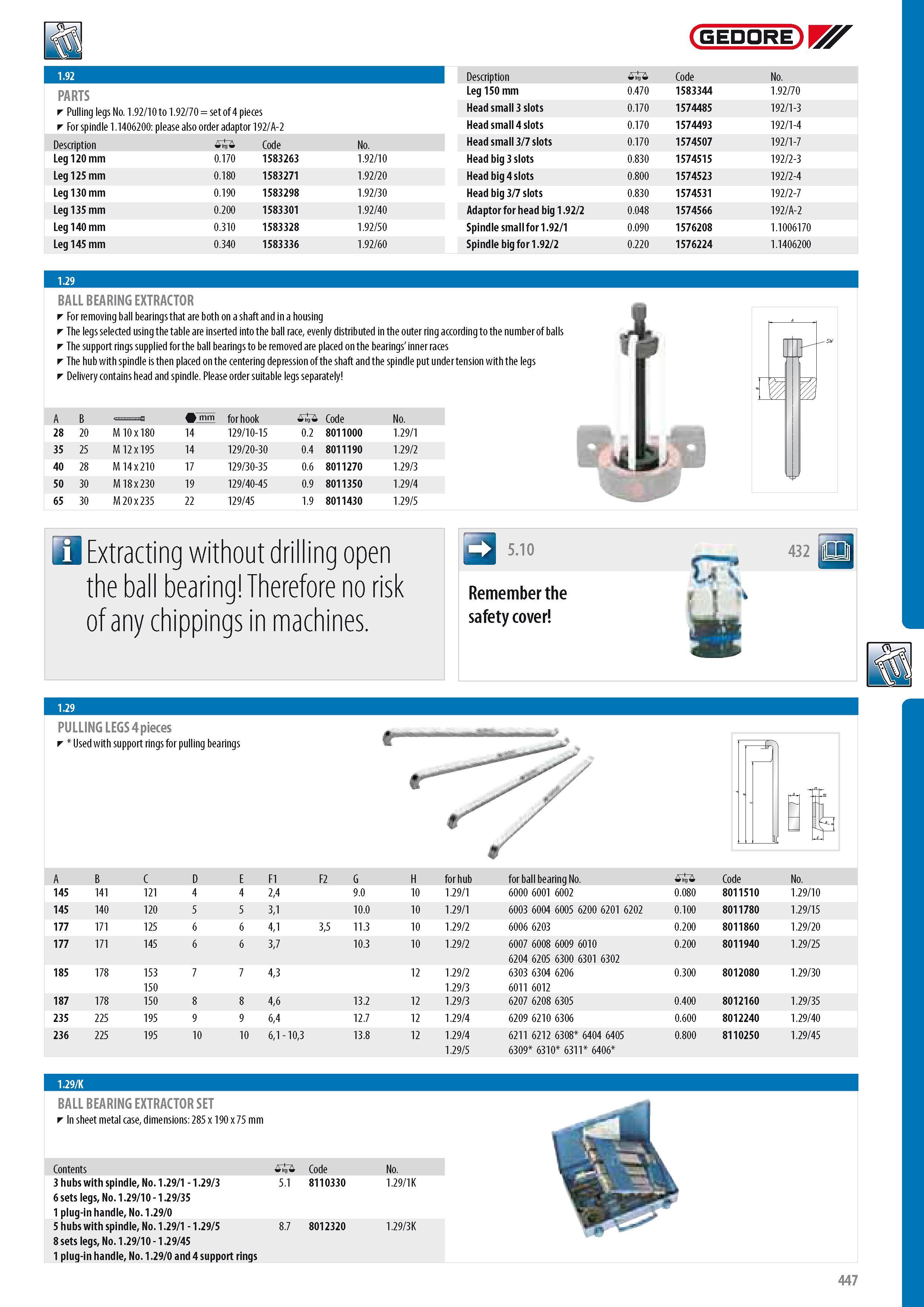

449 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.447

Каталог GEDORE 2014 Слесарный инструмент Стр. 447 0449 ENG Lab2u

PARTS Pulling legs No. 1.92 10 to 1.92 70 set of 4 pieces For spindle 1.1406200 please also order adaptor 192 A-2 Description 0 Code No. Leg 120 mm 0.170 1583263 1.92 10 Leg 125 mm 0.180 1583271 1.92 20 Leg 130 mm 0.190 1583298 1.92 30 Leg 1 35 mm 0.200 1583301 1.92 40 Leg 1 40 mm 0.310 1583328 1.92 50 Leg 1 45 mm 0.340 1583336 1.92 60 GEDORE Description 0 Code No. Leg 1 50 mm 0.470 1 583344 1.92 70 Head small 3 slots 0.170 1 574485 192 1-3 Head small 4 slots 0.170 1 574493 192 1-4 Head small 3 7 slots 0.170 1 574507 192 1-7 Head big 3 slots 0.830 1574515 192 2-3 Head big 4 slots 0.800 1 574523 192 2-4 Head big 3 7 slots 0.830 1 574531 192 2-7 Adaptor for head big 1.92 2 0.048 1 574566 192 A-2 Spindle small for 1.92 1 0.090 1576208 1.1006170 Spindle big for 1.92 2 0.220 1576224 1.1406200 BALL BEARING EXTRACTOR For removing ball bearings that are both on a shaft and in a housing The legs selected using the table are inserted into the ball race evenly distributed in the outer ring according to the number of balls The support rings supplied forthe ball bearings to be removed are placed on the bearings' inner races T he hub with spindle is then placed on the centering depression of the shaft and the spindle put undertension with the legs Delivery contains head and spindle. Please order suitable legs separately A B mm for hook 0 Code No. 28 20 M 10 x 180 14 129 10-15 0.2 8011000 1.29 1 35 25 M 12x195 14 129 20-30 0.4 8011190 1.29 2 40 28 M14x210 17 129 30-35 0.6 8011270 1.29 3 50 30 M 18 x 230 19 129 40-45 0.9 8011350 1.29 4 65 30 M 20 x 235 22 129 45 1.9 8011430 1.29 5 21 Extracting without drilling open the ball bearing Therefore no risk of any chippings in machines. 5.10 Remember the safety cover PULLING LEGS 4 pieces Used with support rings for pulling bearings A B C D E F1 F2 G H for hub for ball bearing No. 0 Code No. 1 45 141 121 4 4 24 9.0 10 1.29 1 6000 6001 6002 0.080 8011510 1.29 10 1 45 140 120 5 5 31 10.0 10 1.29 1 6003 6004 6005 6200 6201 6202 0.100 8011780 1.29 15 177 171 125 6 6 41 35 11.3 10 1.29 2 6006 6203 0.200 8011860 1.29 20 177 171 145 6 6 37 10.3 10 1.29 2 6007 6008 6009 6010 6204 6205 6300 6301 6302 0.200 8011940 1.29 25 185 178 153 150 7 7 43 12 1.29 2 1.29 3 6303 6304 6206 6011 6012 0.300 8012080 1.29 30 187 178 150 8 8 46 13.2 12 1.29 3 6207 6208 6305 0.400 8012160 1.29 35 235 225 195 9 9 64 12.7 12 1.29 4 6209 6210 6306 0.600 8012240 1.29 40 236 225 195 10 10 61 - 103 13.8 12 1.29 4 1.29 5 6211 6212 6308 6404 6405 6309 6310 6311 6406 0.800 8110250 1.29 45 BALL BEARING EXTRACTOR SET In sheet metal case dimensions 285 x 190 x 75 mm Contents 0 Code No. 3 hubs with spindle No. 1.29 1 - 1.29 3 6 sets legs No. 1.29 10 - 1.29 35 1 plug-in handle No. 1.29 0 5.1 8110330 1.29 1K 5 hubs with spindle No. 1.29 1 - 1.29 5 8 sets legs No. 1.29 10 - 1.29 45 1 plug-in handle No. 1.29 0 and 4 support rings 8.7 801 2320 1.29 3K 447
