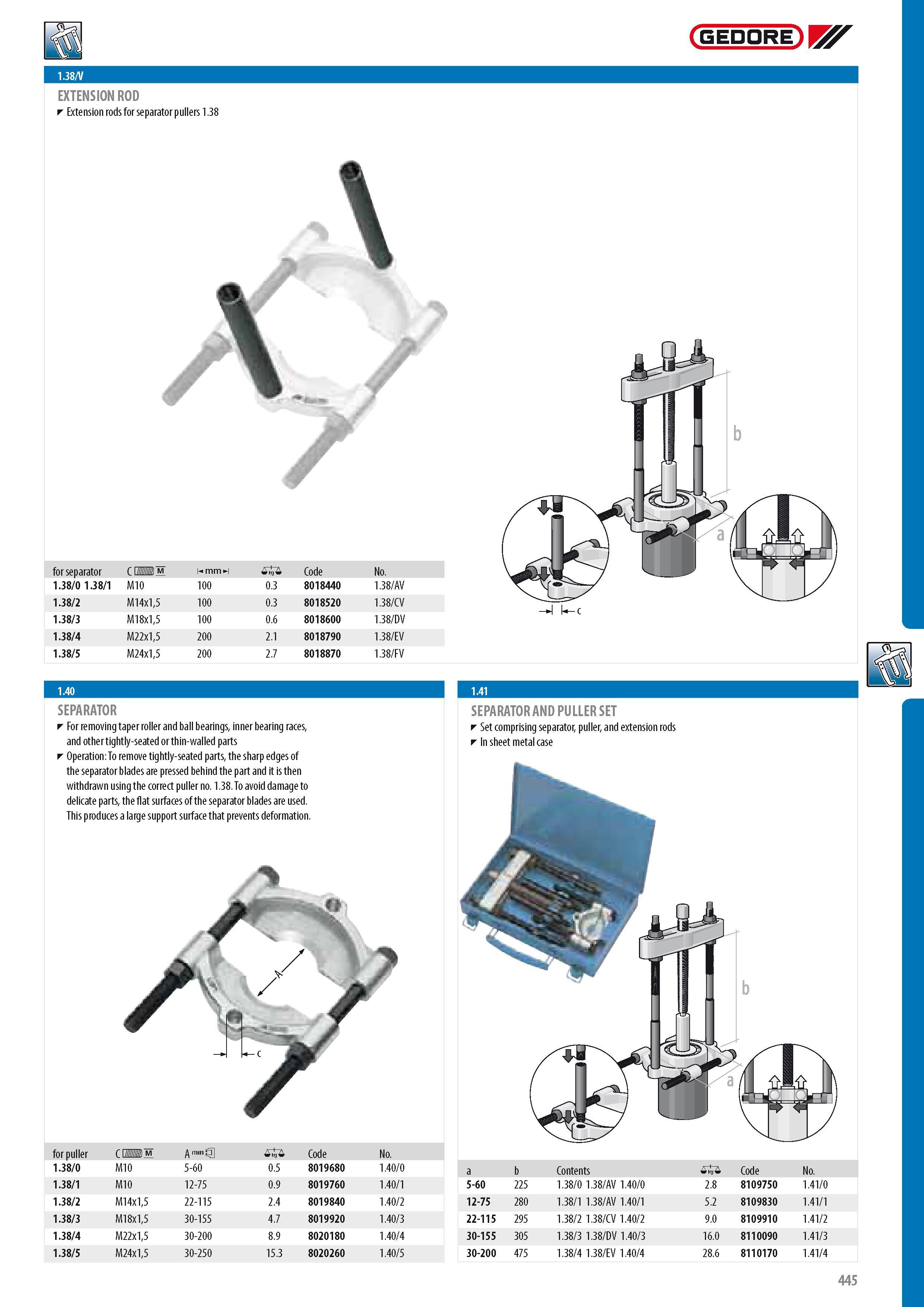

GEDORE EXTENSION ROD Extension rods for separator pullers 1.38 for separator 1.38 0 1.38 1 1.38 2 1.38 3 1.38 4 1.38 5 C fMM m m mm ml 0 Code No. M10 100 0.3 8018440 1.38 AV M14x15 100 0.3 8018520 1.38 CV M18x15 100 0.6 8018600 1.38 DV M22x15 200 2.1 8018790 1.38 EV M24x15 200 2.7 8018870 1.38 FV Jl . 1 SEPARATOR For removing taper roller and ball bearings inner bearing races and other tightly-seated or thin-walled parts Operation To remove tightly-seated parts the sharp edges of the separator blades are pressed behind the part and it is then withdrawn using the correct puller no. 1.38. To avoid damage to delicate parts the flat surfaces of the separator blades are used. This produces a large support surface that prevents deformation. SEPARATOR AND PULLER SET Set comprising separator puller and extension rods In sheet metal case for puller C A mO -i0 Code No. 1 .38 0 M10 5-60 0.5 8019680 1.40 0 a b Contents 0 Code No. 1 .38 1 M10 12-75 0.9 8019760 1.40 1 5-60 225 1.38 0 1.38 AV 1.40 0 2.8 8109750 1.41 0 1 .38 2 M14x15 22-115 2.4 8019840 1.40 2 12-75 280 1.38 1 1.38 AV 1.40 1 5.2 8109830 1.41 .38 3 M18x15 30-155 4.7 8019920 1.40 3 22-115 295 1.38 2 1.38 CV 1.40 2 9.0 8109910 1.41 2 1 .38 4 M22x15 30-200 8.9 8020180 1.40 4 30-155 305 1.38 3 1.38 DV 1.40 3 16.0 8110090 1.41 3 1 .38 5 M24x15 30-250 15.3 8020260 1.40 5 30-200 475 1.38 4 1.38 EV 1.40 4 28.6 8110170 1.41 4 445
