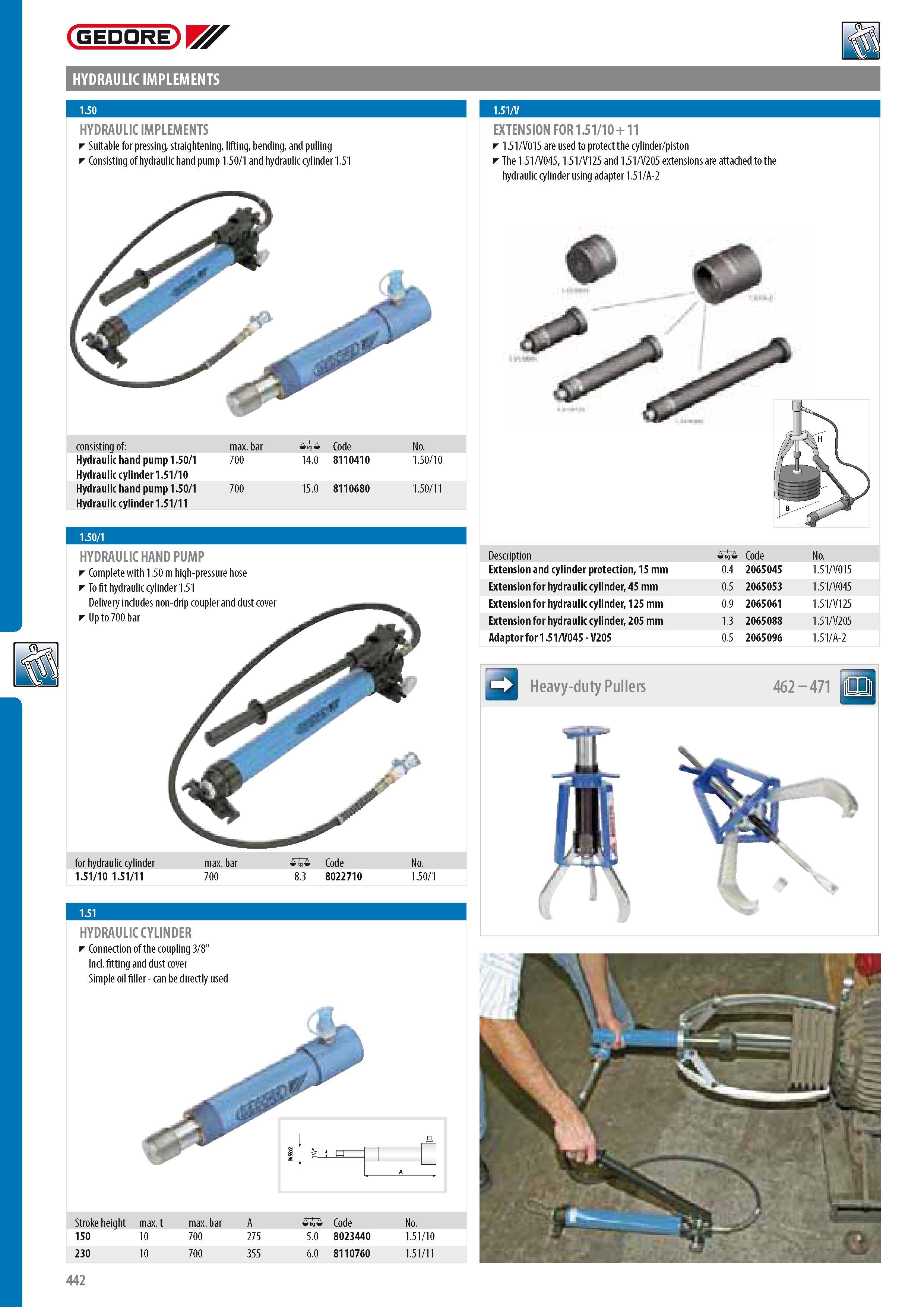

GEDORE HYDRAULIC IMPLEMENTS HYDRAULIC IMPLEMENTS Suitable for pressing straightening lifting bending and pulling Consisting of hydraulic hand pump 1.50 1 and hydraulic cylinder 1.51 consisting of max. bar 0 Code No. Hydraulic hand pump 1.50 1 Hydraulic cylinder 1.51 10 Hydraulic hand pump 1.50 1 Hydraulic cylinder 1.51 11 700 14.0 8110410 1.50 10 700 15.0 8110680 1.50 11 1.50 1 HYDRAULIC HAND PUMP Complete with 1.50 m high-pressure hose To fit hydraulic cylinder 1.51 Delivery includes non-drip coupler and dust cover Up to 700 bar for hydraulic cylinder max. bar 0 Code No. 1.51 10 1.51 11 700 8.3 8022710 1.50 1 1.51 HYDRAULIC CYLINDER Connection of the coupling 3 8" Incl. fitting and dust cover Simple oil filler - can be directly used Stroke height max. max. bar A 0 Code No. 150 10 700 275 5.0 8023440 1.51 10 230 10 700 355 6.0 8110760 1.51 11 EXTENSION FOR 1.51 10 + 11 1.51 V015 are used to protect the cylinder piston The 1.51 V045 1.51 V125 and 1.51 V205 extensions are attached to the hydraulic cylinder using adapter 1.51 A-2 Description 0 Code No. Extension and cylinder protection 15 mm 0.4 2065045 1.51 V015 Extension for hydraulic cylinder 45 mm 0.5 2065053 1.51 V045 Extension for hydraulic cylinder 125 mm 0.9 2065061 1.51 V125 Extension for hydraulic cylinder 205 mm 1.3 2065088 1.51 V205 Adaptor for 1.51 V045 - V205 0.5 2065096 1.51 A-2 Heavy-duty Pullers 462 - 471 442 1.51 V 1.50
