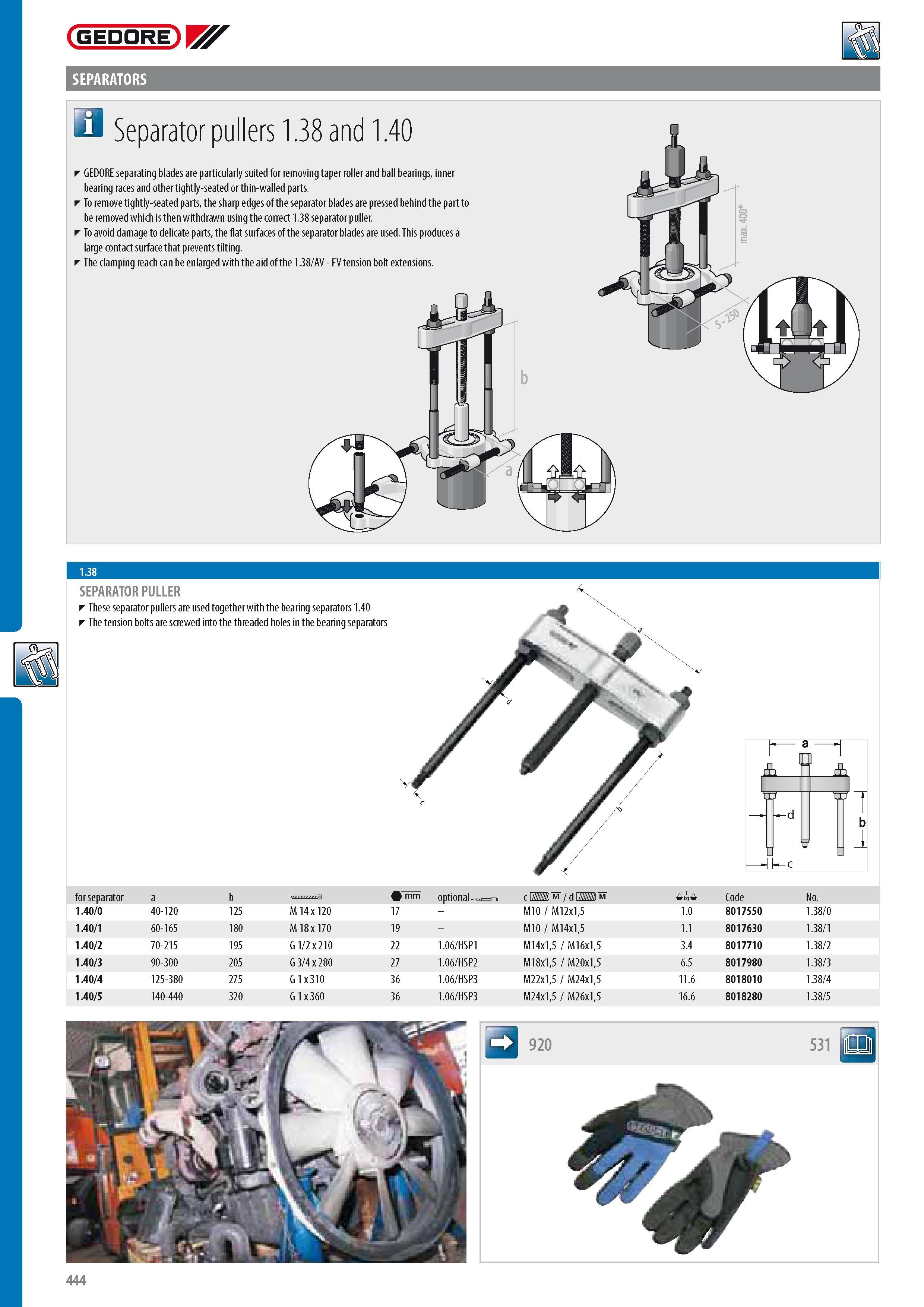

GEDORE SEPARATORS 3 Separator pullers 1.38 and 1.40 GEDORE separating blades are particularly suited for removing taper roller and ball bearings inner bearing races and other tightly-seated or thin-walled parts. To remove tightly-seated parts the sharp edges of the separator blades are pressed behind the part to be removed which is then withdrawn using the correct 1.38 separator puller. To avoid damage to delicate parts the flat surfaces of the separator blades are used. This produces a large contact surface that prevents tilting. The clamping reach can be enlarged with the aid of the 1.38 AV - FV tension bolt extensions. SEPARATOR PULLER These separator pullers are used togetherwith the bearing separators 1.40 The tension bolts are screwed into the threaded holes in the bearing separators T b 1 for separator a b mm optional c d -i0 Code No. 1 .40 0 40-120 125 M 14 x 120 17 - M10 M12x15 1.0 8017550 1.38 0 1 .40 1 60-165 180 M 18 x 170 19 - M10 M14x15 1.1 8017630 1.38 .40 2 70-215 195 G 1 2 x 210 22 1.06 HSP1 M14x15 M16x15 3.4 8017710 1.38 2 1.40 3 90-300 205 G 3 4x280 27 1.06 HSP2 M18x15 M20x15 6.5 801 7980 1.38 3 1.40 4 125-380 275 G 1 x310 36 1.06 HSP3 M22x15 M24x15 11.6 8018010 1.38 4 1.40 5 140-440 320 G 1 x 360 36 1.06 HSP3 M24x15 M26x15 16.6 801 8280 1.38 5 444 1.38
