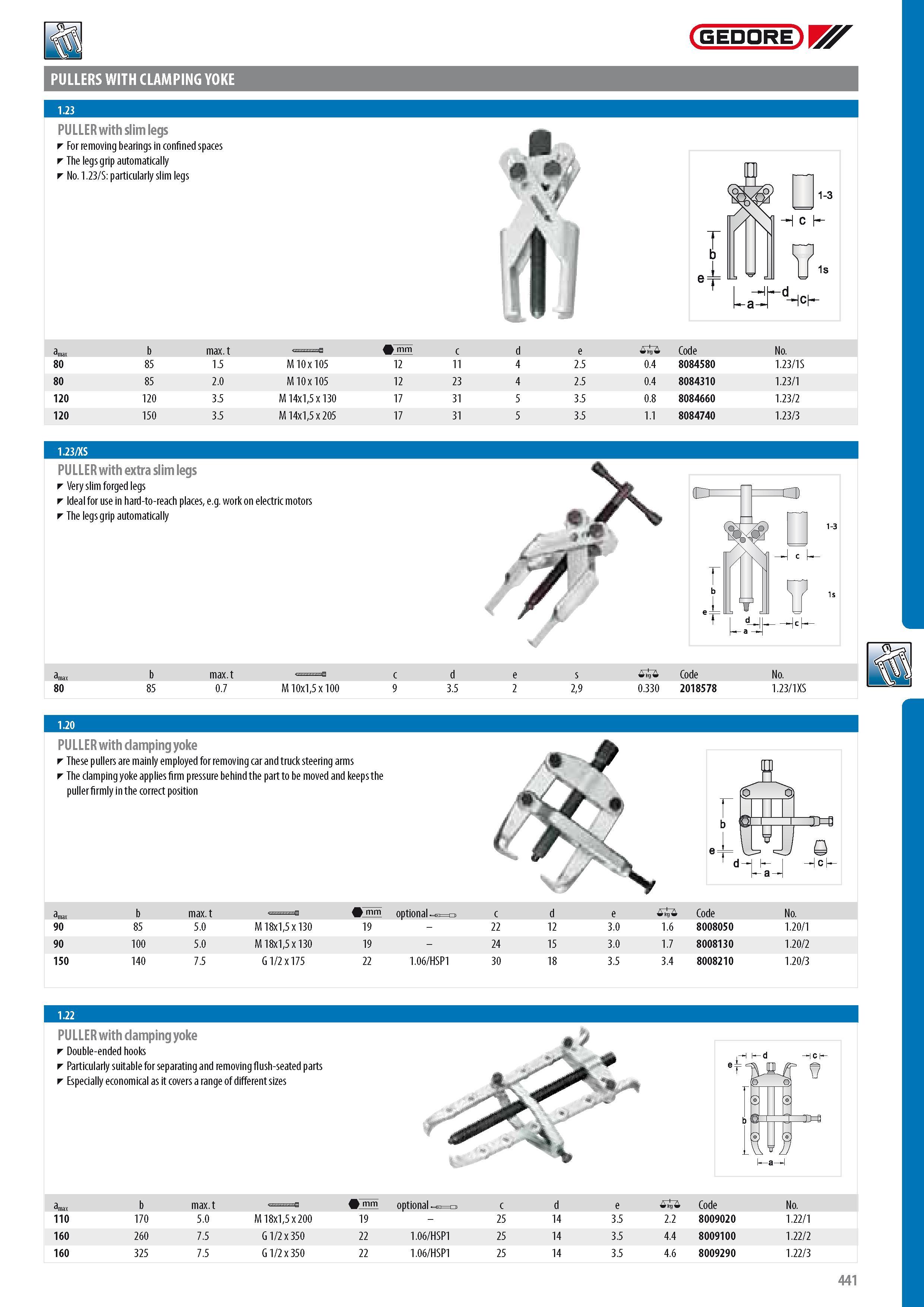

PULLERS WITH CLAMPING YOKE GEDORE PULLER with slim legs For removing bearings in confined spaces The legs grip automatically No. 1.23 S particularly slim legs b max. mm c d e 0 Code No. 8m0ax 85 1.5 M10x105 12 11 4 2.5 0.4 8084580 1.23 1S 80 85 2.0 M 10x105 12 23 4 2.5 0.4 8084310 1.23 1 120 120 3.5 M 14x15 x 130 17 31 5 3.5 0.8 8084660 1.23 2 120 150 3.5 M 14x15 x 205 17 31 5 3.5 1.1 8084740 1.23 3 PULLER with extra slim legs Very slim forged legs I deal for use in hard-to-reach places e.g. work on electric motors The legs grip automatically b 85 max. 0.7 M 10x15 x 100 d 3.5 s 29 0 Code 0.330 2018578 No. 1.23 1XS 1.23 a 1.23 XS a PULLER with clamping yoke These pullers are mainly employed for removing car and truck steering arms The clamping yoke applies firm pressure behind the part to be moved and keeps the puller firmly in the correct position amax b max. mm optional c d e -i0 Code No. 9m0ax 85 5.0 M 18x15 x 130 19 - 22 12 3.0 1.6 8008050 1.20 1 90 100 5.0 M 18x15 x 130 19 - 24 15 3.0 1.7 8008130 1.20 2 150 140 7.5 G 1 2 x 1 75 22 1.06 HSP1 30 18 3.5 3.4 8008210 1.20 3 PULLER with clamping yoke Double-ended hooks Particularly suitable for separating and removing flush-seated parts Especially economical as it covers a range of different sizes amax 110 160 160 b 170 260 325 max. 5.0 7.5 7.5 M 18x15 x 200 G 1 2 x 350 G 1 2 x 350 F mm 19 22 22 optional 1.06 HSP1 1.06 HSP1 c 25 25 25 d 14 14 14 e 3.5 3.5 3.5 0 Code 2.2 8009020 4.4 8009100 4.6 8009290 No. 1.22 1 1.22 2 1.22 3 1.20 1.22 441
