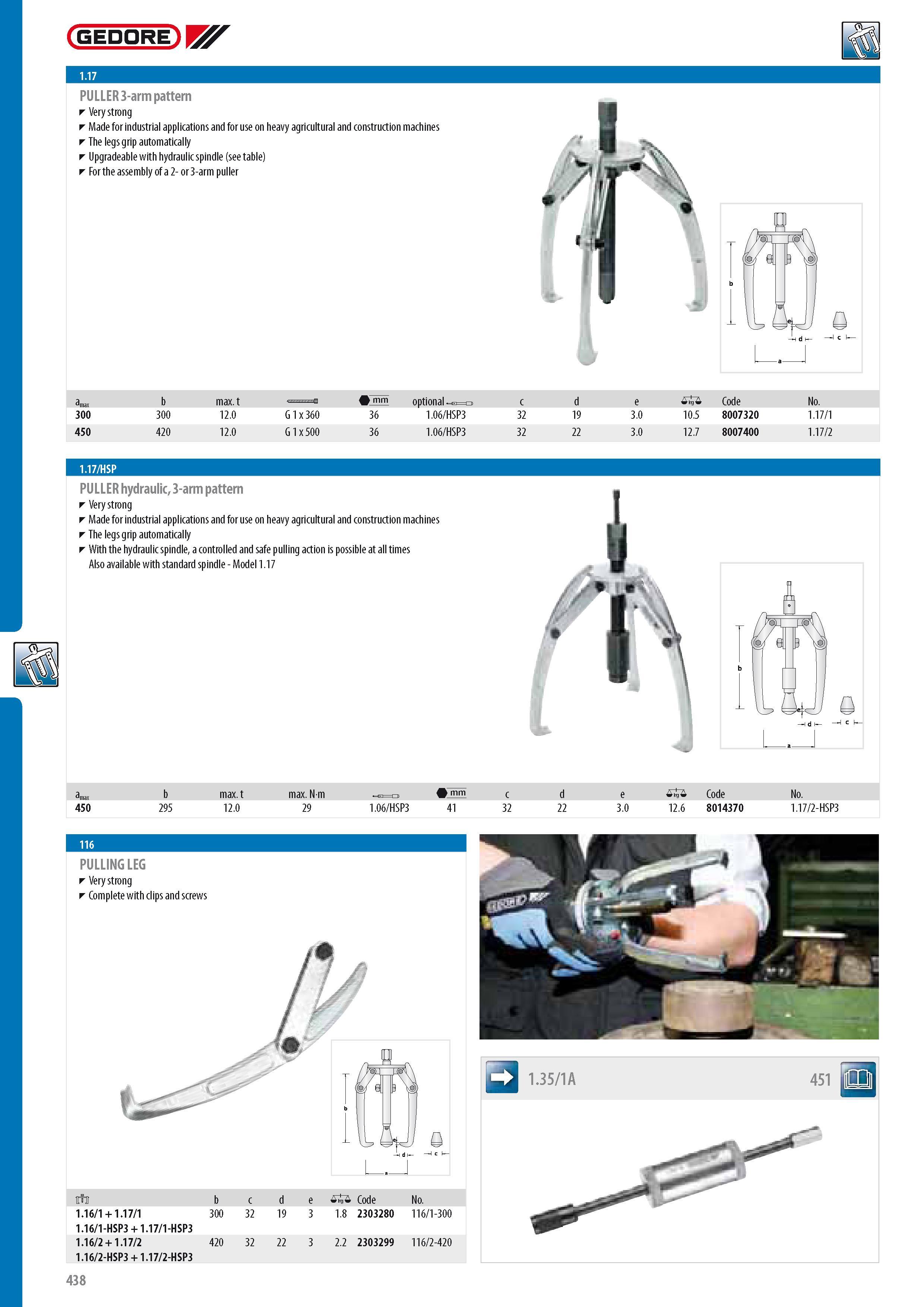

GEDORE PULLER 3-arm pattern Very strong Made for industrial applications and for use on heavy agricultural and construction machines The legs grip automatically Upgradeable with hydraulic spindle (see table) Forthe assembly of a 2- or 3-arm puller amax 300 450 b 300 420 max. 12.0 12.0 G 1x360 G 1 x 500 E mm 36 36 optional 1.06 HSP3 1.06 HSP3 c 32 32 d 19 22 e 3.0 3.0 0 Code No. 10.5 8007320 1.17 1 12.7 8007400 1.17 2 PULLER hydraulic 3-arm pattern Very strong Made for industrial applications and for use on heavy agricultural and construction machines The legs grip automatically With the hydraulic spindle a controlled and safe pulling action is possible at all times Also available with standard spindle - Model 1.17 amax 450 b 295 max. 12.0 max. Nm 29 1.06 HSP3 E mm 41 c 32 d 22 e 3.0 0 Code 12.6 8014370 No. 1.17 2-HSP3 PULLING LEG Very strong Complete with clips and screws A b c d e 0 Code No. 1.16 1 + 1.17 1 1.16 1-HSP3 + 1.17 1-HSP3 300 32 19 3 1.8 2303280 116 1-300 1 .1 6 2 + 1 .1 7 2 1.16 2-HSP3 + 1.17 2-HSP3 420 32 22 3 2.2 2303299 116 2-420 1A 5 no FI 451 yjp 1.17 1.17 HSP 438
