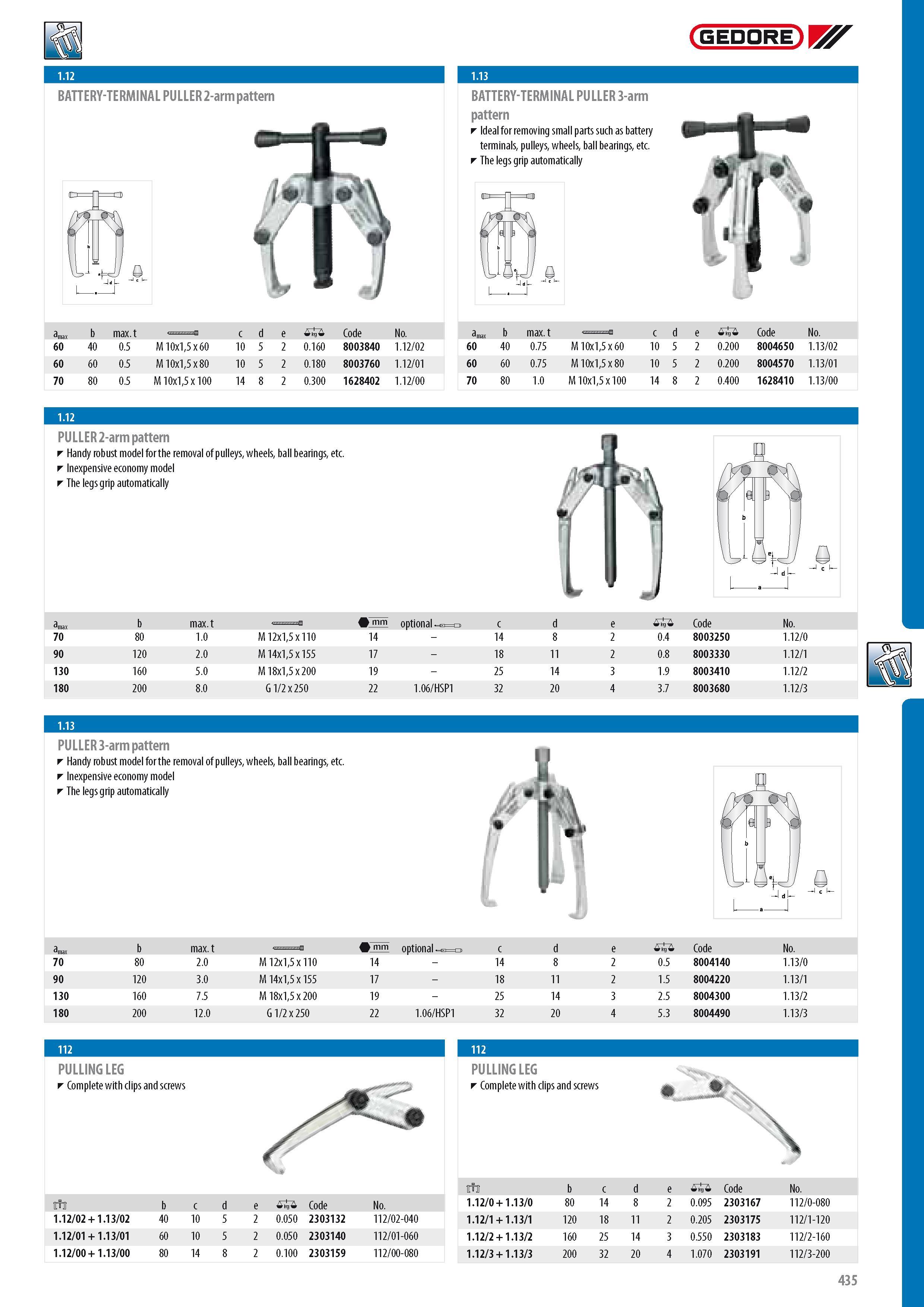

437 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.435

Каталог GEDORE 2014 Слесарный инструмент Стр. 435 0437 ENG Lab2u

GEDORE BATTERY-TERMINAL PULLER 2-arm pattern BATTERY-TERMINAL PULLER 3-arm pattern I deal for removing small parts such as battery terminals pulleys wheels ball bearings etc. The legs grip automatically amax b max. c d e 0 Code No. amax b max. c d e 0 Code No. 60 40 0.5 M 10x15 x60 10 5 2 0.160 8003840 1.12 02 60 40 0.75 M 10x15 x 60 10 5 2 0.200 8004650 1.13 02 60 60 0.5 M 10x15 x80 10 5 2 0.180 8003760 1.12 01 60 60 0.75 M 10x15 x 80 10 5 2 0.200 8004570 1.13 01 70 80 0.5 M 10x15 x 100 14 8 2 0.300 1 628402 1.12 00 70 80 1.0 M 10x15 x 100 14 8 2 0.400 1628410 1.13 00 PULLER 2-arm pattern Handy robust model forthe removal of pulleys wheels ball bearings etc. Inexpensive economy model The legs grip automatically amax b max. mm optional c d e 0 Code No. 70 80 1.0 M 12x15 x 110 14 - 14 8 2 0.4 8003250 1.12 0 90 120 2.0 M 14x15 x 155 17 - 18 11 2 0.8 8003330 1.12 1 130 160 5.0 M 18x15 x 200 19 - 25 14 3 1.9 8003410 1.12 2 180 200 8.0 G1 2x250 22 1.06 HSP1 32 20 4 3.7 8003680 1.12 3 PULLER 3-arm pattern H andy robust model forthe removal of pulleys wheels ball bearings etc. I nexpensive economy model The legs grip automatically amax b max. mm optional c d e 0 Code No. 7m0ax 80 2.0 M 12x15 x 110 14 - 14 8 2 0.5 8004140 1.13 0 90 120 3.0 M 14x15 x 155 17 - 18 11 2 1.5 8004220 1.13 1 130 160 7.5 M 18x15 x 200 19 - 25 14 3 2.5 8004300 1.13 2 180 200 12.0 G 1 2 x 250 22 1.06 HSP1 32 20 4 5.3 8004490 1.13 3 PULLING LEG Complete with clips and screws PULLING LEG Complete with clips and screws . A b c d e -0 Code No. A b c d e -0 Code No. 1.12 0 + 1.13 0 80 14 8 2 0.095 2303167 112 0-080 1.12 02 + 1.13 02 40 10 5 2 0.050 2303132 112 02-040 1.12 1 + 1.13 1 120 18 11 2 0.205 2303175 112 1-120 1.12 01 + 1.13 01 60 10 5 2 0.050 2303140 112 01-060 1.12 2 + 1.13 2 160 25 14 3 0.550 2303183 112 2-160 1.12 00 + 1.13 00 80 14 8 2 0.100 2303159 112 00-080 1.12 3 + 1.13 3 200 32 20 4 1.070 2303191 112 3-200 435
