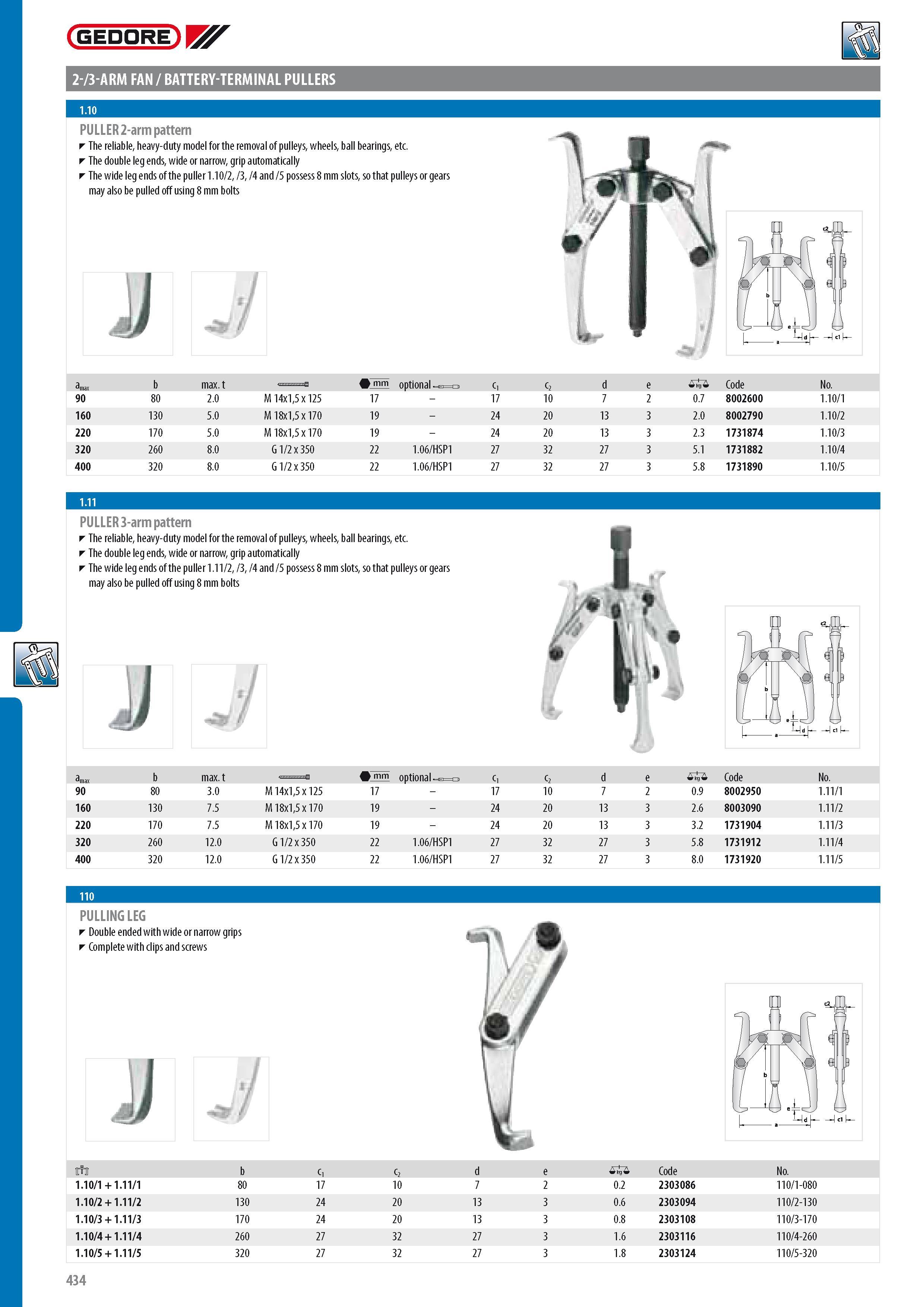

GEDORE 2- 3-ARM FAN BATTERY-TERMINAL PULLERS PULLER 2-arm pattern The reliable heavy-duty model for the removal of pulleys wheels ball bearings etc. The double leg ends wide or narrow grip automatically T he wide leg ends of the puller 1.10 2 3 4 and 5 possess 8 mm slots so that pulleys or gears may also be pulled off using 8 mm bolts 4 I li u I 0 - fl amax b max. mm optional c1 c2 d e -0 Code No. 90 80 2.0 M 14x15 x 125 17 - 17 10 7 2 0.7 8002600 1.10 1 160 130 5.0 M 18x15 x 170 19 - 24 20 13 3 2.0 8002790 1.10 2 220 170 5.0 M 18x15 x 170 19 - 24 20 13 3 2.3 1731874 1.10 3 320 260 8.0 G 1 2 x 350 22 1.06 HSP1 27 32 27 3 5.1 1731882 1.10 4 400 320 8.0 G 1 2 x 350 22 1.06 HSP1 27 32 27 3 5.8 1731890 1.10 5 1.11 PULLER 3-arm pattern The reliable heavy-duty model for the removal of pulleys wheels ball bearings etc. The double leg ends wide or narrow grip automatically T he wide leg ends of the puller 1.11 2 3 4 and 5 possess 8 mm slots so that pulleys or gears may also be pulled off using 8 mm bolts amax b max. . . mm optional c1 c2 d e 0 Code No. 90 80 3.0 M 14x15 x 125 17 - 17 10 7 2 0.9 8002950 1.11 1 160 130 7.5 M 18x15 x 170 19 - 24 20 13 3 2.6 8003090 1.11 2 220 170 7.5 M 18x15 x 170 19 - 24 20 13 3 3.2 1731904 1.11 3 320 260 12.0 G 1 2 x 350 22 1.06 HSP1 27 32 27 3 5.8 1731912 1.11 4 400 320 12.0 G 1 2 x 350 22 1.06 HSP1 27 32 27 3 8.0 1731920 1.11 5 PULLING LEG Double ended with wide or narrow grips Complete with clips and screws A b c1 c2 d e 0 Code No. 1.10 1 + 1.11 1 80 17 10 7 2 0.2 2303086 110 1-080 1.10 2 + 1.11 2 130 24 20 13 3 0.6 2303094 110 2-130 1.10 3 + 1.11 3 170 24 20 13 3 0.8 2303108 110 3-170 1.10 4 + 1.11 4 260 27 32 27 3 1.6 2303116 110 4-260 1.10 5 + 1.11 5 320 27 32 27 3 1.8 2303124 110 5-320 1.10 434
