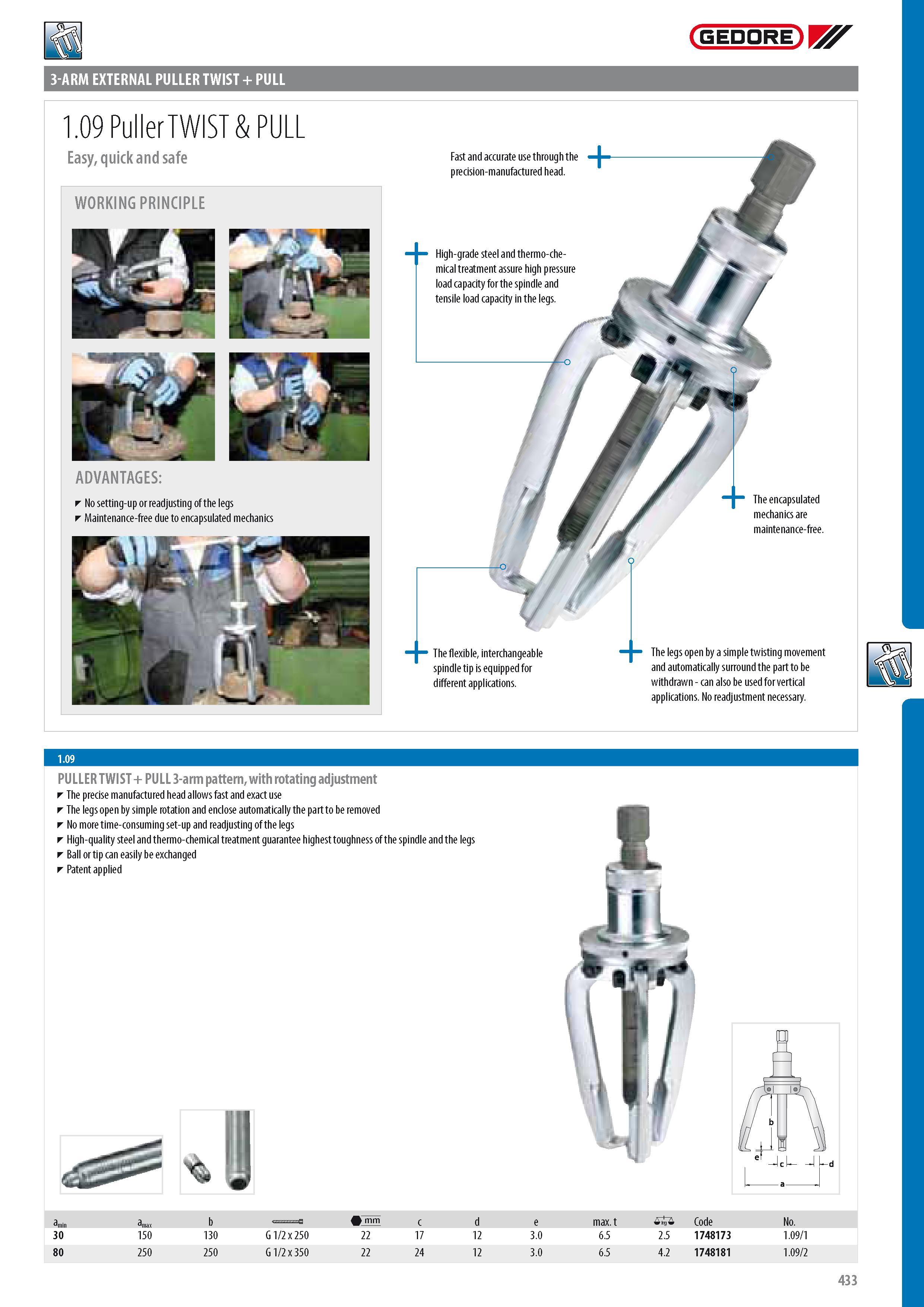

3-ARM EXTERNAL PULLER TWIST + PULL GEDORE 1.09 Puller TWIST & PULL Easy quick and safe WORKING PRINCIPLE ADVANTAGES No setting-up or readjusting of the legs Maintenance-free due to encapsulated mechanics Fast and accurate use through the precision-manufactured head. High-grade steel and thermo-chemical treatment assure high pressure load capacity for the spindle and tensile load capacity in the legs. The encapsulated mechanics are maintenance-free. The flexible interchangeable spindle tip is equipped for different applications. The legs open by a simple twisting movement and automatically surround the part to be withdrawn - can also be used for vertical applications. No readjustment necessary. PULLER TWIST + PULL 3-arm pattern with rotating adjustment The precise manufactured head allows fast and exact use The legs open by simple rotation and enclose automatically the part to be removed No more time-consuming set-up and readjusting of the legs H igh-quality steel and thermo-chemical treatment guarantee highest toughness of the spindle and the legs Ball or tip can easily be exchanged Patent applied amin amax b mm c d e max. 0 Code No. 30 150 130 G1 2x250 22 17 12 3.0 6.5 2.5 1748173 1.09 1 80 250 250 G1 2x350 22 24 12 3.0 6.5 4.2 1748181 1.09 2 433 1.09
