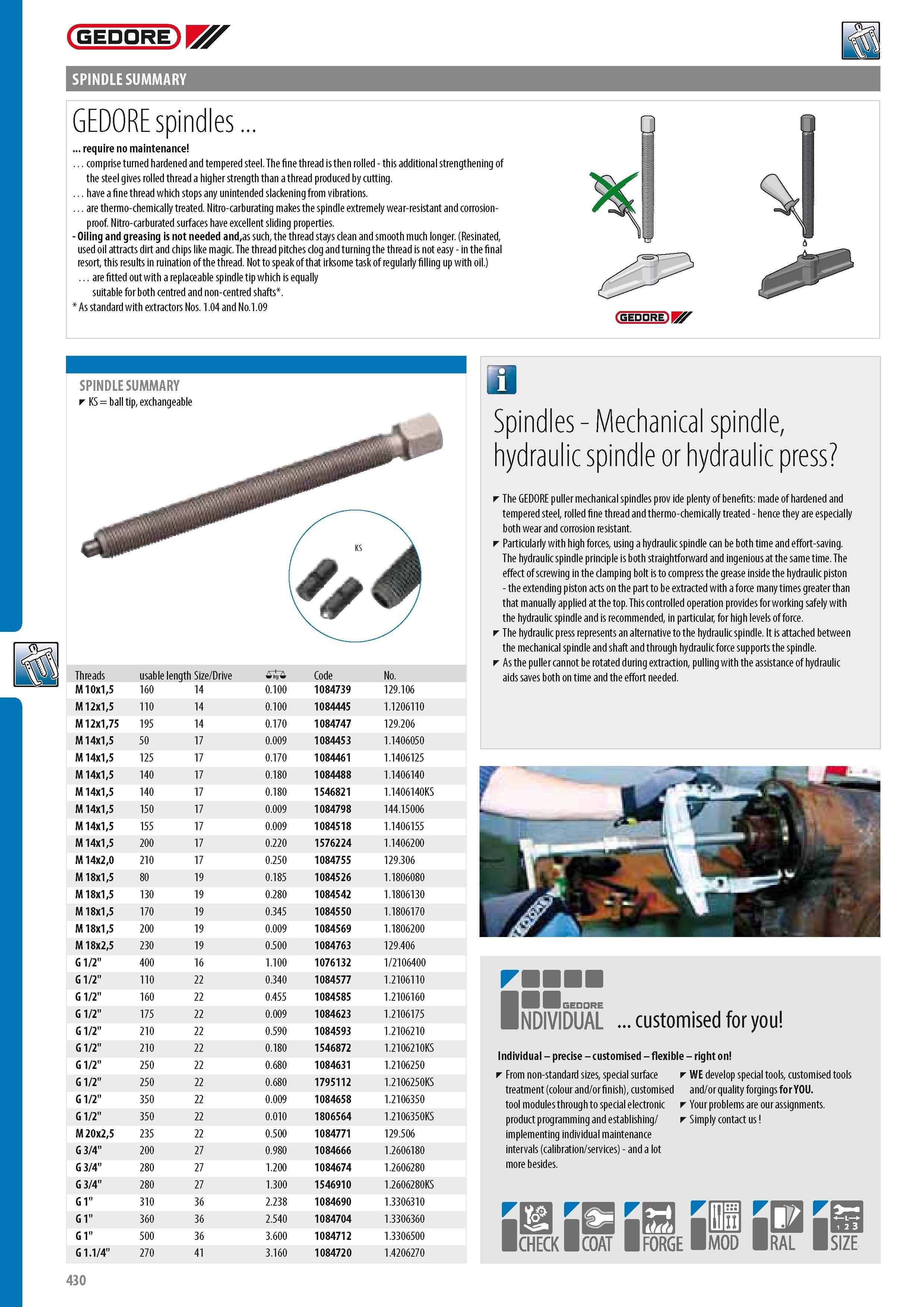

GEDORE SPINDLE SUMMARY GEDORE spindles require no maintenance comprise turned hardened and tempered steel. The fine thread is then rolled - this additional strengthening of the steel gives rolled thread a higher strength than a thread produced by cutting. have a fine thread which stops any unintended slackening from vibrations. are thermo-chemically treated. Nitro-carburating makes the spindle extremely wear-resistant and corrosion-proof. Nitro-carburated surfaces have excellent sliding properties. - Oiling and greasing is not needed andas such the thread stays clean and smooth much longer. (Resinated used oil attracts dirt and chips like magic. The thread pitches clog and turning the thread is not easy - in the final resort this results in ruination of the thread. Not to speak of that irksome task of regularly filling up with oil.) are fitted out with a replaceable spindle tip which is equally suitable for both centred and non-centred shafts . As standard with extractors Nos. 1.04 and No.1.09 GEDORE SPINDLE SUMMARY KS ball tip exchangeable Threads usable length Size Drive 0 Code No. M 10x15 160 14 0.100 1084739 129.106 M 12x15 110 14 0.100 1 084445 1.1206110 M12x175 195 14 0.170 1 084747 129.206 M 1 4x15 50 17 0.009 1 084453 1.1406050 M 1 4x15 125 17 0.170 1084461 1.1406125 M 1 4x15 140 17 0.180 1 084488 1.1406140 M 1 4x15 140 17 0.180 1546821 1.1406140KS M 1 4x15 150 17 0.009 1 084798 144.15006 M 1 4x15 155 17 0.009 1084518 1.1406155 M 14x15 200 17 0.220 1576224 1.1406200 M 14x20 210 17 0.250 1 084755 129.306 M 18x15 80 19 0.185 1084526 1.1806080 M 18x15 130 19 0.280 1084542 1.1806130 M 18x15 170 19 0.345 1084550 1.1806170 M 18x15 200 19 0.009 1084569 1.1806200 M 1 8x25 230 19 0.500 1084763 129.406 G 1 2" 400 16 1.100 1076132 1 2106400 G 1 2" 110 22 0.340 1084577 1.2106110 G 1 2" 160 22 0.455 1084585 1.2106160 G 1 2" 175 22 0.009 1084623 1.2106175 G 1 2" 210 22 0.590 1 084593 1.2106210 G 1 2" 210 22 0.180 1546872 1.2106210KS G 1 2" 250 22 0.680 1 084631 1.2106250 G 1 2" 250 22 0.680 1795112 1.2106250KS G 1 2" 350 22 0.009 1 084658 1.2106350 G 1 2" 350 22 0.010 1806564 1.2106350KS M20x25 235 22 0.500 1 084771 129.506 G 3 4" 200 27 0.980 1 084666 1.2606180 G 3 4" 280 27 1.200 1 084674 1.2606280 G 3 4" 280 27 1.300 1546910 1.2606280KS G 1" 310 36 2.238 1 084690 1.3306310 G 1" 360 36 2.540 1 084704 1.3306360 G 1" 500 36 3.600 1 08471 2 1.3306500 G 1 . 1 4" 270 41 3.160 1 084720 1.4206270 a Spindles - Mechanical spindle hydraulic spindle or hydraulic press The GEDORE puller mechanical spindles prov ide plenty of benefits made of hardened and tempered steel rolled fine thread and thermo-chemically treated - hence they are especially both wear and corrosion resistant. Particularly with high forces using a hydraulic spindle can be both time and effort-saving. The hydraulic spindle principle is both straightforward and ingenious at the same time. The effect of screwing in the clamping bolt is to compress the grease inside the hydraulic piston - the extending piston acts on the part to be extracted with a force many times greater than that manually applied at the top. This controlled operation provides for working safely with the hydraulic spindle and is recommended in particular for high levels of force. The hydraulic press represents an alternative to the hydraulic spindle. It is attached between the mechanical spindle and shaft and through hydraulic force supports the spindle. As the puller cannot be rotated during extraction pulling with the assistance of hydraulic aids saves both on time and the effort needed. Individual customised for you Individual - precise - customised - flexible - right on From non-standard sizes special surface treatment (colour and or finish) customised tool modules through to special electronic product programming and establishing implementing individual maintenance intervals (calibration services) - and a lot more besides. WE develop special tools customised tools and or quality forgings for YOU. Your problems are our assignments. Simply contact us rm v IcHECK IcOAT FORGE r MOD r Iral L 430
