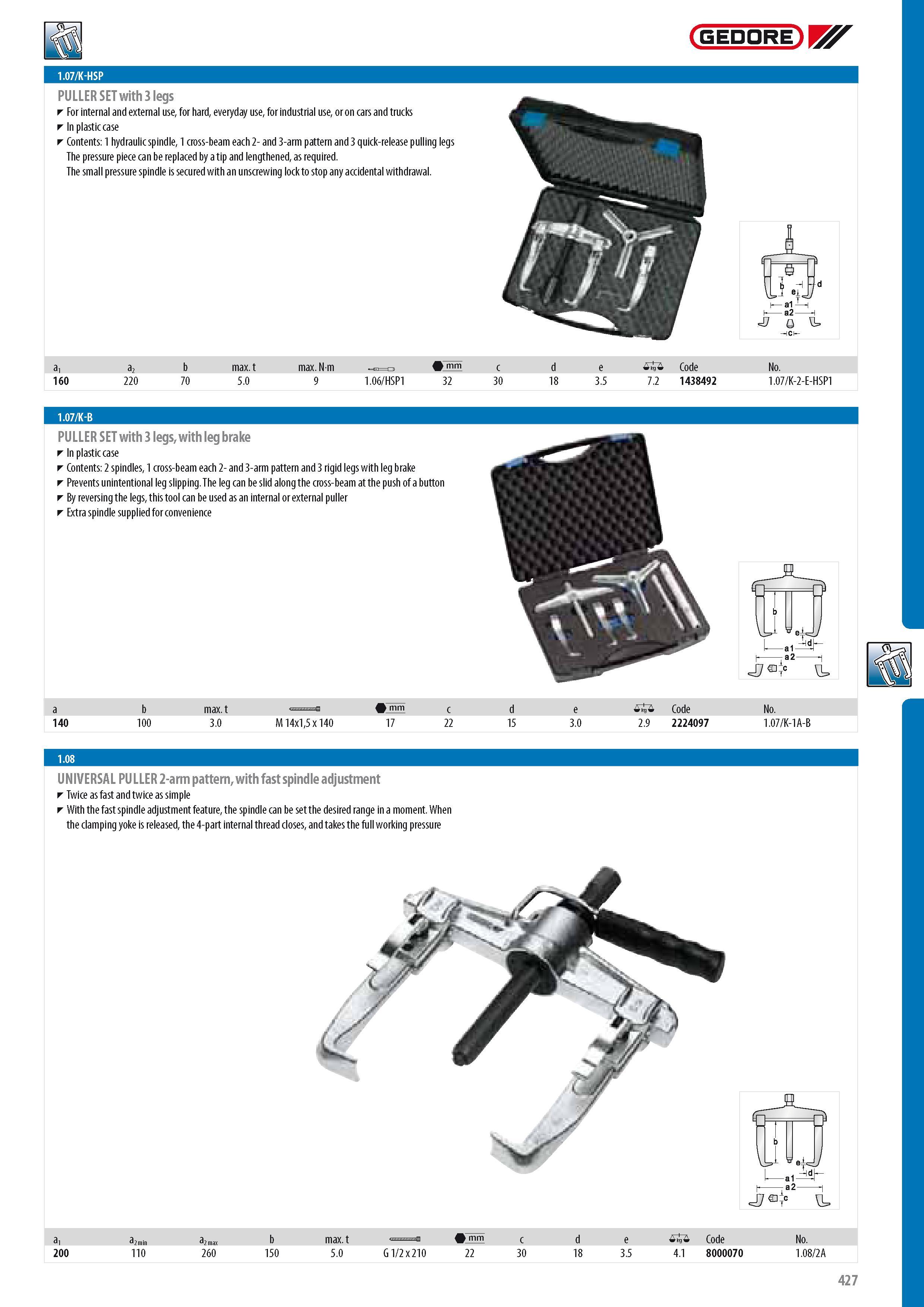

GEDORE 1.07 K-HSP PULLER SET with 3 legs For internal and external use for hard everyday use for industrial use or on cars and trucks In plastic case Contents 1 hydraulic spindle 1 cross-beam each 2- and 3-arm pattern and 3 quick-release pulling legs The pressure piece can be replaced by a tip and lengthened as required. The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal. 3 I al -i i h a2 --h 7 a a1 a2 b max. max. Nm mm c d e 0 Code No. 160 220 70 5.0 9 1.06 HSP1 32 30 18 3.5 7.2 1438492 1.07 K-2-E-HSP1 1.07 K-B 1 PULLER SET with 3 legs with leg brake In plastic case Contents 2 spindles 1 cross-beam each 2- and 3-arm pattern and 3 rigid legs with leg brake Prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button By reversing the legs this tool can be used as an internal or external puller Extra spindle supplied for convenience f b vU 'e4i L -a1 h -:2 --1 W7 tc a b max. mm c d e 0 Code No. 1 40 100 3.0 M 14x15 x 140 17 22 15 3.0 2.9 2224097 1.07 K-1A-B 1.08 UNIVERSAL PULLER 2-arm pattern with fast spindle adjustment Twice as fast and twice as simple With the fast spindle adjustment feature the spindle can be set the desired range in a moment. When the clamping yoke is released the 4-part internal thread closes and takes the full working pressure a1 200 a2 min 110 a2 max 260 b max. a mm c d e 0 Code No. 150 5.0 G 1 2 x 210 22 30 18 3.5 4.1 8000070 1.08 2A 427
