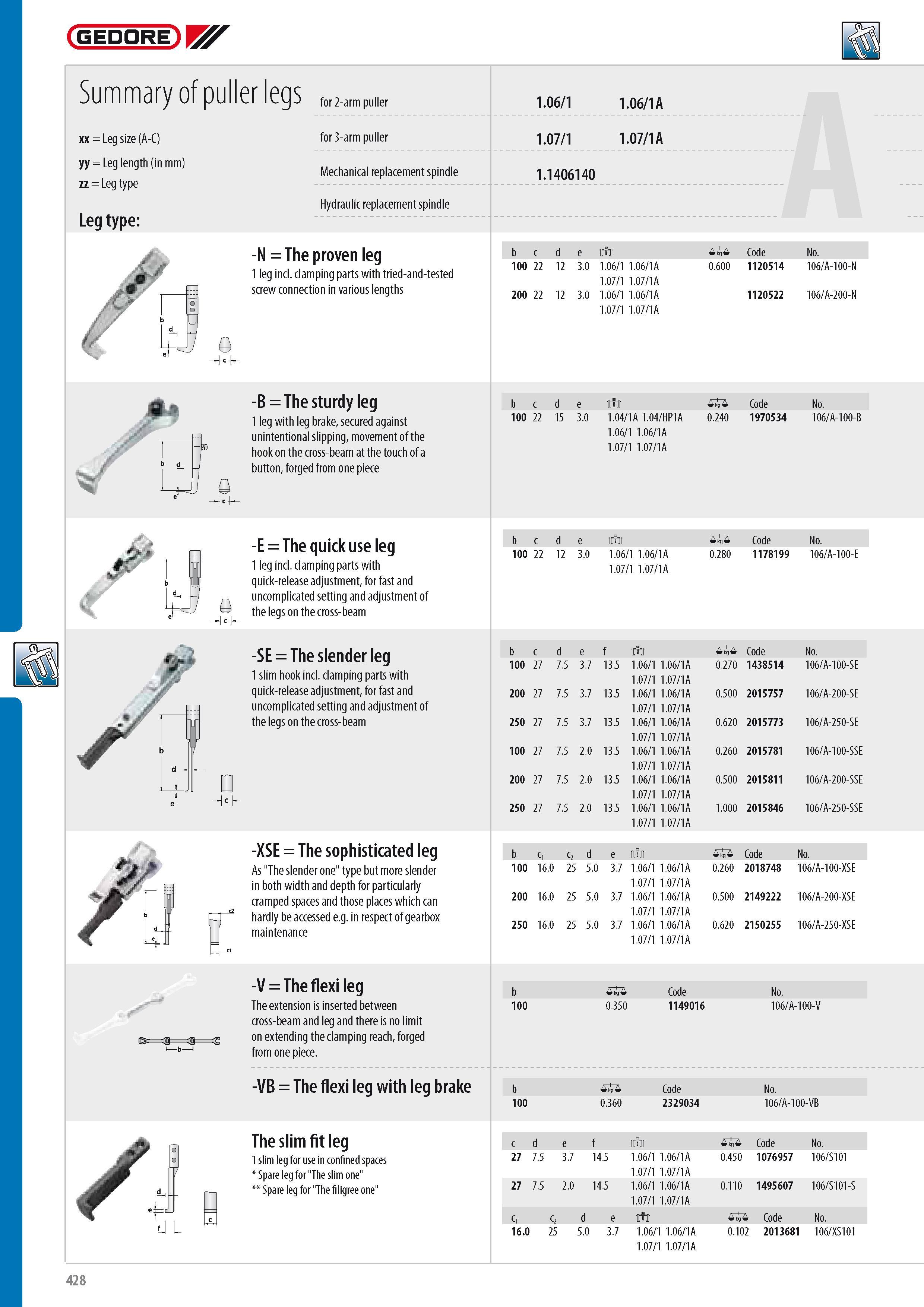

GEDORE Summary of puller legs xx Leg size (A-C) yy Leg length (in mm) zz Leg type Leg type for 2-arm puller for 3-arm puller Mechanical replacement spindle Hydraulic replacement spindle -N The proven leg 1 leg incl. clamping parts with tried-and-tested screw connection in various lengths -B The sturdy leg 1 leg with leg brake secured against unintentional slipping movement of the hook on the cross-beam at the touch of a button forged from one piece 1.06 1 1.06 1A 1.07 1 1.07 1A 1.1406140 b c 100 22 200 22 12 e A 3.0 1.06 1 1.06 1A 1.07 1 1.07 1A 3.0 1.06 1 1.06 1A 1.07 1 1.07 1A b c d e A 100 22 15 3.0 1.04 1A 1.04 HP1A 1.06 1 1.06 1A 1.07 1 1.07 1A -0 0.240 1120522 0 Code No. 0.600 1120514 106 A-100-N 106 A-200-N Code No. 1970534 106 A-100-B -E The quick use leg 1 leg incl. clamping parts with quick-release adjustment for fast and uncomplicated setting and adjustment of the legs on the cross-beam -SE The slender leg 1 slim hook incl. clamping parts with quick-release adjustment for fast and uncomplicated setting and adjustment of the legs on the cross-beam -XSE The sophisticated leg As "The slender one" type but more slender in both width and depth for particularly cramped spaces and those places which can hardly be accessed e.g. in respect of gearbox maintenance -V The flexi leg The extension is inserted between cross-beam and leg and there is no limit on extending the clamping reach forged from one piece. -VB The flexi leg with leg brake b c d e A 100 22 12 3.0 1.06 1 1.06 1A 1.07 1 1.07 1A 0 Code No. 0.280 1178199 106 A-100-E b c d e f A 0 Code No. 100 27 7.5 3.7 13.5 1.06 1 1.07 1 1.06 1A 1.07 1A 0.270 1438514 106 A-100-SE 200 27 7.5 3.7 13.5 1.06 1 1.07 1 1.06 1A 1.07 1A 0.500 2015757 106 A-200-SE 250 27 7.5 3.7 13.5 1.06 1 1.07 1 1.06 1A 1.07 1A 0.620 2015773 106 A-250-SE 100 27 7.5 2.0 13.5 1.06 1 1.07 1 1.06 1A 1.07 1A 0.260 2015781 106 A-100-SSE 200 27 7.5 2.0 13.5 1.06 1 1.07 1 1.06 1A 1.07 1A 0.500 2015811 106 A-200-SSE 250 27 7.5 2.0 13.5 1.06 1 1.07 1 1.06 1A 1.07 1A 1.000 2015846 106 A-250-SSE b c1 c2 d e A 0 Code No. 100 16.0 25 5.0 3.7 1.06 1 1.07 1 1.06 1A 1.07 1A 0.260 2018748 106 A-100-XSE 200 16.0 25 5.0 3.7 1.06 1 1.07 1 1.06 1A 1.07 1A 0.500 2149222 106 A-200-XSE 250 16.0 25 5.0 3.7 1.06 1 1.07 1 1.06 1A 1.07 1A 0.620 2150255 106 A-250-XSE b 100 b 100 0 0.350 0 0.360 Code 1149016 Code 2329034 No. 106 A-100-V No. 106 A-100-VB The slim fit leg 1 slim leg for use in confined spaces Spare leg for "The slim one" Spare leg for "The filigree one" c d e f 27 7.5 3.7 14.5 27 7.5 2.0 14.5 A 1.06 1 1.06 1A 1.07 1 1.07 1A 1.06 1 1.06 1A 1.07 1 1.07 1A c1 c2 d e A 16.0 25 5.0 3.7 1.06 1 1.06 1A 1.07 1 1.07 1A 0 Code No. 0.450 1076957 106 S101 0.110 1495607 106 S101-S 0 Code No. 0.102 2013681 106 XS101 428
