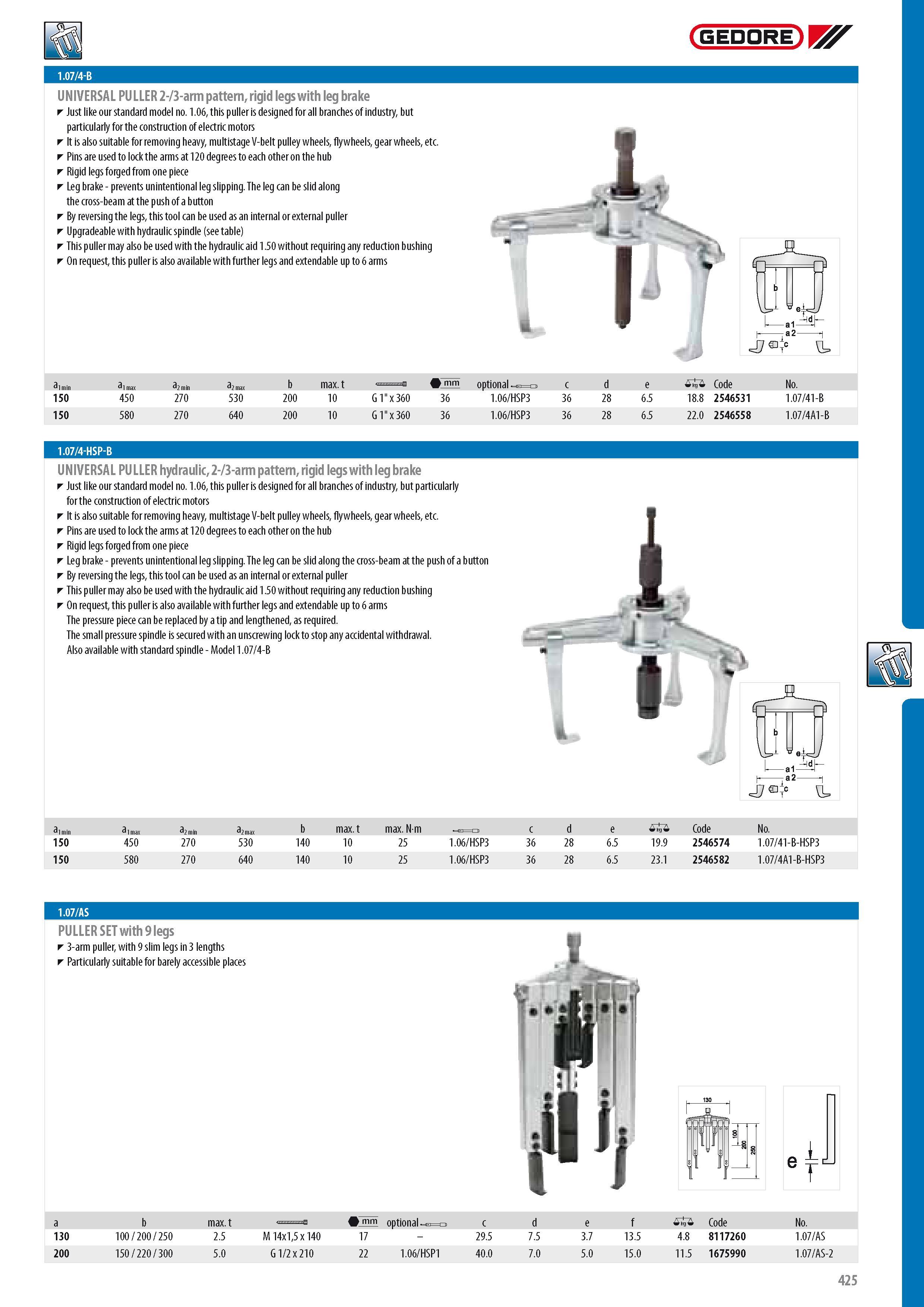

GEDORE UNIVERSAL PULLER 2- 3-arm pattern rigid legs with leg brake Just like our standard model no. 1.06 this puller is designed for all branches of industry but particularly for the construction of electric motors It is also suitable for removing heavy multistage V-belt pulley wheels flywheels gear wheels etc. Pins are used to lock the arms at 120 degrees to each other on the hub Rigid legs forged from one piece Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button By reversing the legs this tool can be used as an internal or external puller Upgradeable with hydraulic spindle (see table) This puller may also be used with the hydraulic aid 1.50 without requiring any reduction bushing On request this puller is also available with further legs and extendable up to 6 arms A I - I a1 min a1 max a2 min a2 max b max. mm optional c d e 0 Code No. 150 450 270 530 200 10 G 1" x 360 36 1.06 HSP3 36 28 6.5 18.8 2546531 1.07 41-B 150 580 270 640 200 10 G 1" x 360 36 1.06 HSP3 36 28 6.5 22.0 2546558 1.07 4A1-B 1.07 4-HSP-B UNIVERSAL PULLER hydraulic 2- 3-arm pattern rigid legs with leg brake Just like our standard model no. 1.06 this puller is designed for all branches of industry but particularly for the construction of electric motors It is also suitable for removing heavy multistage V-belt pulley wheels flywheels gear wheels etc. Pins are used to lock the arms at 120 degrees to each other on the hub Rigid legs forged from one piece Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button By reversing the legs this tool can be used as an internal or external puller This puller may also be used with the hydraulic aid 1.50 without requiring any reduction bushing On request this puller is also available with further legs and extendable up to 6 arms The pressure piece can be replaced by a tip and lengthened as required. The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal. Also available with standard spindle - Model 1.07 4-B a1 min a1 max a2 min a2 max b max. max. Nm c d e -0 Code No. 150 450 270 530 140 10 25 1.06 HSP3 36 28 6.5 19.9 2546574 1.07 41-B-HSP3 150 580 270 640 140 10 25 1.06 HSP3 36 28 6.5 23.1 2546582 1.07 4A1-B-HSP3 PULLER SET with 9 legs 3-arm puller with 9 slim legs in 3 lengths Particularly suitable for barely accessible places 100 8 1 T a b max. mm optional c d e f 0 Code No. 130 100 200 250 2.5 M 14x15 x 140 17 - 29.5 7.5 3.7 13.5 4.8 8117260 1.07 AS 200 150 220 300 5.0 G1 2x210 22 1.06 HSP1 40.0 7.0 5.0 15.0 11.5 1675990 1.07 AS-2 425
