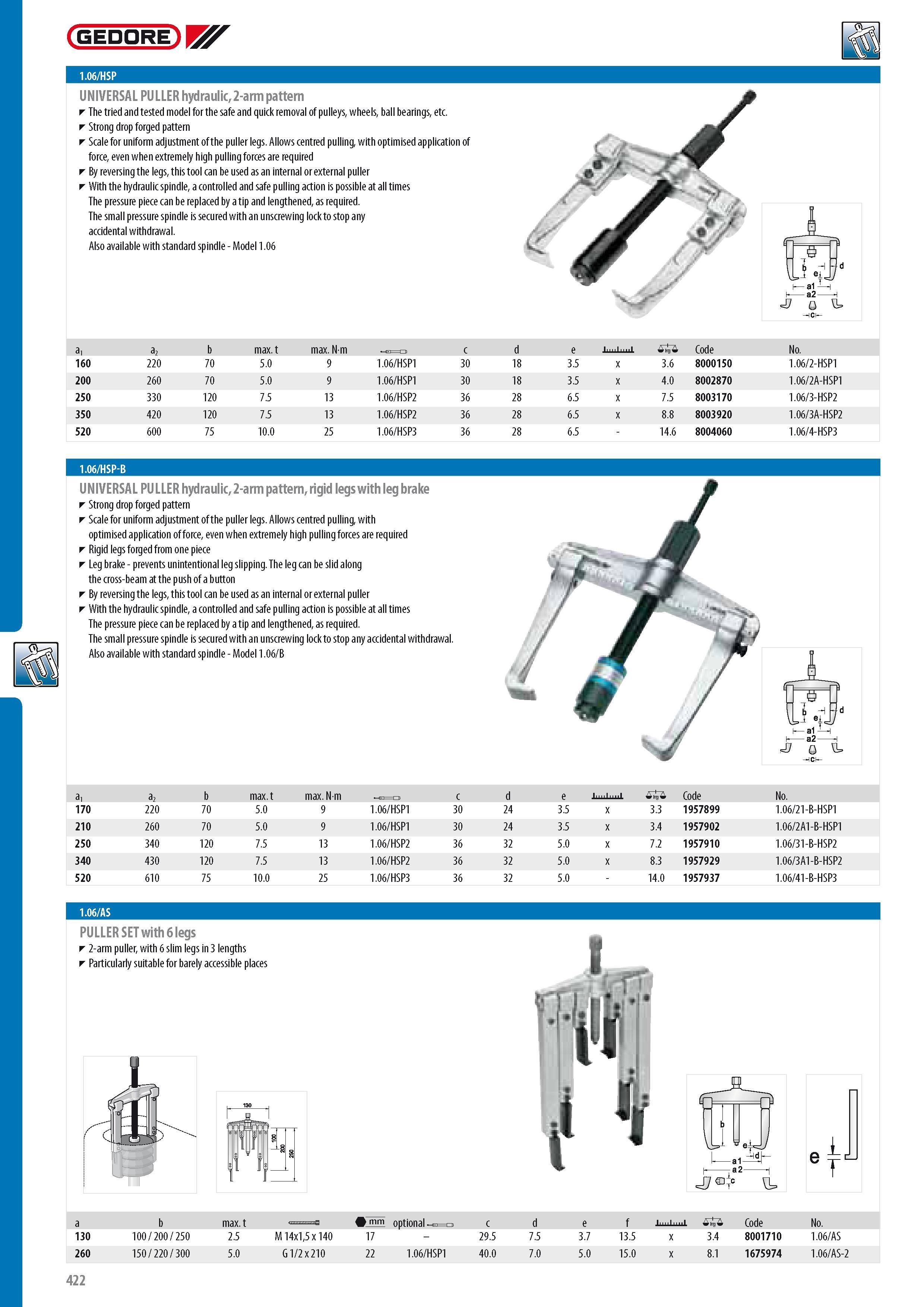

GEDORE UNIVERSAL PULLER hydraulic 2-arm pattern The tried and tested model for the safe and quick removal of pulleys wheels ball bearings etc. Strong drop forged pattern Scale for uniform adjustment of the puller legs. Allows centred pulling with optimised application of force even when extremely high pulling forces are required By reversing the legs this tool can be used as an internal or external puller With the hydraulic spindle a controlled and safe pulling action is possible at all times The pressure piece can be replaced by a tip and lengthened as required. The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal. Also available with standard spindle - Model 1.06 a1 a2 b max. max. Nm c d e . 0 Code No. 160 220 70 5.0 9 1.06 HSP1 30 18 3.5 x 3.6 8000150 1.06 2-HSP1 200 260 70 5.0 9 1.06 HSP1 30 18 3.5 x 4.0 8002870 1.06 2A-HSP1 250 330 120 7.5 13 1.06 HSP2 36 28 6.5 x 7.5 8003170 1.06 3-HSP2 350 420 120 7.5 13 1.06 HSP2 36 28 6.5 x 8.8 8003920 1.06 3A-HSP2 520 600 75 10.0 25 1.06 HSP3 36 28 6.5 - 14.6 8004060 1.06 4-HSP3 1.06 HSP-B UNIVERSAL PULLER hydraulic 2-arm pattern rigid legs with leg brake Strong drop forged pattern Scale for uniform adjustment of the puller legs. Allows centred pulling with optimised application of force even when extremely high pulling forces are required Rigid legs forged from one piece Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button By reversing the legs this tool can be used as an internal or external puller With the hydraulic spindle a controlled and safe pulling action is possible at all times The pressure piece can be replaced by a tip and lengthened as required. The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal. Also available with standard spindle - Model 1.06 B a1 a2 b max. max. Nm c d e . 0 Code No. 170 220 70 5.0 9 1.06 HSP1 30 24 3.5 x 3.3 1957899 1.06 21-B-HSP1 210 260 70 5.0 9 1.06 HSP1 30 24 3.5 x 3.4 1957902 1.06 2A1-B-HSP1 250 340 120 7.5 13 1.06 HSP2 36 32 5.0 x 7.2 1957910 1.06 31-B-HSP2 340 430 120 7.5 13 1.06 HSP2 36 32 5.0 x 8.3 1957929 1.06 3A1-B-HSP2 520 610 75 10.0 25 1.06 HSP3 36 32 5.0 - 14.0 1957937 1.06 41-B-HSP3 1.06 AS PULLER SET with 6 legs 2-arm puller with 6 slim legs in 3 lengths Particularly suitable for barely accessible places 1 T a b max. . mm optional c d e f . 0 Code No. 130 100 200 250 2.5 M 14x15 x 140 17 - 29.5 7.5 3.7 13.5 x 3.4 8001710 1.06 AS 260 150 220 300 5.0 G1 2x210 22 1.06 HSP1 40.0 7.0 5.0 15.0 x 8.1 1675974 1.06 AS-2 1.06 HSP 422
