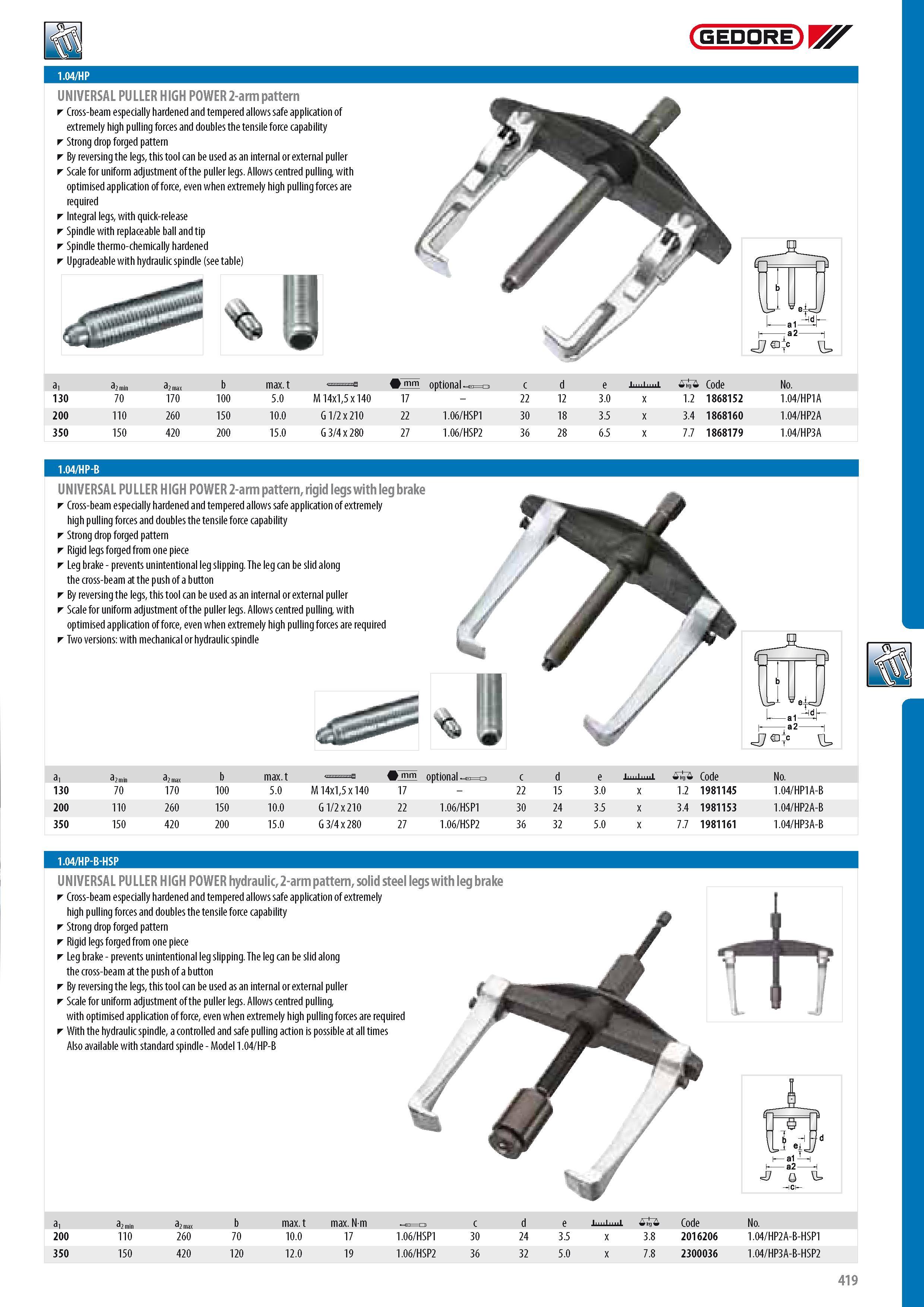

GEDORE UNIVERSAL PULLER HIGH POWER 2-arm pattern Cross-beam especially hardened and tempered allows safe application of extremely high pulling forces and doubles the tensile force capability Strong drop forged pattern By reversing the legs this tool can be used as an internal or external puller Scale for uniform adjustment of the puller legs. Allows centred pulling with optimised application of force even when extremely high pulling forces are required Integral legs with quick-release Spindle with replaceable ball and tip Spindle thermo-chemically hardened Upgradeable with hydraulic spindle (see table) a1 a2 min a2 ma b max. mm optional c d e 0 Code No. 130 70 170 100 5.0 M 14x15 x 140 17 - 22 12 3.0 x 1.2 1868152 1.04 HP1A 200 110 260 150 10.0 G1 2x210 22 1.06 HSP1 30 18 3.5 x 3.4 1868160 1.04 HP2A 350 150 420 200 15.0 G 3 4x280 27 1.06 HSP2 36 28 6.5 x 7.7 1868179 1.04 HP3A 1.04 HP-B UNIVERSAL PULLER HIGH POWER 2-arm pattern rigid legs with leg brake Cross-beam especially hardened and tempered allows safe application of extremely high pulling forces and doubles the tensile force capability Strong drop forged pattern Rigid legs forged from one piece Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button By reversing the legs this tool can be used as an internal or external puller Scale for uniform adjustment of the puller legs. Allows centred pulling with optimised application of force even when extremely high pulling forces are required Two versions with mechanical or hydraulic spindle a1 a2 min a2 max b max. . mm optional c d e 0 Code No. 130 70 170 100 5.0 M 14x15 x 140 17 - 22 15 3.0 x 1.2 1981145 1.04 HP1A-B 200 110 260 150 10.0 G1 2x210 22 1.06 HSP1 30 24 3.5 x 3.4 1981153 1.04 HP2A-B 350 150 420 200 15.0 G 3 4x280 27 1.06 HSP2 36 32 5.0 x 7.7 1981161 1.04 HP3A-B 1.04 HP 1.04 HP-B-HSP UNIVERSAL PULLER HIGH POWER hydraulic 2-arm pattern solid steel legs with leg brake Cross-beam especially hardened and tempered allows safe application of extremely high pulling forces and doubles the tensile force capability Strong drop forged pattern Rigid legs forged from one piece Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button By reversing the legs this tool can be used as an internal or external puller Scale for uniform adjustment of the puller legs. Allows centred pulling with optimised application of force even when extremely high pulling forces are required With the hydraulic spindle a controlled and safe pulling action is possible at all times Also available with standard spindle - Model 1.04 HP-B a1 a2 min a2 max b max. max. Nm c d e -0 Code No. 200 110 260 70 10.0 17 1.06 HSP1 30 24 3.5 x 3.8 2016206 1.04 HP2A-B-HSP1 350 150 420 120 12.0 19 1.06 HSP2 36 32 5.0 x 7.8 2300036 1.04 HP3A-B-HSP2 419
