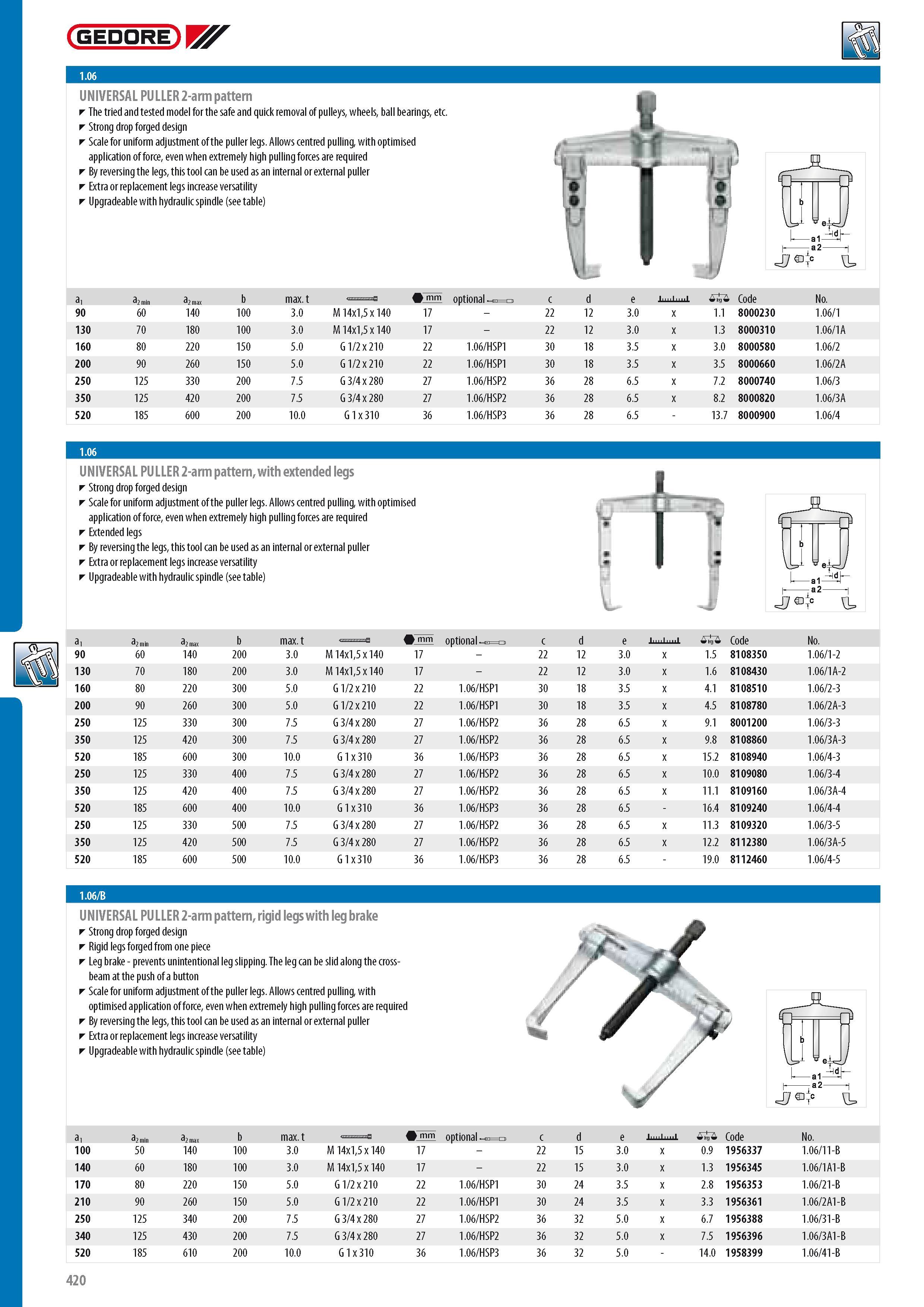

GEDORE UNIVERSAL PULLER 2-arm pattern The tried and tested model for the safe and quick removal of pulleys wheels ball bearings etc. T Strong drop forged design Scale for uniform adjustment of the puller legs. Allows centred pulling with optimised application of force even when extremely high pulling forces are required By reversing the legs this tool can be used as an internal or external puller Extra or replacement legs increase versatility Upgradeable with hydraulic spindle (see table) a. a2 min a2 maX b max. mm optional c d e -0 Code No. 90 60 140 100 3.0 M 14x15 x 140 17 - 22 12 3.0 x 1.1 8000230 1.06 1 130 70 180 100 3.0 M 14x15 x 140 17 - 22 12 3.0 x 1.3 8000310 1.06 1A 160 80 220 150 5.0 G1 2x210 22 1.06 HSP1 30 18 3.5 x 3.0 8000580 1.06 2 200 90 260 150 5.0 G1 2x210 22 1.06 HSP1 30 18 3.5 x 3.5 8000660 1.06 2A 250 125 0 3 3 200 7.5 G 3 4 x 280 27 1.06 HSP2 36 28 6.5 x 7.2 8000740 1.06 3 350 125 420 200 7.5 G 3 4 x 280 27 1.06 HSP2 36 28 6.5 x 8.2 8000820 1.06 3A 520 185 600 200 10.0 G 1 x310 36 1.06 HSP3 36 28 6.5 - 13.7 8000900 1.06 4 UNIVERSAL PULLER 2-arm pattern with extended legs T Strong drop forged design Scale for uniform adjustment of the puller legs. Allows centred pulling with optimised application of force even when extremely high pulling forces are required Extended legs By reversing the legs this tool can be used as an internal or external puller Extra or replacement legs increase versatility Upgradeable with hydraulic spindle (see table) a1 a2 min a2 max b max. mm optional c d e . -0 Code No. 90 60 124m0ax 200 3.0 M 14x15 x 140 17 - 22 12 3.0 x 1.5 81 08350 1.06 1-2 130 70 180 200 3.0 M 14x15 x 140 17 - 22 12 3.0 x 1.6 81 08430 1.06 1A-2 160 80 220 300 5.0 G 1 2 x 210 22 1.06 HSP1 30 18 3.5 x 4.1 8108510 1.06 2-3 200 90 260 300 5.0 G 1 2 x 210 22 1.06 HSP1 30 18 3.5 x 4.5 81 08780 1.06 2A-3 250 125 330 300 7.5 G 3 4 x 280 27 1.06 HSP2 36 28 6.5 x 9.1 8001200 1.06 3-3 350 125 420 300 7.5 G 3 4 x 280 27 1.06 HSP2 36 28 6.5 x 9.8 81 08860 1.06 3A-3 520 185 600 300 10.0 G 1 x 310 36 1.06 HSP3 36 28 6.5 x 15.2 81 08940 1.06 4-3 250 125 330 400 7.5 G 3 4 x 280 27 1.06 HSP2 36 28 6.5 x 10.0 81 09080 1.06 3-4 350 125 420 400 7.5 G 3 4 x 280 27 1.06 HSP2 36 28 6.5 x 11.1 8109160 1.06 3A-4 520 185 600 400 10.0 G 1 x310 36 1.06 HSP3 36 28 6.5 - 16.4 81 09240 1.06 4-4 250 125 330 500 7.5 G 3 4 x 280 27 1.06 HSP2 36 28 6.5 x 11.3 81 09320 1.06 3-5 350 125 420 500 7.5 G 3 4 x 280 27 1.06 HSP2 36 28 6.5 x 12.2 8112380 1.06 3A-5 520 185 600 500 10.0 G 1 x310 36 1.06 HSP3 36 28 6.5 - 19.0 8112460 1.06 4-5 UNIVERSAL PULLER 2-arm pattern rigid legs with leg brake Strong drop forged design Rigid legs forged from one piece Leg brake - prevents unintentional leg slipping. The leg can be slid along the crossbeam at the push of a button Scale for uniform adjustment of the puller legs. Allows centred pulling with optimised application of force even when extremely high pulling forces are required By reversing the legs this tool can be used as an internal or external puller Extra or replacement legs increase versatility Upgradeable with hydraulic spindle (see table) a1 a2 min a2 max b max. mm J rc sn o c d e -0 Code No. 100 50 124m0ax 100 3.0 M 14x15 x 140 17 - 22 15 3.0 x 0.9 1956337 1.06 11-B 1 40 60 180 100 3.0 M 14x15 x 140 17 - 22 15 3.0 x 1.3 1 956345 1.06 1A1-B 170 80 220 150 5.0 G 1 2 x 210 22 1.06 HSP1 30 24 3.5 x 2.8 1956353 1.06 21-B 210 90 260 150 5.0 G 1 2 x 210 22 1.06 HSP1 30 24 3.5 x 3.3 1956361 1.06 2A1-B 250 125 340 200 7.5 G 3 4 x 280 27 1.06 HSP2 36 32 5.0 x 6.7 1956388 1.06 31-B 340 125 430 200 7.5 G 3 4 x 280 27 1.06 HSP2 36 32 5.0 x 7.5 1956396 1.06 3A1-B 520 185 610 200 10.0 G 1 x310 36 1.06 HSP3 36 32 5.0 - 14.0 1958399 1.06 41-B 420
