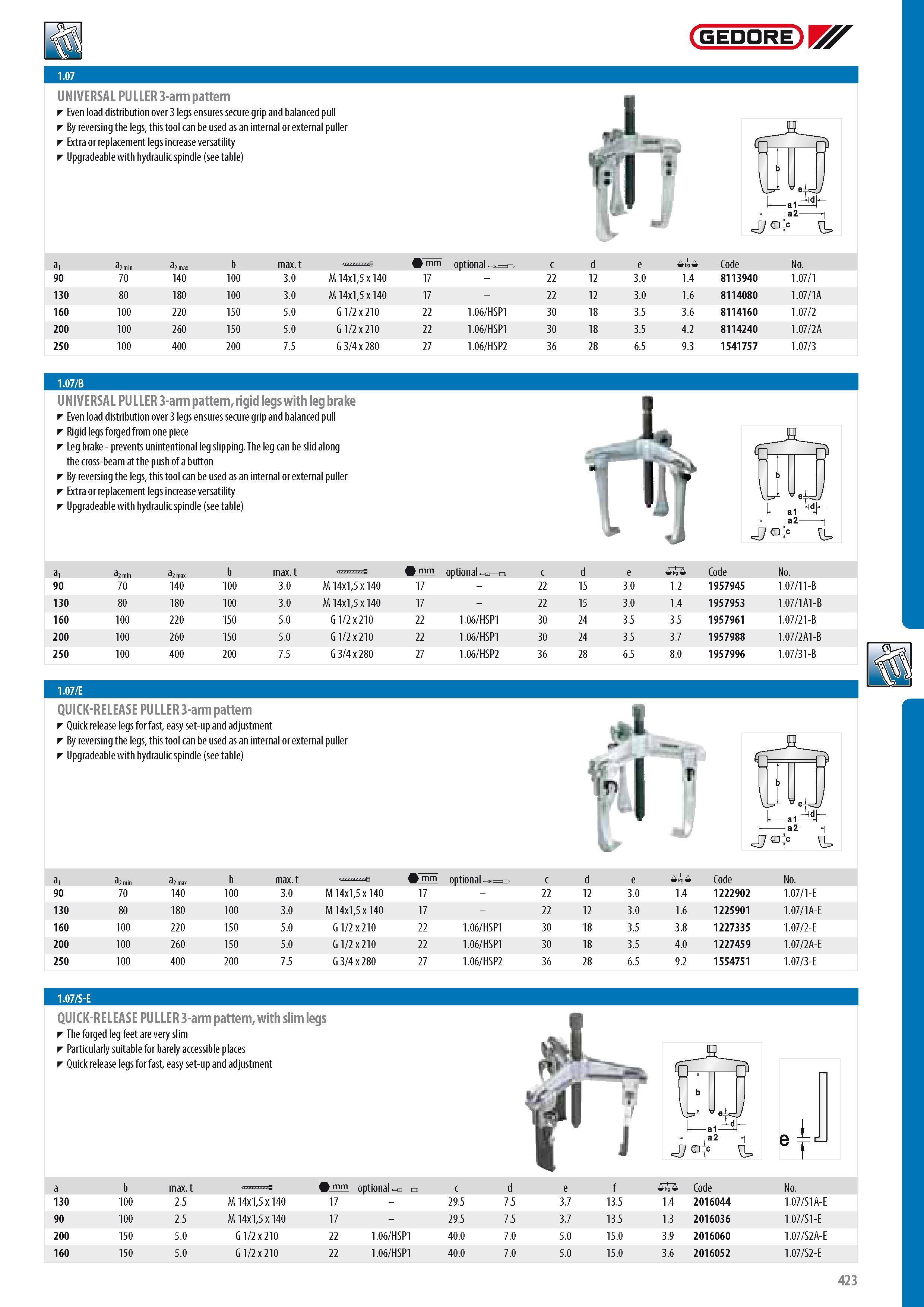

425 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.423

Каталог GEDORE 2014 Слесарный инструмент Стр. 423 0425 ENG Lab2u

GEDORE WF UNIVERSAL PULLER 3-arm pattern Even load distribution over 3 legs ensures secure grip and balanced pull By reversing the legs this tool can be used as an internal or external puller Extra or replacement legs increase versatility Upgradeable with hydraulic spindle (see table) a1 a2 min a2 maI b max. optional c d e -i0 Code No. 910 72m0in 140 100 3.0 M 14x15 x 140 17 - 22 12 3.0 1.4 8113940 1.07 1 130 80 180 100 3.0 M 14x15 x 140 17 - 22 12 3.0 1.6 8114080 1.07 1A 160 100 220 150 5.0 G 1 2 x 210 22 1.06 HSP1 30 18 3.5 3.6 8114160 1.07 2 200 100 260 150 5.0 G 1 2 x 210 22 1.06 HSP1 30 18 3.5 4.2 8114240 1.07 2A 250 100 400 200 7.5 G 3 4 x 280 27 1.06 HSP2 36 28 6.5 9.3 1541757 1.07 3 UNIVERSAL PULLER 3-arm pattern rigid legs with leg brake Even load distribution over 3 legs ensures secure grip and balanced pull Rigid legs forged from one piece Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button By reversing the legs this tool can be used as an internal or external puller Extra or replacement legs increase versatility Upgradeable with hydraulic spindle (see table) a1 a2 min a2 max b max. optional c d e -i0 Code No. 910 70 124m0ax 100 3.0 M 14x15 x140 17 - 22 15 3.0 1.2 1 957945 1.07 11-B 130 80 180 100 3.0 M 14x15 x140 17 - 22 15 3.0 1.4 1957953 1.07 1A1-B 160 100 220 150 5.0 G 1 2x210 22 1.06 HSP1 30 24 3.5 3.5 1957961 1.07 21-B 200 100 260 150 5.0 G 1 2x210 22 1.06 HSP1 30 24 3.5 3.7 1957988 1.07 2A1-B 250 100 400 200 7.5 G 3 4x280 27 1.06 HSP2 36 28 6.5 8.0 1957996 1.07 31-B QUICK-RELEASE PULLER 3-arm pattern Quick release legs for fast easy set-up and adjustment By reversing the legs this tool can be used as an internal or external puller Upgradeable with hydraulic spindle (see table) a1 a2 min a2 max b max. optional c d e -i0 Code No. 90 70 140 100 3.0 M 14x15 x 140 17 - 22 12 3.0 1.4 1222902 1.07 1-E 130 80 180 100 3.0 M 14x15 x 140 17 - 22 12 3.0 1.6 1225901 1.07 1A-E 160 100 220 150 5.0 G1 2x210 22 1.06 HSP1 30 18 3.5 3.8 1227335 1.07 2-E 200 100 260 150 5.0 G1 2x210 22 1.06 HSP1 30 18 3.5 4.0 1 227459 1.07 2A-E 250 100 400 200 7.5 G 3 4 x 280 27 1.06 HSP2 36 28 6.5 9.2 1 554751 1.07 3-E QUICK-RELEASE PULLER 3-arm pattern with slim legs The forged leg feet are very slim Particularly suitable for barely accessible places Quick release legs for fast easy set-up and adjustment 1 T a b max. optional o c d e f 0 Code No. 130 100 2.5 M 14x15 x 140 17 - 29.5 7.5 3.7 13.5 1.4 2016044 1.07 S1A-E 90 100 2.5 M 14x15 x 140 17 - 29.5 7.5 3.7 13.5 1.3 2016036 1.07 S1-E 200 150 5.0 G 1 2 x 210 22 1.06 HSP1 40.0 7.0 5.0 15.0 3.9 2016060 1.07 S2A-E 160 150 5.0 G 1 2 x 210 22 1.06 HSP1 40.0 7.0 5.0 15.0 3.6 2016052 1.07 S2-E 423
