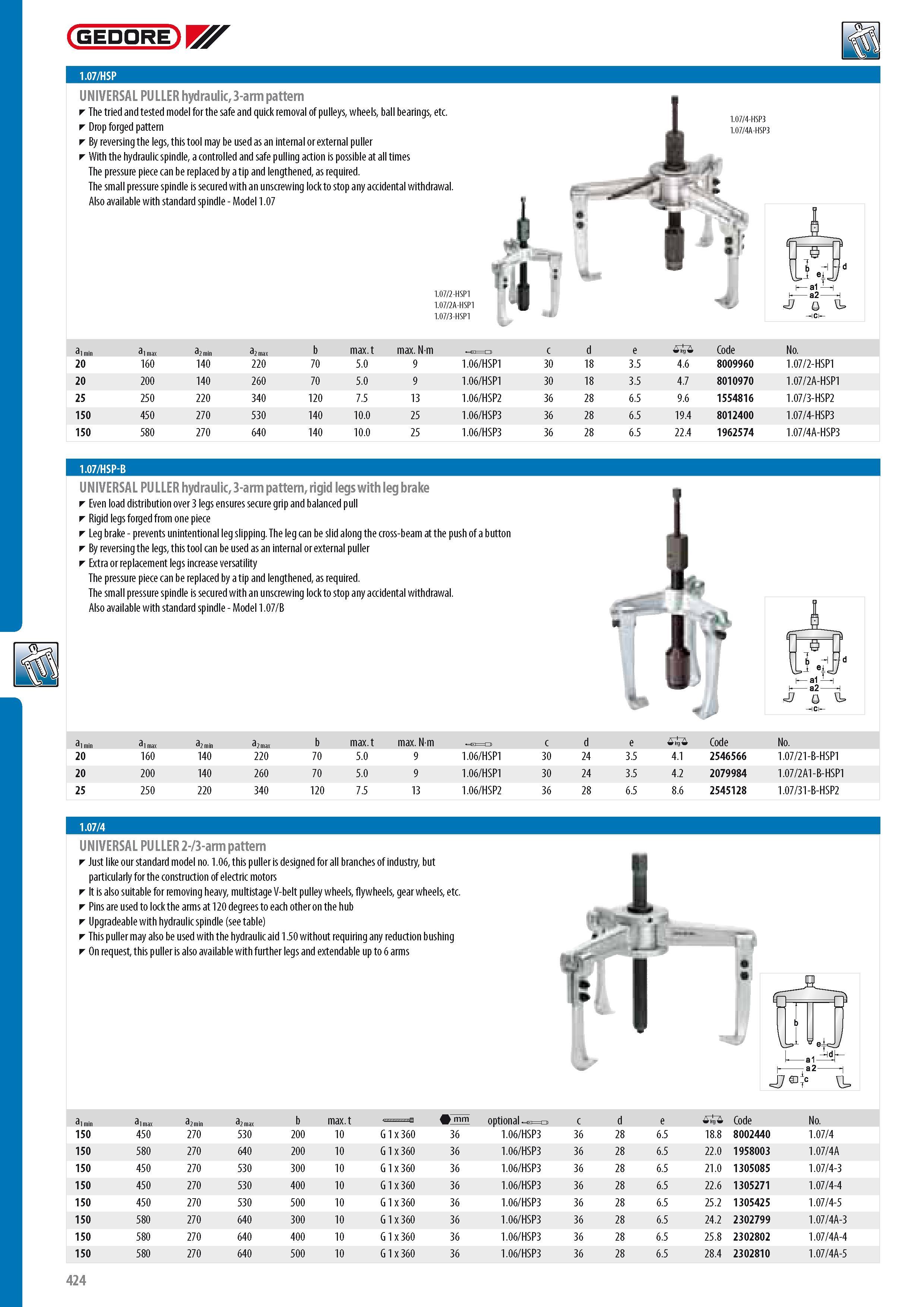

GEDORE UNIVERSAL PULLER hydraulic 3-arm pattern The tried and tested model for the safe and quick removal of pulleys wheels ball bearings etc. Drop forged pattern By reversing the legs this tool may be used as an internal or external puller With the hydraulic spindle a controlled and safe pulling action is possible at all times The pressure piece can be replaced by a tip and lengthened as required. The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal. Also available with standard spindle - Model 1.07 1.07 2-HSP1 1.07 2A-HSP1 1.07 3-HSP1 a1 min a1 max a2 min a2 max b max. max. Nm c d e -0 Code 20 160 140 220 70 5.0 9 1.06 HSP1 30 18 3.5 4.6 8009960 20 200 140 260 70 5.0 9 1.06 HSP1 30 18 3.5 4.7 8010970 25 250 220 340 120 7.5 13 1.06 HSP2 36 28 6.5 9.6 1554816 150 450 270 530 140 10.0 25 1.06 HSP3 36 28 6.5 19.4 8012400 150 580 270 640 140 10.0 25 1.06 HSP3 36 28 6.5 22.4 1962574 No. 1.07 2-HSP1 1.07 2A-HSP1 1.07 3-HSP2 1.07 4-HSP3 1.07 4A-HSP3 1.07 HSP-B UNIVERSAL PULLER hydraulic 3-arm pattern rigid legs with leg brake Even load distribution over 3 legs ensures secure grip and balanced pull Rigid legs forged from one piece Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button By reversing the legs this tool can be used as an internal or external puller Extra or replacement legs increase versatility The pressure piece can be replaced by a tip and lengthened as required. The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal. Also available with standard spindle - Model 1.07 B 5 I H i- vu I a1 - i V a2 H J7 0 -ICI 1 min a1 max a2 min a2 max b max. max. Nm c d e -0 Code No. 0 160 140 220 70 5.0 9 1.06 HSP1 30 24 3.5 4.1 2546566 1.07 21-B-HSP1 0 200 140 260 70 5.0 9 1.06 HSP1 30 24 3.5 4.2 2079984 1.07 2A1-B-HSP1 5 250 220 340 120 7.5 13 1.06 HSP2 36 28 6.5 8.6 2545128 1.07 31-B-HSP2 UNIVERSAL PULLER 2- 3-arm pattern Just like our standard model no. 1.06 this puller is designed for all branches of industry but particularly for the construction of electric motors It is also suitable for removing heavy multistage V-belt pulley wheels flywheels gearwheels etc. Pins are used to lock the arms at 120 degrees to each other on the hub Upgradeable with hydraulic spindle (see table) This puller may also be used with the hydraulic aid 1.50 without requiring any reduction bushing On request this puller is also available with further legs and extendable up to 6 arms a1 min a1 max a2 min a2 max b max. mm optional c d e 0 Code No. 150 415m0ax 227m0in 523m0ax 200 10 G 1 x 360 36 1.06 HSP3 36 28 6.5 18.8 8002440 1.07 4 150 580 270 640 200 10 G 1 x 360 36 1.06 HSP3 36 28 6.5 22.0 1 958003 1.07 4A 150 450 270 530 300 10 G 1 x 360 36 1.06 HSP3 36 28 6.5 21.0 1 305085 1.07 4-3 150 450 270 530 400 10 G 1 x 360 36 1.06 HSP3 36 28 6.5 22.6 1305271 1.07 4-4 150 450 270 530 500 10 G 1 x 360 36 1.06 HSP3 36 28 6.5 25.2 1 305425 1.07 4-5 150 580 270 640 300 10 G 1 x 360 36 1.06 HSP3 36 28 6.5 24.2 2302799 1.07 4A-3 150 580 270 640 400 10 G 1 x 360 36 1.06 HSP3 36 28 6.5 25.8 2302802 1.07 4A-4 150 580 270 640 500 10 G 1 x 360 36 1.06 HSP3 36 28 6.5 28.4 2302810 1.07 4A-5 1.07 HSP a1 1.07 4 424
